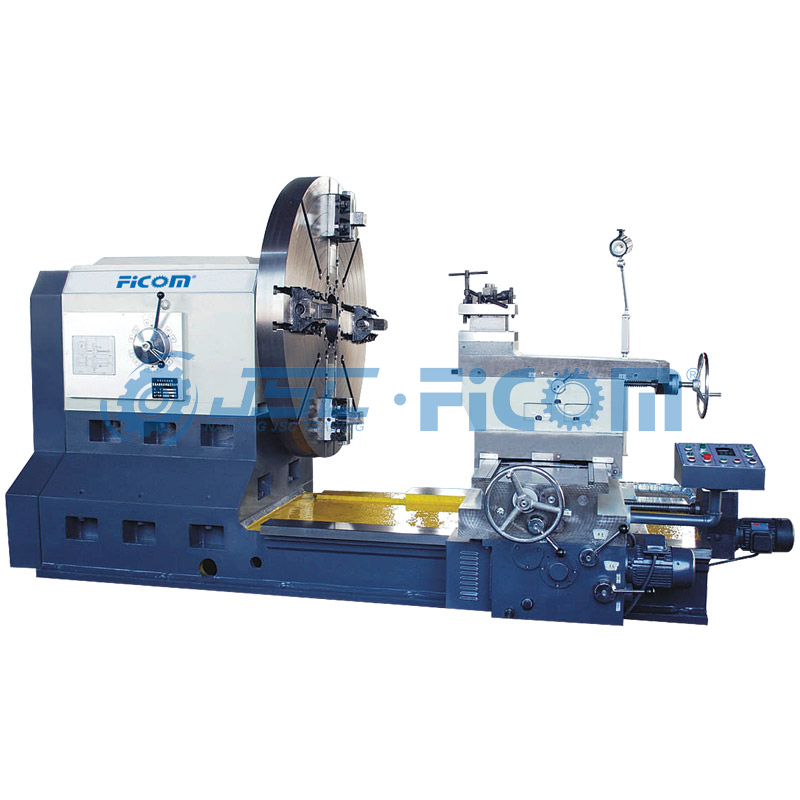

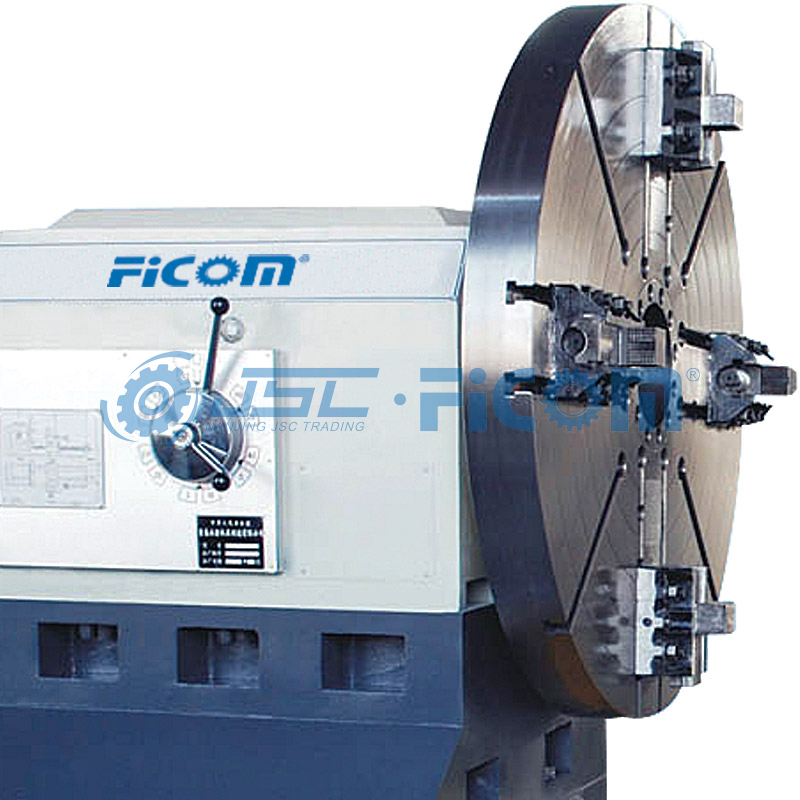

LF20
FICOM
| Model No. | LF16 | LF20 |
| max.swing diameter over bed | 1600mm | 2000mm |
| center height | 800mm | 1000mm |
| max.length of workpiece | 500mm/750mm/1200mm | 500mm/750mm/1200mm |
| max.weight of workpiece | 3000Kg | 3000Kg |
| chuck diameter | 1200mm/1400mm/1600mm | 1600mm/1800mm/2000mm |
| spindle bore diameter | 130mm | 130mm |
| taper hole diameter of spindle | metric 140 | metric 140 |
| size of tool bar | 50×50mm | 50×50mm |
| spindle speed increments | 12/21 | 12/21 |
| spindle speed range | 3.15-250/3.15-315r/min | 3.15-250/3.15-315r/min |
| feed increments of tool post | stepless | stepless |
| feed range of tool post | stepless | stepless |
| max.travel of tool post(Cross) | 850mm | 1050mm |
| max.travel of tool post(Longitudinal) | 400mm | 400mm |
| power of main motor | 11Kw | 15Kw |
| speed range of main motor | 960r/min | 960r/min |
| power of feed motor | 1.5Kw | 1.5Kw |
| overall dimensions | 3100×2100×1900mm | 3300×2400×2300mm |
| G.W. | 6500Kg | 8500Kg |
