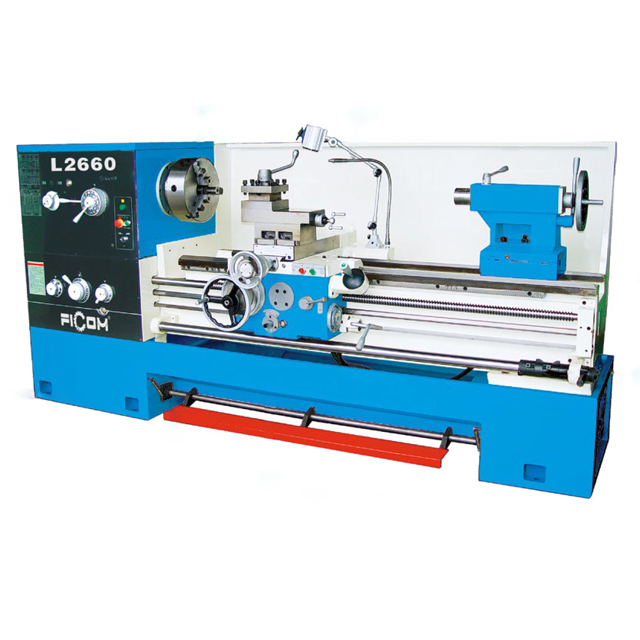

L26"
FICOM

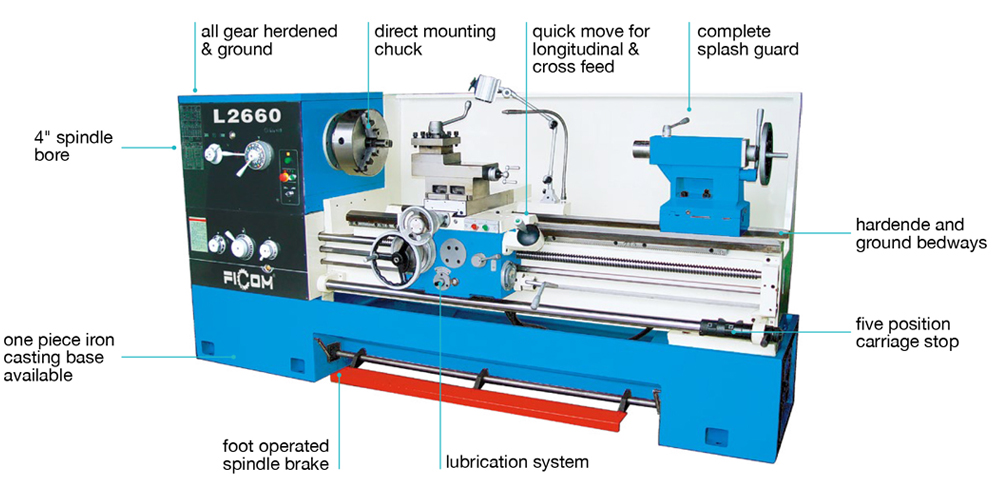

· The surface of the bedways is supersonic frequency hardened
· The spindle bore size is 105mm.the spindle system is high rigid and accuracy
· There is no need for change gears,the machine can turn about 89 kinds of metric,Inch,Module,and D.P.threads.
· An automatic stopping device is used to realize automatic stop for the machining of a workpiece of certain length.
· One-piece iron casting base allows heavier cuts.
| Model No. | L26" |
| distance between centers | 1000/1500/2000/3000mm (39.37"/59.06"/78.74"118.11") |
| swing over bed | 660mm(25.98") |
| swing over carriage | 420mm(16.54") |
| swing over gap | 870mm(34.25") |
| spindle bore | Ø105mm(4.13") |
| taper of spindle bore | Ø113mm(4.45")1:20 |
| spindle nose | D1-8 |
| step of spindle speeds | 12 |
| range of spindle speeds | 36-1600rpm |
| range of cross feeds | 0.027-1.07mm/r |
| range of longitudinal feeds | 0.063-2.52mm/r |
| range of inch threads/No. | 28-2T.P.I/26 |
| range of metric threads/No. | 1-14mm/22 |
| range of D.P. threads/No. | 4-56D.P./24 |
| range of mould threads/No. | 0.5-7mm/18 |
| rapid feed of cross traverse | 1.9m/min |
| rapid feed of longitudinal traverse | 4.5m/min |
| top slide travel | 145mm(5.71") |
| cross slide travel | 360mm(14.17") |
| max. size of tool(W×H) | 25×25mm(0.98"×0.98") |
| tailstock quill travel | 150mm(5.91") |
| tailstock quill diameter | 75mm(2.95") |
| taper of tailstock quill | MT5 |
| motor | 7.5Kw/11Kw available |
| packing size | 2500/3000/3500/4500×1100×1650mm |
| N.W. | 3200/3500/4000/4500Kg |
3 jaw chuck and adapter | 4 jaw chuck and adapter | face plate | steady rest |
| follow rest | oil gun | thread chasing dial | operation manual |
| one set of wrenches | 2 dead centers | sleeve | foot brake |
| coolant pump | halogen lamp | splash guard | micro carriage stop |
quick change tool post | driving plate | taper turning attachment | digital readout |
| Nr 12 standard for Brazil | one piece iron casting stand |
