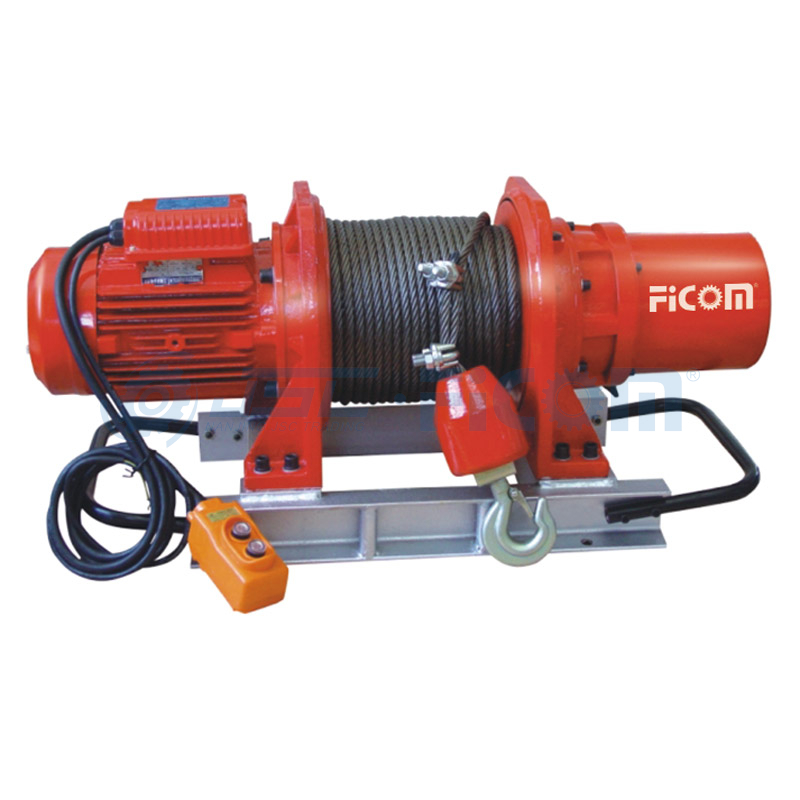

KDJ-500E1 / KDJ-750E1 / KDJ-1000E1 / KDJ-10000E1 Electric Windlass Series

·Drum transmission structure: it adopts 2-level gears decelerating transmission way. Coupling leads the drum turn directly. And it's very easy to replace rejected wire rope or change the rotation direction of wire rope.

·Wire rope fixing: add one PT screw on the drum, it's more safer than normal wire rope fixing. It can ensure no escape of wire rope from the drum.

Quantity:
  • KDJ-500E1 / KDJ-750E1 / KDJ-1000E1 / KDJ-10000E1
  • FICOM
Overview

· Brake mechanism: it adopts electromagnetism brake. Select wearable brake slice. It's very simple, no need to adjust the clearance. Brake will automatically apply in the event of power cut. It can control the drop distance of heavy load, safe and reliable.


· Gear box: made of ductile cast iron FCD-45# steel. Durable and nonbreakable.


· Speical motor: insulated B, with the features of big start torque, small inertia, lower temperature rise, it can work frequently for a long time.


· Driving gear: made of high-quality steel. Pass heat treatment and high precision process. It has the features of wearable, low noise, high driving efficiency and good performance.


· Machine fixture: standard channel steel welded. It's convenient used for building site, storage and port, etc.


KDJ-500E


Technical Parameters
Model Unit KDJ-500E1 KDJ-750E1 KDJ-1000E1
Load rated kg 500 750 1000
Speed m/min 13 13 13.5
Motor V 2.2×4 3×4 4×4
Voltage V Three phase 220/380/415/440/480
Frequency Hz 50/60
Lifting Height m 58
Cable Diameter mm φ9 φ9 φ11
Wire Rope Capacity m 60 60 60
N.W. kg 136 149 156
Work Level
M3 M3 M3


Dimensions in mm

KDJ-500E+

Model KDJ-500E1 KDJ-750E1 KDJ-1000E1
A 4-φ14 4-φ14 4-φ18
B 400 400 400
C 330 330 330
D 922 935 935
E 372 372 372
F 430 430 430
G 240 240 240
H φ140 φ140 φ140
