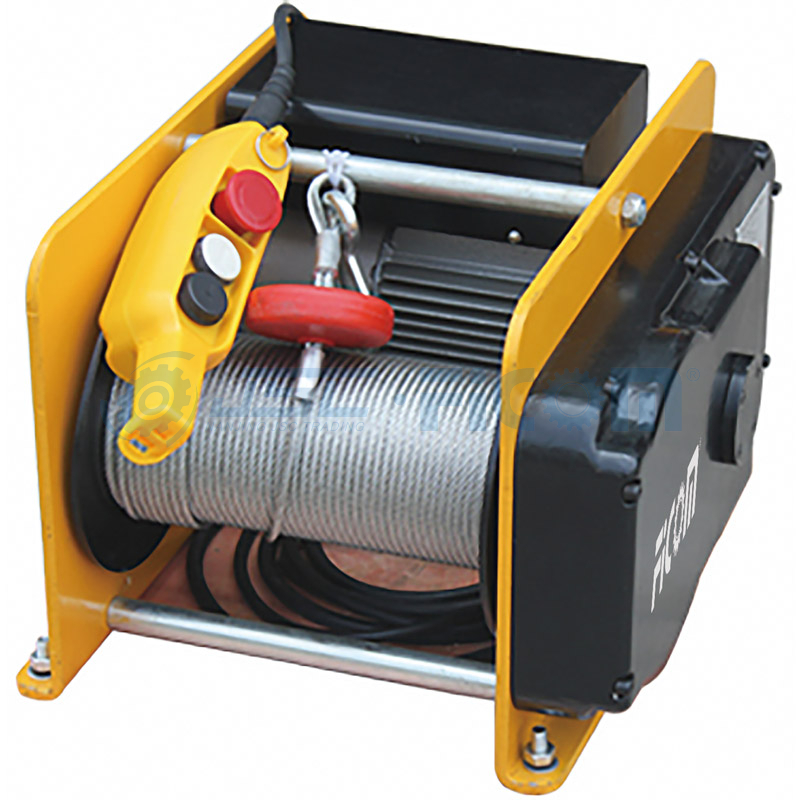

KDJ-250B / KDJ-500B / KDJ-250B1 / KDJ-500B1 Electric Windlass Series

·Drum transmission structure: it adopts 2-level gears decelerating transmission way. Coupling leads the drum turn directly. And it's very easy to replace rejected wire rope or change the rotation direction of wire rope.

·Wire rope fixing: add one PT screw on the drum, it's more safer than normal wire rope fixing. It can ensure no escape of wire rope from the drum.

Quantity:
  • KDJ-250B / KDJ-500B / KDJ-250B1 / KDJ-500B1
  • FICOM
Overview

· Brake mechanism: it adopts electromagnetism brake. Select wearable brake slice. It's very simple, no need to adjust the clearance. Brake will automatically apply in the event of power cut. It can control the drop distance of heavy load, safe and reliable.


· Speical motor: insulated B, three phase electromagnetics brake asynchronism motor or single phase capacitor running electromagnetics brake motor. with the features of big start torque, lower temperature rise, it can extend the life.


· Driving gear: made of high-quality steel. Pass heat treatment and high precision process. It has the features of wearable, low noise, high driving efficiency and good performance.


· Control system: handle switch is low voltage. IP65. safe and reliable.


KDJ-250B


Technical Parameters
Model Unit KDJ-250B KDJ-500B KDJ-250B1 KDJ-500B1
Rated Capacity k 250 500 250 500
Lifting Speed m/min 15 15 30 30
Rope mm 5 6 5 6
Motor Power kw 0.55 1.1 1.1 2.2
Voltage V 230V/50Hz 230V/50Hz 380V/50Hz 380V/50Hz
Lifting Height m 60 60 60 60
G.W./N.W. kg 70/66 111/107 70/66 111/107


Dimensions in mm

KDJ-250B+

Model KDJ-250B KDJ-500B KDJ-250B1 KDJ-500B1
A 436 520 436 4-φ10.5
B 295 480 295 480
C
240
240
D 83 122 83 122
d 13 15 13 15
E 380 415 380 415
F 265 270 265 270
G 322 338 322 338
G1 147 188 147 188
G2 305 372 305 372
M 345 370 345 370
t 8 10 8 10
