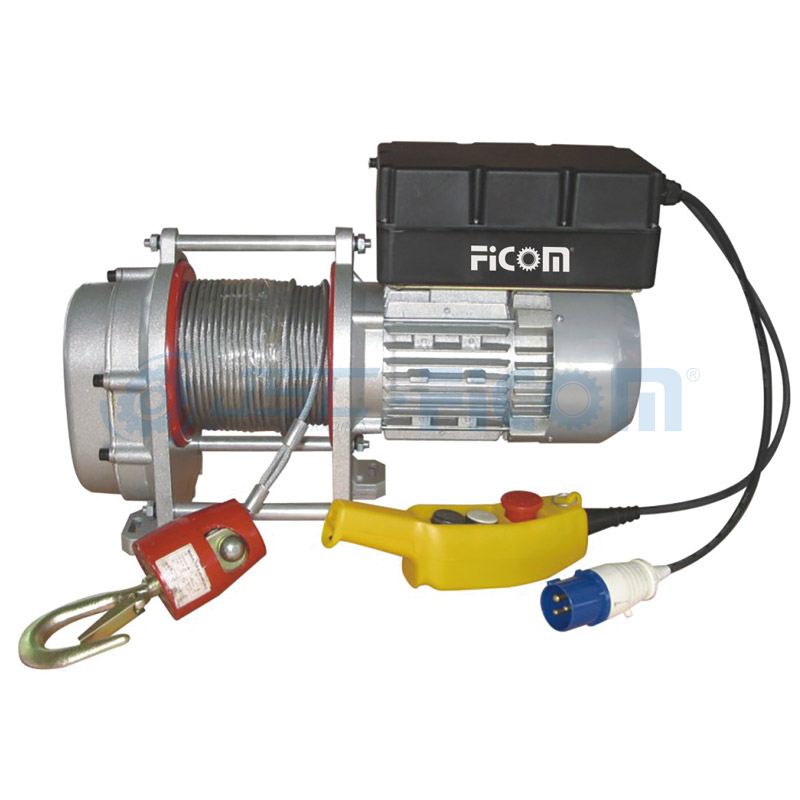

KDJ-200F-KDJ-400F / KDJ-200F1-KDJ-400F1 Electric Windlass Series

·Drum transmission structure: it adopts 2-level gears decelerating transmission way. Coupling leads the drum turn directly. And it's very easy to replace rejected wire rope or change the rotation direction of wire rope.

·Wire rope fixing: add one PT screw on the drum, it's more safer than normal wire rope fixing. It can ensure no escape of wire rope from the drum.

·Brake mechanism: it adopts electromagnetism brake. Select wearable brake slice. It's very simple, no need to adjust the clearance. Brake will automatically apply in the event of power cut. It can control the drop distance of heavy load, safe and reliable.

Quantity:
  • KDJ-200F-KDJ-400F / KDJ-200F1-KDJ-400F1
  • FICOM
Overview

· Speical motor: insulated B, three phase electromagnetics brake asynchronism motor or single phase capacitor running electromagnetics brake motor. with the features of big start torque, lower temperature rise, it can extend the life.

· Driving gear: made of high-quality steel. Pass heat treatment and high precision process. It has the features of wearable, low noise, high driving efficiency and good performance.

· Control system: handle switch is low voltage. IP65. safe and reliable.


KDJ-200F


Technical Parameters
Model Unit KDJ-200F KDJ-250F KDJ-300F KDJ-300F1 KDJ-400F1
Rated Capacity kg 200 250 300 300 400
Rate Speed m/min 10-15/12-18 10-15/12-18 10-15/12-18 10-15 12-18
Motor KW 0.6×4 0.75×4 1.1×4 1.1×4 1.5×4
Volt V AC100/110/120/220/230/240 Three phase 220/380/415/440/480
Frequency Hz 50/60 50/60 50/60 50/60 50/60
Lifting Height m 38 38 38 38 38
Cable Diameter mm φ6 φ6 φ6 φ6 φ6
N.W kg 40 44 53 52 55
Word Level
M3 M3 M3 M3 M3
