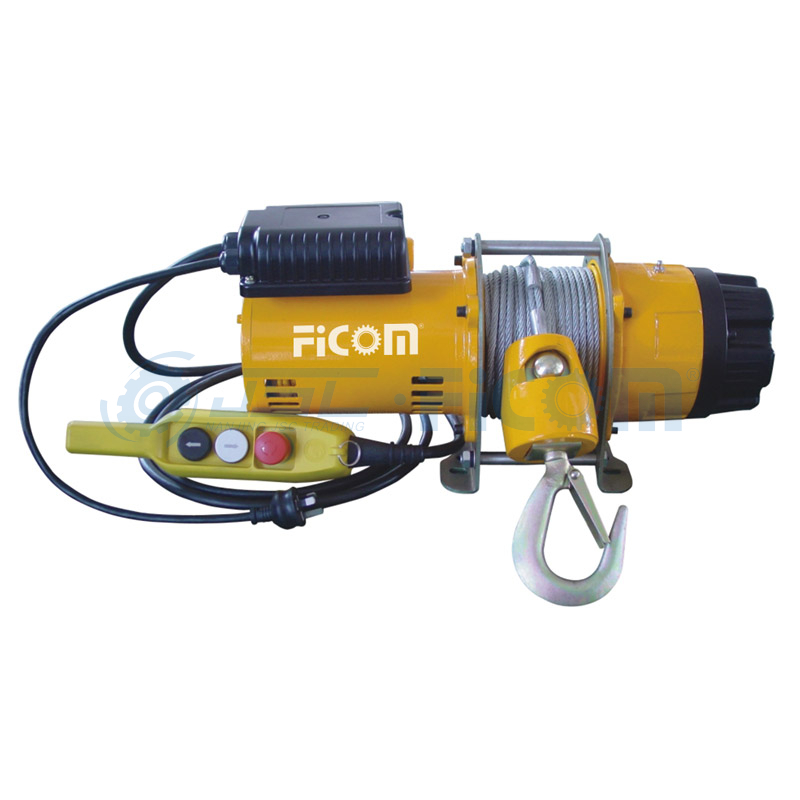

KDJ-200E / KDJ-250E / KDJ-300E / KDJ-300E1 Electric Windlass Series

·Drum transmission structure: it adopts 2-level gears decelerating transmission way. Coupling leads the drum turn directly. And it's very easy to replace rejected wire rope or change the rotation direction of wire rope.

·Wire rope fixing: add one PT screw on the drum, it's more safer than normal wire rope fixing. It can ensure no escape of wire rope from the drum.

·Brake mechanism: it adopts electromagnetism brake. Select wearable brake slice. It's very simple, no need to adjust the clearance. Brake will automatically apply in the event of power cut. It can control the drop distance of heavy load, safe and reliable.

Quantity:
  • KDJ-200E / KDJ-250E / KDJ-300E / KDJ-300E1
  • FICOM
Overview

· Gear box: made of ductile cast iron FCD-45# steel. Durable and nonbreakable.


· Speical motor: insulated B, with the features of big start torque, small inertia, lower temperature rise, it can work frequently for a long time.


· Driving gear: made of high-quality steel. Pass heat treatment and high precision process. It has the features of wearable, low noise, high driving efficiency and good performance.


· Machine fixture: standard channel steel welded. It's convenient used for building site, storage and port, etc.


KDJ-200E


Technical Parameters
Model Unit KDJ-200E KDJ-250E KDJ-300E KDJ-300E1
Load rated kg 200 250 300 300
Speed m/min 11 11 11 13
Motor KW 0.6×4 0.75×4 1.1×4 1.1×4
Voltage V AC 100/110/120 220/230/240

Three phas

 220/380

/415/440

/480

Frequency Hz 50/60 50/60 50/60 50/60
Lifting Height m 29 29 29 29
Cable Diameter mm φ6 φ6 φ7 φ6
Wire Rope Capacity m 30 30 30 30
N.W. kg 36 40 49 48
Work Level
M3 M3 M3 M3


Dimensions in mm

KDJ-200E4

Model KDJ-200E KDJ-250E KDJ-300E KDJ-300E1
A 4-φ10.5 4-φ10.5 4-φ10.5 4-φ10.5
B 142 142 172 172
C 142 142 142 142
D 510 525 540 548
E 210 210 210 210
F 246 246 246 246
G 108 108 133 133
H φ94 φ94 φ90 φ90
