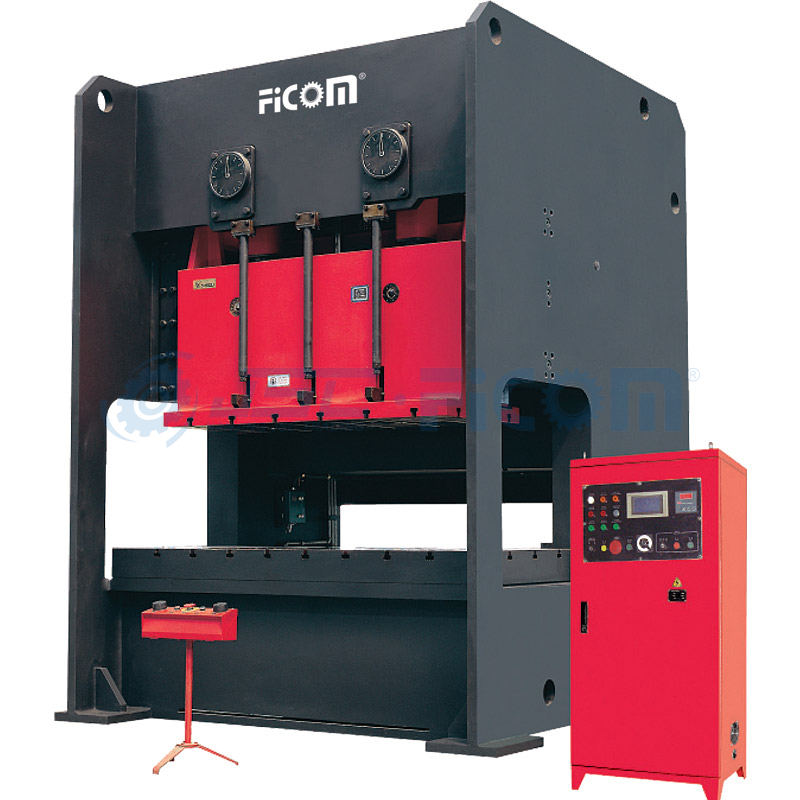

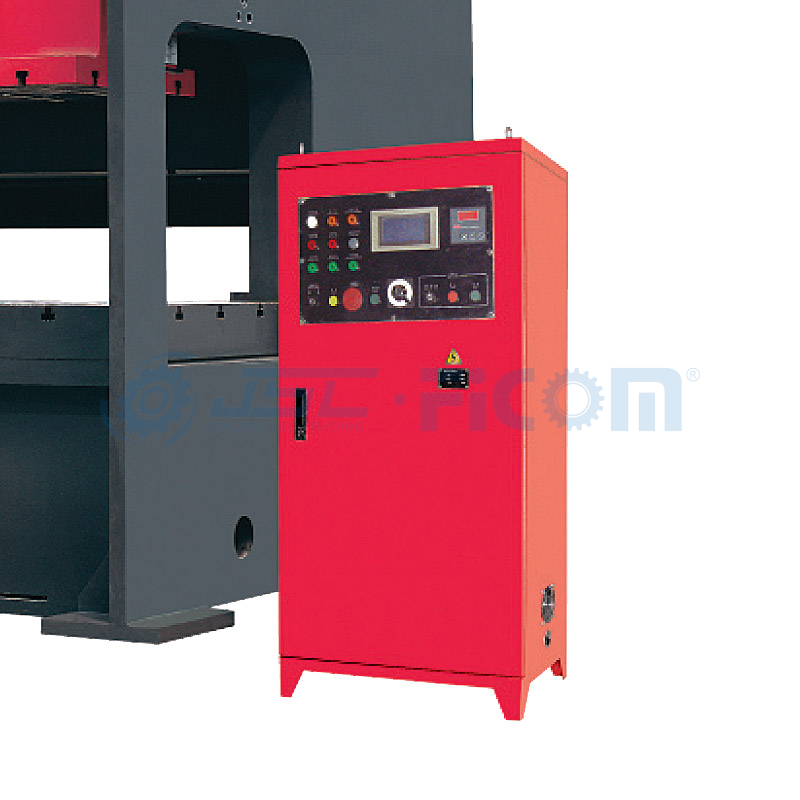

· Semi-straight side machine body wet pneumatic clutch for JY25 imported dry clutch for JHY25 hydraulic safety device
· JHY25 series adopts combined dry friction clutch and imported band brake with, fixed stroke, the other specifications are the same as JY25 series.
JY25-250
Model No. | Unit | JY25-80 JHY25-80 | JY25-110 JHY25-110 | JY25-160 JHY25-160 | JY25-200 JHY25-200 | JY25-250 JHY25-250 | JY25-315 JHY25-315 | JY25-400 JHY25-400 | |
nominal force | Kn | 800 | 1100 | 1600 | 2000 | 2500 | 3150 | 4000 | |
stroke under nominal force | mm | 5 | 5 | 6 | 7 | 7 | 8 | 8 | |
slide block stroke | mm | 160 | 180 | 200 | 250 | 280 | 280 | 280 | |
number of stroke | fixed | min-1 | 55 | 50 | 45 | 35 | 30 | 25 | 20 |
variable(optional) | min-1 | 40-75 | 35-65 | 30-55 | 25-45 | 20-35 | 20-30 | 18-25 | |
max die set height | mm | 350 | 400 | 450 | 500 | 550 | 550 | 600 | |
die set height adjustment | mm | 80 | 90 | 100 | 110 | 120 | 120 | 120 | |
worktable dimensions(F.B×L.R) | mm | 600×1400 | 680×1650 | 760×1850 | 840×2200 | 920×2400 | 940×2500 | 1000×2600 | |
thickness of bolster | mm | 110 | 130 | 150 | 170 | 180 | 190 | 200 | |
dimensions of slide block bottom(F.B×L.R) | mm | 460×1200 | 520×1360 | 580×1500 | 650×1850 | 700×2100 | 700×2100 | 800×2200 | |
size of the handle hole(diameter×depth) | mm | 3-φ60×60 | 3-φ60×70 | 3-φ60×75 | 3-φ60×85 | 3-φ60×95 | 3-φ60×95 | 3-φ60×95 | |
distance between columns and body | mm | 1300 | 1550 | 1720 | 2020 | 2340 | 2400 | 2580 | |
dimension of side hole(F.B) | mm | 620 | 700 | 780 | 860 | 940 | 960 | 1020 | |
main motor power | Kw | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
outline dimension(F.B×L.R×H) | mm | 2320×1850 ×3100 | 2440×2320 ×3260 | 2760×2440 ×3580 | 2920×2680 ×3980 | 3170×2980 ×4320 | 3710×3030 ×4470 | 3710×3210 ×4970 | |
G.W. | Kg | 14500 | 18300 | 27500 | 32800 | 43500 | 51300 | 58500 |
