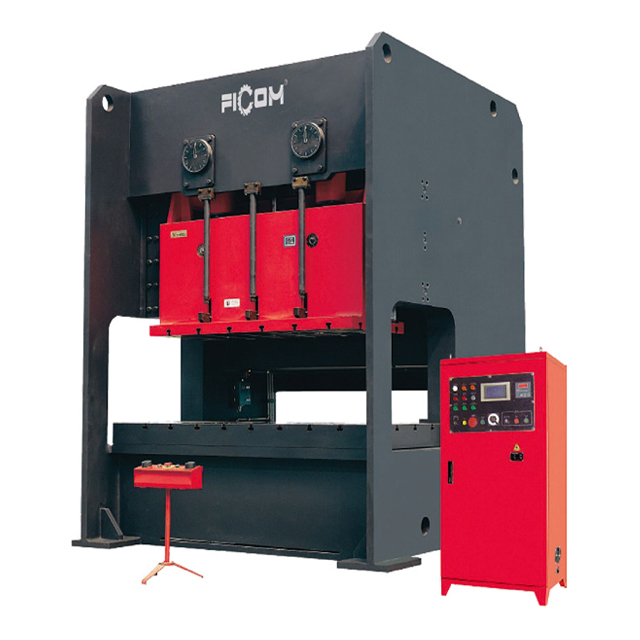

JY25/JHY25 Series Semi-straight Side High Performance Double-point Press

Welded Steel plate framework, specially treated and formed a D shape hole from C shape to have high intensity and rigidity.
Double crankshaft pitmen totally eliminating side forces by reverse rotation.
Combined wet multi discs friction clutch and brake.
Hydraulic overload protecting device.
Six-face rectangle lengthen guide.
Electric shut height adjustment with digital display.
Lifting balance cylinder device.
duplex valves imported from Japan.
Concentrated control by PLC of international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are used international brand.
Equipped with optional air cushion device, photoelectric protector, which can be used to work with various automatic equipments.
Availability:
Quantity:
  • JY25/JHY25

  • FICOM

Overview


Semi-straight side machine body wet pneumatic clutch for JY25 imported dry clutch for JHY25 hydraulic safety device.

JHY25 series adopts combined dry friction clutch and imported band brake with, fixed stroke, the other specifications are the same as JY25 series.

-1

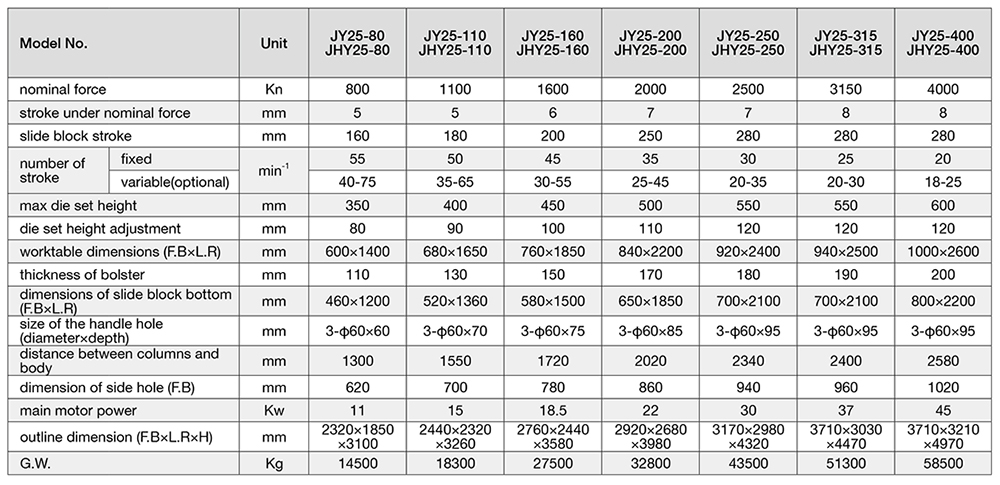

Technical Parameters

B
