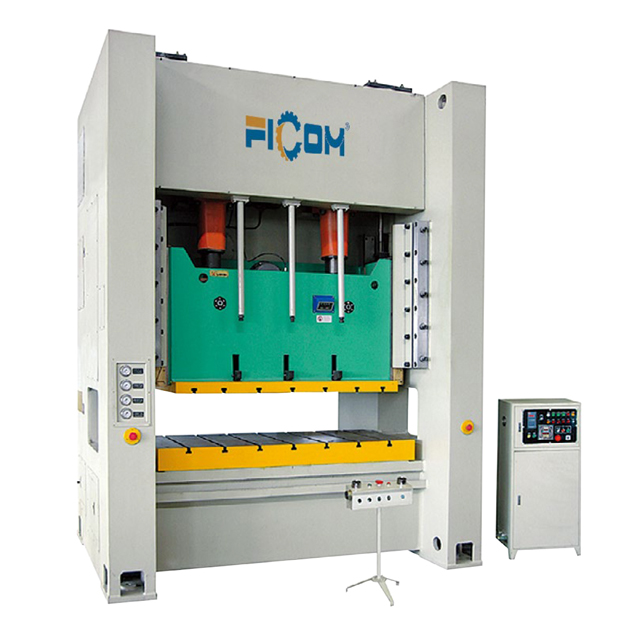

JM36/JMD36 Series Gantry Type Double-point Press with High Performance

Welded Steel plate framework with high intensity of machine body.
Double crankshaft pitmen totally eliminating side forces by reverse rotation.
Combined wet multi discs friction clutch and brake, dry type friction clutch and brake is optional.
Equipped with hydraulic overload protecting device.
Availability:
Quantity:
  • JM36/JMD36

  • FICOM

Overview

Eight-side lengthened guide with high precision.

Electric shut height adjustment with digital display.

Equipped with lifting balance cylinder.

Duplex valves imported from Japan.

Electric compelling grease lubrication system.

Controlled by PLC of international brand.

Buttons, indicators, AC contactors, air circuit breakers and other

controlling devices are used international brand.

Electronic cam device with intelligent top dead center stop

function and several safety function.

Optional air cushion device, NC feeding machine, light curtain

and inverter of international brand to fulfill stroke adjustment.

JMD36 series equipped with multi pitmen framework, suitable for

flat stretching.


-1

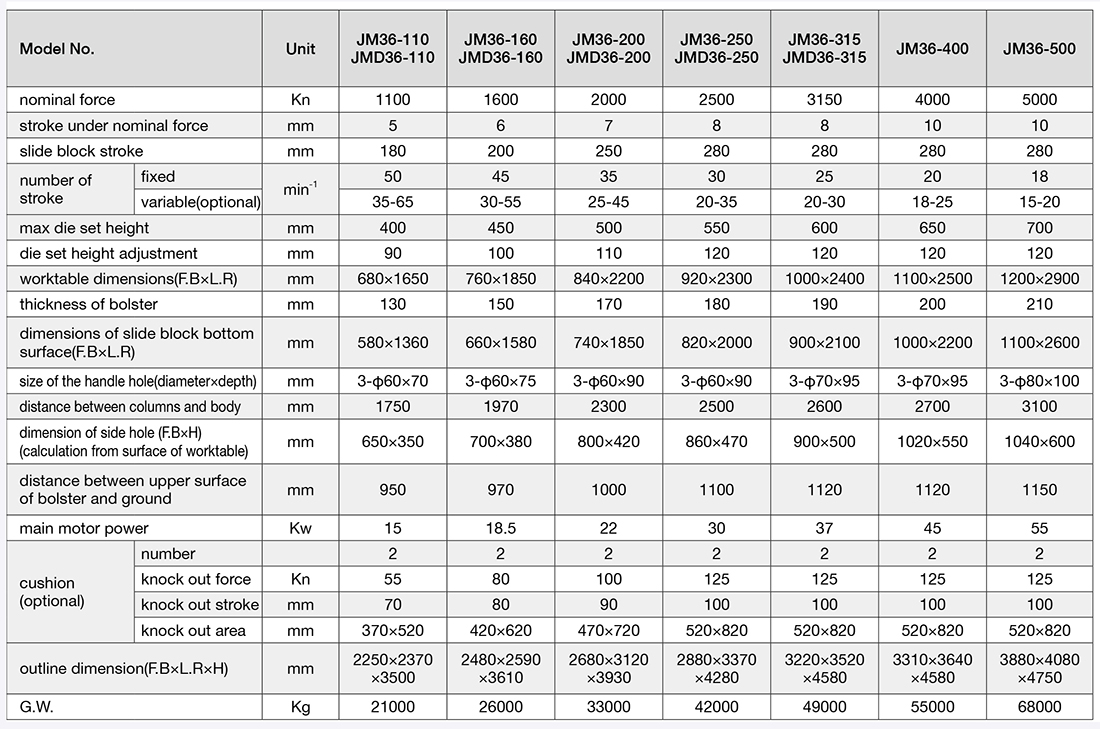

Technical Parameters

B
