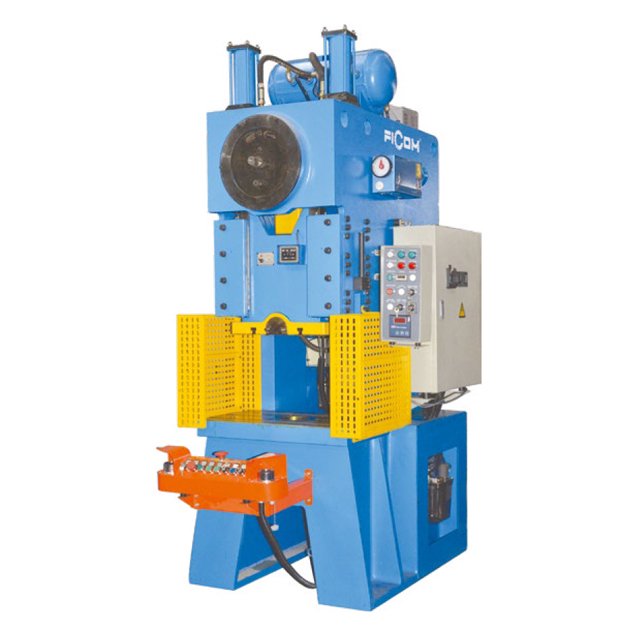

JL21 Series Open Back Fixed Table Press of Adjustable Stroke

Steel-welded frame,high rigidyty and less deformation,ensuring the capactity for bearing heavy load.
Adjustable stroke of slide in 8 years,to meet the punch processing for various dies.
Eight-side long rectangle guides of the slide in high moving precision and high accuracy,extending the service life of the die.
Pneumatic combination dry-friction clutch,low noise,and long service life,to ensure reliable safety and flexible action.
Automatic oil lubrcation system,to ensure smooth operation.
Hydraulic overload protection device achieving high sensitivity in effectively protecting against overload,to ensure convenient and reliable operation.
Automatic adjustment of the die set height marked by convenient operation(except25T).
PLC electrical control system allows various auto-equipment reprogrammed according to different requirements and perform various functions,to ensure high reliability and high adaptability.
Emergent stop.inching,single and continuous movement.
