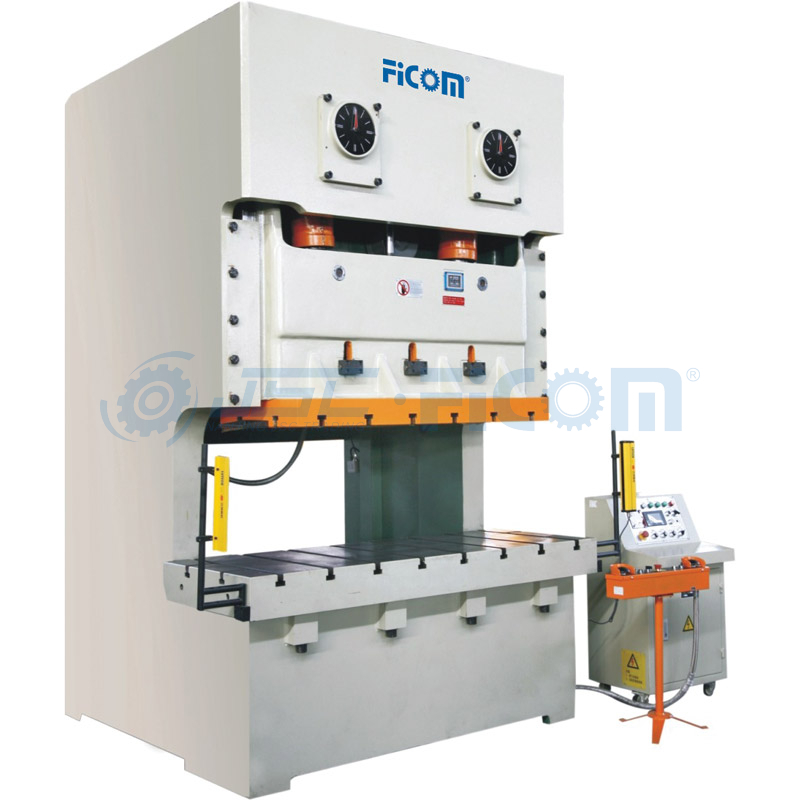

JH25 Series Open Back Press with WET Clutch and Hydraulic Overload Protector

· Welded body with steel plate and high intensity.
· Suitable for multiple dies automatic line and multi level dies continuous punching.
· Double crankshaft pitmen totally eliminating side forces by reverse rotation.
· Combined wet multi discs friction clutch and brake.
· Cluster gear adopts the flooding oil lubrication.
· Six-face rectangle lengthen guide.
· Adopts electric die height adjustment with digital display.
· Equipped with hydraulic overload protecting device.
Availability:
  • JH25

  • FICOM

Overview

JH25-160


Technical Parameters
Model No. Unit JH25-110 JH25-160 JH25-200 JH25-250
nominal pressure on sliding block  Pe Kn 1100 1600 2000 2500
nominal pressure stroke Sp mm 5 6 7 7
slide stroke mm 180 200 250 280
stroke frequency Times/min 35~65
30~55 25~45 20~35
die height mm 400 450 500 550
die height adjustment mm 90 100 110 120
distance between slider center and machine mm 350 390 430 470
slider bottom size F to B mm 520 580 650 700
L to R mm 1360 1500 1850 2100
size of worktable F to B mm 680 760 840 920
L to R mm 1880 2040 2420 2700
thickness of worktable mm 155 165 170 180
worktable height mm 900 900 1000 1000
size F to B mm 2045 2390 2720 2920
L to R mm 1945 2040 2420 2700
H mm 3095 3710 3800 4185
power of electric motor Kw 15 18.5 22 30
G.W. Kg 14000 20000 28000 36000


Standard Accessories
wet clutch hydraulic overload protecting pump PLC touch screen
auto lubrication system manual lubrication system die height adjusted motor cam controller
rotary encoder movable control panel electronic crankshaft angle indicator digital die height indicator
balance cylinders for slide and upper die joint for air joint for miss-feeding foundation bolts


Optional Accessories
light curtain foot pedal die cushion absorbing pads
auto feed shaft inverter die quick change device
