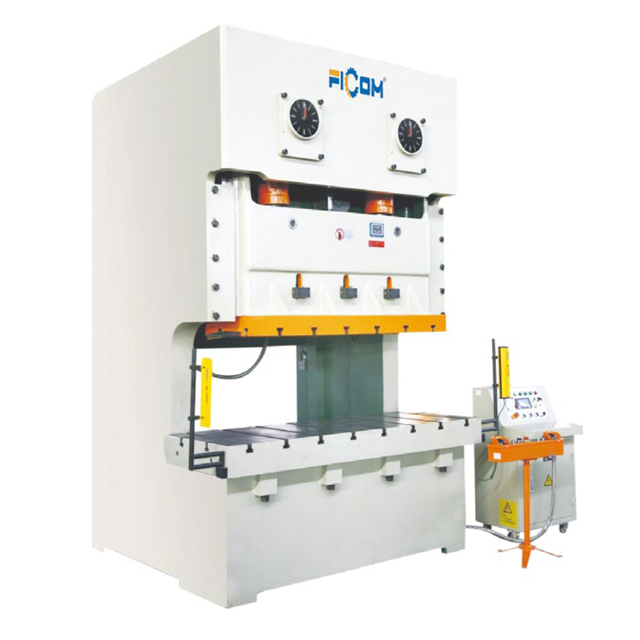

JH25 Series Open Back Press with WET Clutch and Hydraulic Overload Protector

· Welded body with steel plate and high intensity.
· Suitable for multiple dies automatic line and multi level dies continuous punching.
· Double crankshaft pitmen totally eliminating side forces by reverse rotation.
· Combined wet multi discs friction clutch and brake.
· Cluster gear adopts the flooding oil lubrication.
· Six-face rectangle lengthen guide.
· Adopts electric die height adjustment with digital display.
· Equipped with hydraulic overload protecting device.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH25
Brand:
FICOM

Product Description

Overview

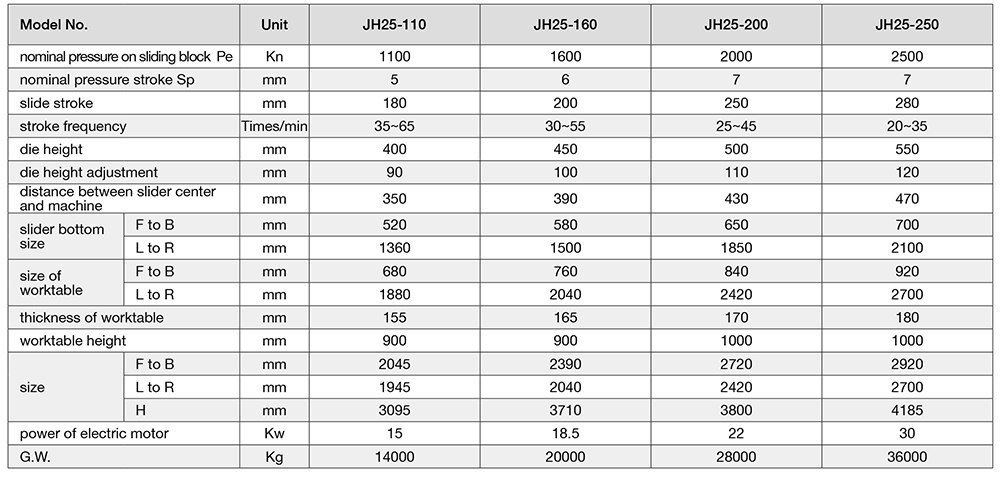

Technical Parameters

Standard Accessories

wet clutch	hydraulic overload protecting pump	PLC	touch screen
auto lubrication system	manual lubrication system	die height adjusted motor	cam controller
rotary encoder	movable control panel	electronic crankshaft angle indicator	digital die height indicator
balance cylinders for slide and upper die	joint for air	joint for miss-feeding	foundation bolts

Optional Accessories

light curtain	foot pedal	die cushion	absorbing pads
auto feed shaft	inverter	die quick change device
