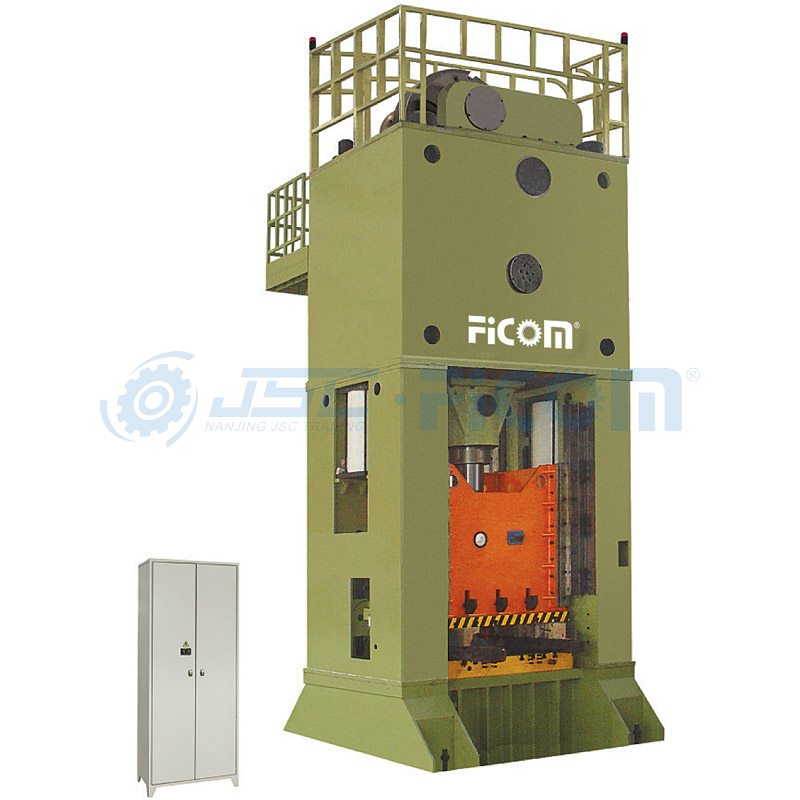

JC31/JD31
FICOM
· JC31 series does not have guiding column and sleeves, JD31 series adopts guiding column and sleeves.
· JC31 adopts automatic grease lubrication system with regular time and capacity.
· JD31 adopts automatic oil lubrication system with regular time and capacity.
· Controlled by PLC of international brand.
· Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are used international brand.
· Double loop control air cushion and light curtain device.
· Equipped optional air cushion and light curtain device.
· The height in the technical parameters only confirmed to JD31 series.
JD31-630
| Model No. | Unit | Single-POINtT | ||||
JC31-250 | JC31-315 | JC31-400 | JC31-500 | |||
| nominal force | Kn | 2500 | 3150 | 4000 | 5000 | |
| stroke under nominal force | mm | 11 | 11 | 11 | 13 | |
| slide block stroke | mm | 315 | 315 | 400 | 400 | |
| number of stroke | min-1 | 20 | 19 | 17 | 16 | |
| max die set height | mm | 500 | 500 | 600 | 600 | |
| die set height adjustment | mm | 200 | 200 | 250 | 250 | |
| worktable dimensions(F.B×L.R) | mm | 950×1000 ×140 | 1100×1100 ×160 | 1200×1240 ×180 | 1400×1500 ×200 | |
| dimensions of slide block bottom surface(F.B×L.R) | mm | 850×960 | 1000×1000 | 1100×1240 | 1300×1490 | |
| stroke of materials to be punched(rigid) | mm | 100 | 100 | 150 | 120 | |
| distance between gibs | mm | 810 | 990 | 1200 | 1340 | |
cushion (optional) | pressing/ejection force | Kn | 250/250 | 300/300 | 400/400 | 400/400 |
| stroke | mm | 150 | 150 | 150 | 150 | |
| number | 1 | 1 | 1 | 1 | ||
| dimension(FB(front/back)×RL(right/left)×height above floor) | mm | 2070×2270 ×5800 | 2500×3700 ×6200 | 2650×3900 ×6800 | 2800×4200 ×7000 | |
| G.W. | T | 32 | 36 | 62 | 80 | |
| main motor power | Kw | 30 | 37 | 55 | 55 | |
| Model No. | Unit | Single-POINtT | |||||
JD31-250 | JD31-400 | JD31-500 | JD31-630 | JD31-800 | |||
| nominal force | Kn | 2500 | 4000 | 5000 | 6300 | 8000 | |
| stroke under nominal force | mm | 11 | 11 | 13 | 13 | 13 | |
| slide block stroke | mm | 315 | 400 | 400 | 400 | 500 | |
| number of stroke | min-1 | 20 | 17 | 12 | 12 | 10 | |
| max die set height | mm | 500 | 600 | 700 | 700 | 800 | |
| die set height adjustment | mm | 200 | 250 | 250 | 250 | 315 | |
| worktable dimensions(F.B×L.R) | mm | 1100×1100 ×140 | 1200×1240 ×180 | 1400×1500 ×190 | 1500×1700 ×200 | 1600×1900 ×210 | |
| dimensions of slide block bottom surface(F.B×L.R) | mm | 850×960 | 1100×1240 | 1350×1500 | 1400×1680 | 1500×1800 | |
| stroke of materials to be punched(rigid) | mm | 100 | 150 | 150 | 150 | 200 | |
| distance between gibs | mm | 810 | 1200 | 1520 | 1720 | 1920 | |
cushion (optional) | pressing/ejection force | Kn | 250/250 | 400/400 | 500/500 | 500/500 | 800/800 |
| stroke | mm | 150 | 150 | 200 | 200 | 250 | |
| number | 1 | 1 | 1 | 1 | |||
| dimension(FB(front/back)×RL(right/left)×height above floor) | mm | 3500×4200 ×6050 | 2450×3900 ×6800 | 3000×3650 ×7100 | 3350×3950 ×7650 | 3270×4350 ×8300 | |
| G.W. | T | 33 | 62 | 80 | 90 | 125 | |
| main motor power | Kw | 30 | 55 | 55 | 75 | 75 | |
