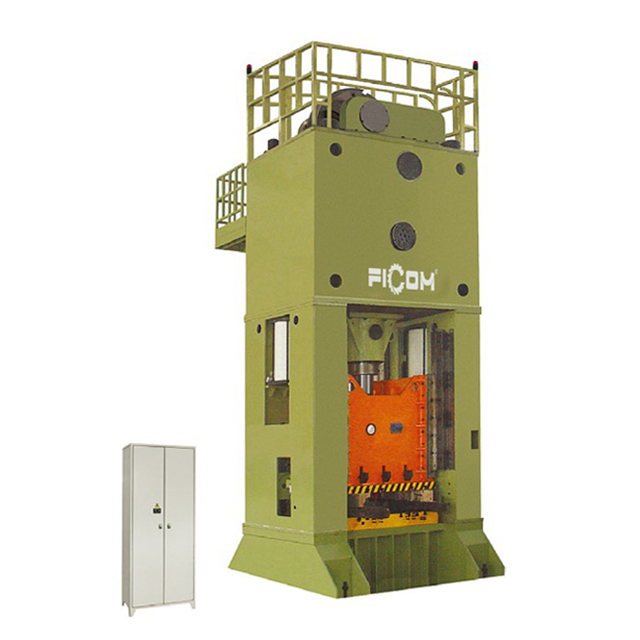

JC31/JD31 Series Straight Side Type Single-point Press

Welded Steel plate framework with cross beam, columm and the base tightened and combined into one body by taut bolts.
Pneumatic friction clutch and brake.
Equipped with hydraulic overload protecting device.
The whole machine can meet complicated structured material’s producing requirement by reasonable structure and pretty a ppearance.
Availability:
Quantity:
  • JC31/JD31

  • FICOM

Overview

· JC31 series does not have guiding column and sleeves, JD31 series adopts guiding column and sleeves.

· JC31 adopts automatic grease lubrication system with regular time and capacity.

· JD31 adopts automatic oil lubrication system with regular time and capacity.

· Controlled by PLC of international brand.

· Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are used international brand.

· Double loop control air cushion and light curtain device.

· Equipped optional air cushion and light curtain device.

· The height in the technical parameters only confirmed to JD31 series.



-1

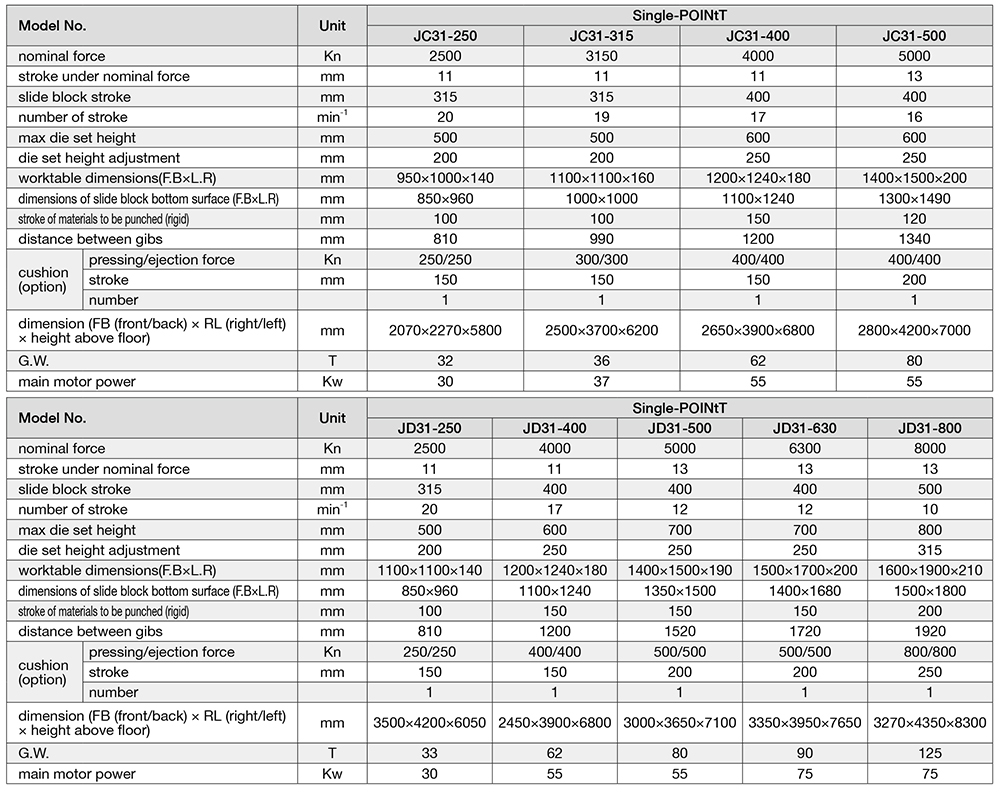

Technical Parameters


B
