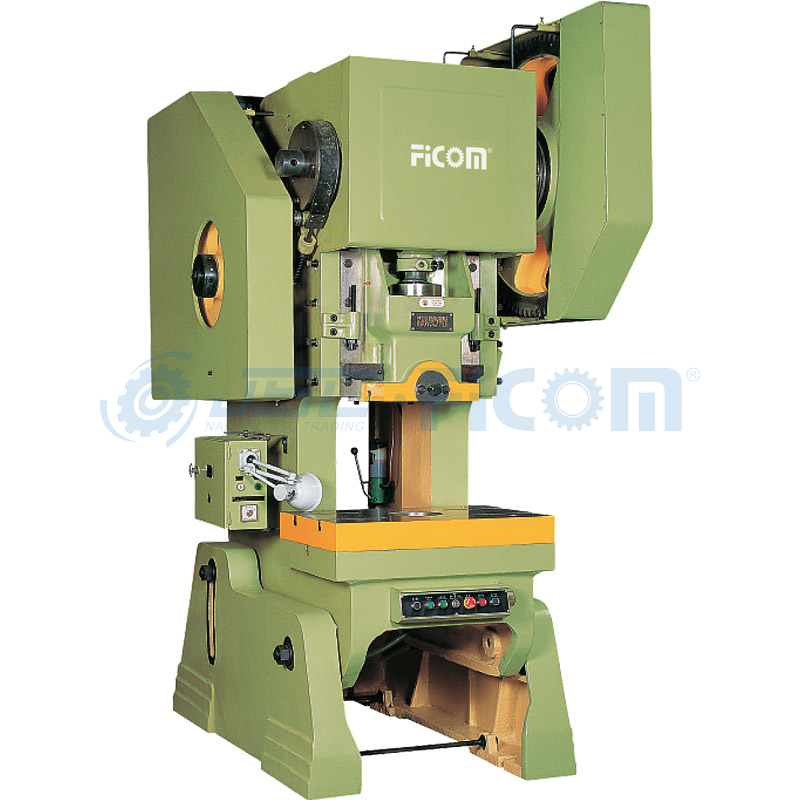

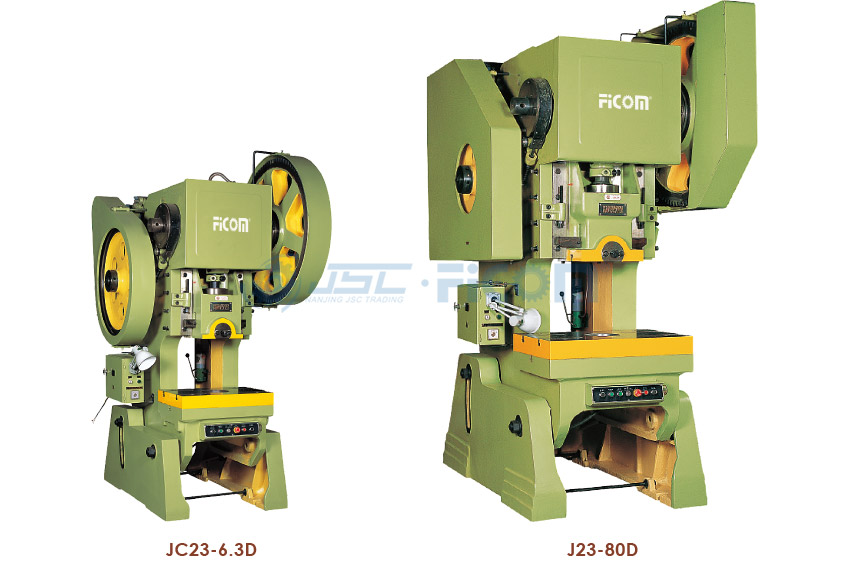

J23
FICOM
| Model No. | Unit | JC23-6.3D | J23-10D | J23-16D | J23-25D | JG23-40D | JC23-63D | J23-80D | |
| nominal force | Kn | 63 | 100 | 160 | 250 | 400 | 630 | 800 | |
| stroke under nominal force | mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 | |
| slide block stroke | mm | 0-40 | 0-60 | 0-70 | 0-80 | 20-120 | 20-120 | 10-130 | |
| number of stroke | min-1 | 170 | 145 | 125 | 60 | 55 | 50 | 45 | |
| max die set height | mm | 105 | 130 | 170 | 180 | 220 | 260 | 280 | |
| die set height adjustment | mm | 20 | 35 | 30 | 45 | 70 | 80 | 80 | |
| distance from slide block centre to the frame | mm | 110 | 130 | 170 | 210 | 260 | 260 | 270 | |
| worktable dimensions(F . B×L . R) | mm | 200×310 | 240×360 | 320×480 | 400×600 | 480×710 | 480×710 | 520×860 | |
| dimensions of worktable hole | mm | φ60 | φ120×20 ×φ100 | φ100 | φ120 | φ220×25 ×φ180 | φ200×45 ×φ180 | φ200×45 ×φ180 | |
| thickness of bolster | mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |
| hole dimensions in bed(diameter×F . B×L . R) | mm | φ140×110× 160 | φ130×90× 180 | φ210×160× 240 | φ180×130× 260 | φ200×150× 300 | φ250×200× 340 | φ250×200× 340 | |
| dimensions of slide block bottom(F . B×L . R) | mm | 120×140 | 150×170 | 180×200 | 210×250 | 270×320 | 280×320 | 280×380 | |
| size of the handle hole(diameter×depth) | mm | φ30×55 | φ30×55 | φ40×60 | φ40×70 | φ50×70 | φ50×80 | φ60×75 | |
| max. tilting angle of body | ° | 30° | 25° | 25° | 25° | 25° | 25° | 20° | |
| distance between columns and body | mm | 150 | 180 | 220 | 260 | 300 | 350 | 410 | |
| motor | type | Kw | Y2-90S-6 | Y2-90L-6 | Y2-100L-6 | Y2-100L1-4 | Y2-132M1-6 | Y2-132M2-6 | Y2-160M-6 |
| power | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | ||
| outline dimension(F . B×L . R×H) | mm | 780×610× 1505 | 915×700× 1690 | 1150×900× 1910 | 1325×990× 2140 | 1600×1180× 2310 | 1810×1350× 2640 | 1810×1410× 2790 | |
| N.W./G.W. | Kg | 360/510 | 600/790 | 1080/1405 | 1900/2300 | 3180/3580 | 4200/4700 | 5280/5780 | |
