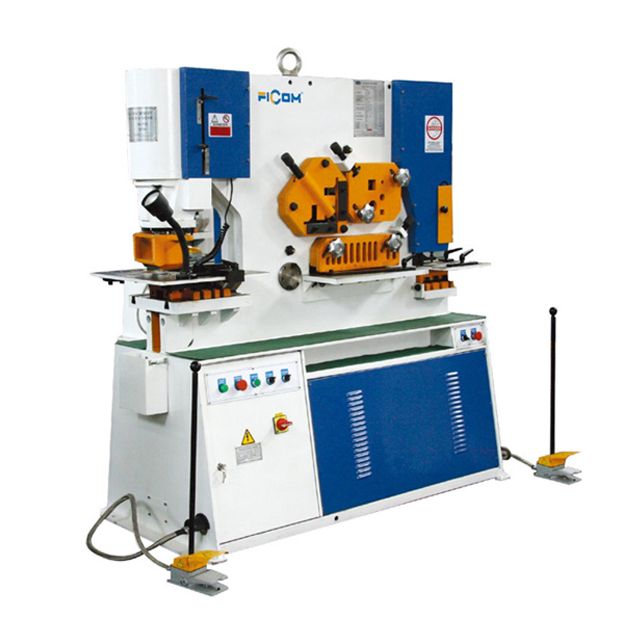

IW Series Hydraulic Iron Worker

· IW series Iron Worker can cut and punch all kinds of meterials such as plate, square bar,angle, round bar, channel and so on. Also it can also bend the plate below 500mm, with its multifunction, the machine is your first choice among the counterpart machine.
· All the components are of the highest quality in their safety, function, capability and maintenance.
Availability:
Quantity:
  • IW

  • FICOM

Overview

-1

Technical Parameters
Model No. IW66 IW90 IW120 IW160
working pressure 550Kn 750Kn 1100Kn 1400Kn
max. cutting thickness 16mm 20mm 25mm 26mm
max. cutting length 400mm 480mm 600mm 600mm
tensile strength of sheet metal ≤450N/mm2 ≤450N/mm2 ≤450N/mm2 ≤450N/mm2
shear angle
stroke of ram 80mm 80mm 80mm 80mm
stroke times 8min 8min 8min 8min
depth of throat 300mm 355mm 400mm 600mm
max. capacities 25×16mm 30×20mm 35×25mm 38×26mm
main motor power 4Kw 5.5Kw 7.5Kw 11Kw
length of machine 1640mm 1860mm 2355mm 2680mm
width of machine
730mm 790mm 960mm 1040mm
height of machine
1770mm 1900mm 2090mm 2300mm
G.W.
1700Kg 2200Kg 4800Kg 6200Kg


* A special order for the I-bar, T-bar and channel moulds needed

profile round
bar
square
bar
equal angle T-bar I-bar channel

90°

shearing

45°

shearing

90°

shearing

45°

shearing

section
view
IW001 IW002 IW003 IW004 IW005 IW006
Q35Y-16 45 40×40 125×125×12 50×50×5 120×120×12 60×60×8 126×74×5 126×53×5.5
Q35Y-20 50 50×50 140×140×12 50×50×5 140×140×12 70×70×10 160×86×6 160×60×6.5
Q35Y-25 60 50×50 160×160×14 60×60×6 160×160×14 80×80×10 200×102×9 200×75×9
Q35Y-30 65 55×55 180×180×16 60×60×6 180×180×16 80×80×10 280×124×10.5 280×86×11.5
