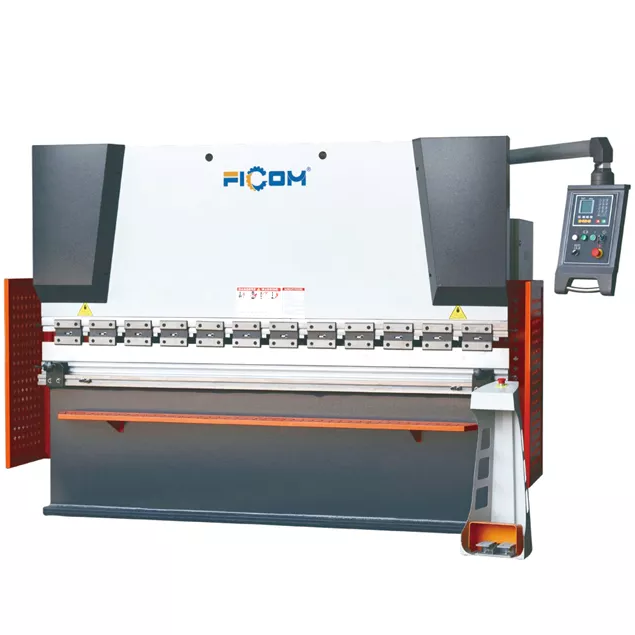

Hydraulic Press Brake with Programmable Back Gauge: Precision Bending for Complex Tasks

Introduction to Programmable Hydraulic Press Brakes

Hydraulic press brakes with programmable back gauges are vital tools for modern metal fabrication, enabling precise and efficient control over bending operations. The programmable gauge automates material positioning, ensuring accurate, repeatable results with minimal manual adjustment.

Programmable Back Gauge – Engineered for Repeatable Precision

The programmable back gauge system allows operators to define and control material positioning before each bend. These systems often include multiple movement axes for complex operations:

X Axis (Depth): Controls how far the sheet is fed into the machine.

R Axis (Height): Adjusts the vertical position of gauge fingers for step bends.

Z1/Z2 Axes (Side Motion): Move the gauge fingers laterally for asymmetrical or large parts.

With high-precision servo control and ball screw drives, these systems typically achieve a positioning tolerance of ±0.01 mm—ideal for applications that demand accuracy.

Key Benefits of Programmable Back Gauge Technology

Shorter Setup Time

Operators can pre-program bending sequences, allowing rapid setup with automatic gauge positioning and tool change guidance.

High Repeatability

Once a job is stored in the system, it can be recalled instantly, reducing human error and ensuring consistent results across large batches.

Ideal for Flexible Production

Programmable systems allow easy switching between part types—critical for custom metalwork or small-batch manufacturing.

Integration with Material Handling and Safety Systems

Hydraulic press brakes with programmable gauges often include crowning systems, light curtains, and support tables, enhancing overall performance:

Accurate bending on long sheets using hydraulic crowning.

Automatic stop detection via integrated safety systems.

Smooth feeding with ball or brush-type support tables.

These machines are also compatible with robotic handling systems for automated workflows.

User-Friendly Control and Operation

Modern press brakes use intelligent touchscreen controllers to manage bending sequences, visualize part geometry, and simulate bending operations in 2D or 3D. Operators can:

Store hundreds of job files.

Automatically calculate bend angles, positions, and pressures.

Connect to external networks for file import/export.

This greatly simplifies workflow management and reduces training requirements.

Industrial Applications of Hydraulic Press Brakes with Programmable Back Gauge

Aerospace and Defense

Parts requiring consistent bends in lightweight alloys are efficiently formed using multi-axis gauge positioning.

Electrical Cabinet Manufacturing

Sequential bends in enclosures demand high repeatability, which programmable gauges deliver with minimal operator input.

Food and Medical Equipment

High-quality stainless steel parts benefit from smooth, mark-free handling and tight tolerance bending.

Maintenance and Calibration Tips

To ensure continued precision, the programmable back gauge system must be regularly maintained:

Weekly: Check mechanical play and tighten fasteners.

Monthly: Clean and lubricate linear guides and ball screws.

Annually: Recalibrate encoders and test servo alignment.

Preventive care extends machine life and avoids costly downtime.

FAQs

What is a programmable back gauge in a press brake?

It is an automated positioning system that adjusts the material before each bend, ensuring accuracy and repeatability.

How many axes can a programmable back gauge have?

Up to six axes, including depth, height, and side-to-side positioning, depending on the machine's configuration.

Does material thickness affect back gauge precision?

Yes, thicker sheets may introduce springback, requiring compensation through bending force and gauge recalibration.

Can programmable back gauges be upgraded later?

Yes, many hydraulic press brakes are designed for modular upgrades to add more movement axes or improve speed.

What causes errors in back gauge positioning?

Common issues include mechanical wear, misalignment, or outdated control parameters. Regular maintenance prevents most problems.
