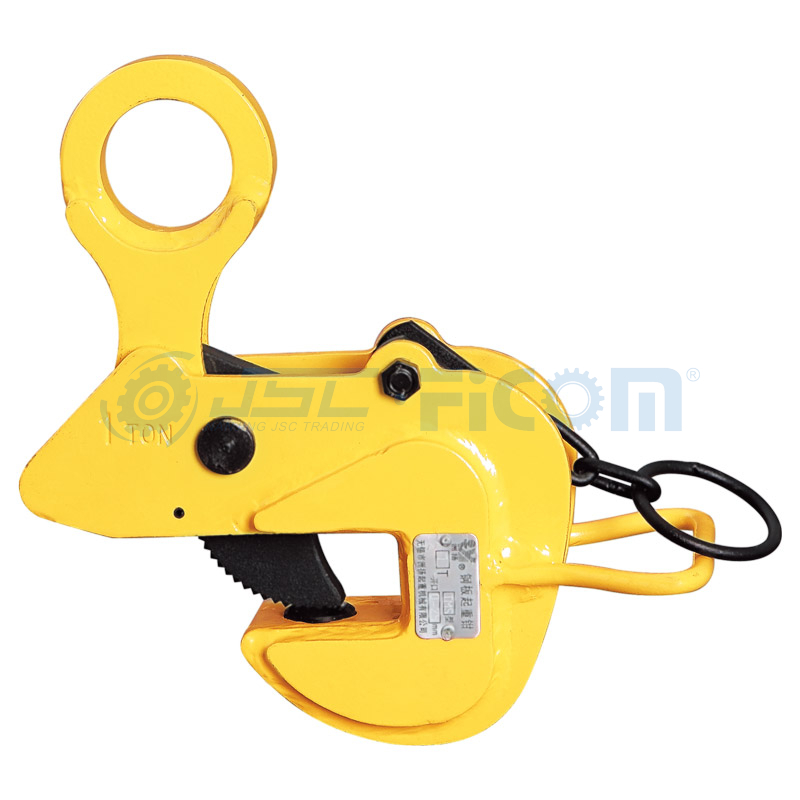

Horizontal Lifting Clamp, Item Code: 113### (Capacity: 500-10000 kg)

Suitable for lifting and transport of flat steel plate(H type,I type,T-type,L-shaped steel,etc.) and structural. iron(horizontal)hanging clamp, shaped steel.
Alock mechanism spring-tightening,event ata no load condition,clamps grip securely.
Mechanism gripping force is increased more strongly in proportion to the lifting load.
By the high-frequency hardening,cam distinguished durable die forging of special alloy steel.

Quantity:
  • 113###
  • FICOM
Overview

Capacity: 500-10000 kg

68


Technical Parameters

Item Code


Capacity

(pair/kg)

Jaw Opening

(mm)

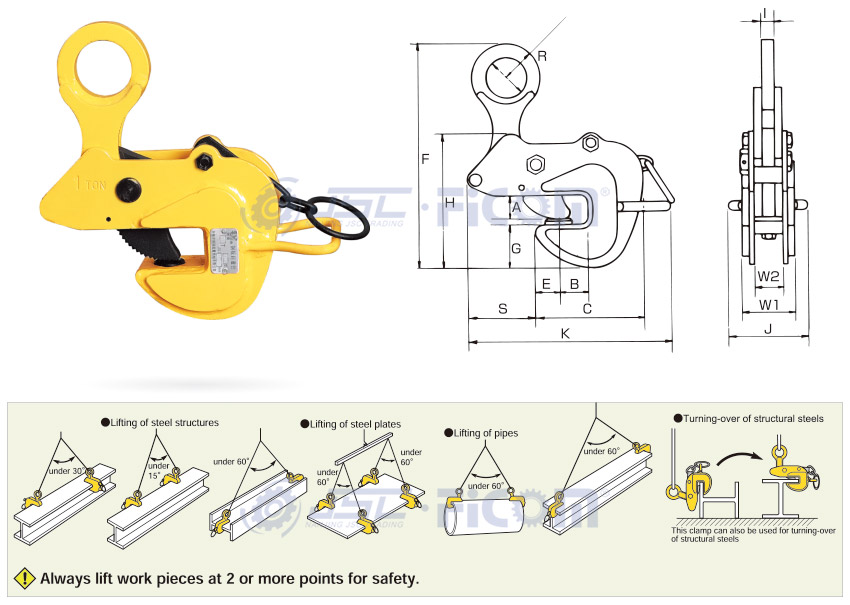

Dimensions (mm)

Net Weight

(kg)

A B C E F G H I J K S R W1 W2
113005 500 0-20 23 30 116 26 188-215 41 135 12 110 232 76 25 65 28 3.2
113010 1000 0-25 28 35 129 27 221-260 46 155 16 114 259 80 40 66 34 5.3
113020 2000 0-30 33 40 146 35 246-290 60 175 18 114 273 74 45 76 40 7.9
113030 3000 0-38 41 45 165 35 267-315 70 200 18 114 305 88 48 76 40 10.5
113050 5000 0-40 45 45 205 45 362-403 75 238 28 152 388 177 55 87 59 27.6
113100 10000 20-70 75 70 250 50 430-490 92 303 36 178 454 135 55 109 71 50
