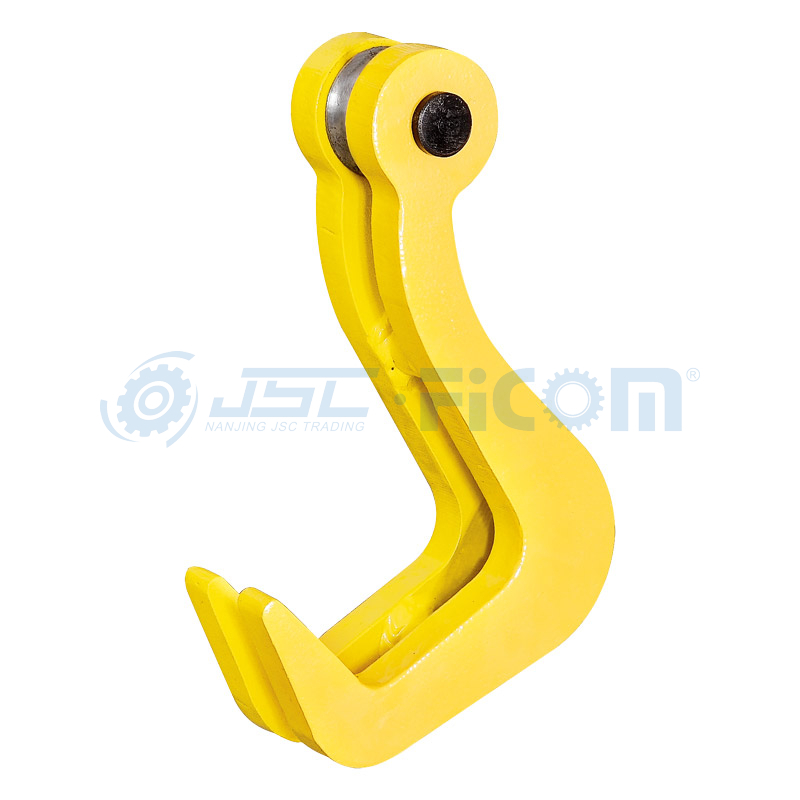

Horizontal Lifting Clamp, Item Code: 112### (Capacity: 1000-10000 kg)

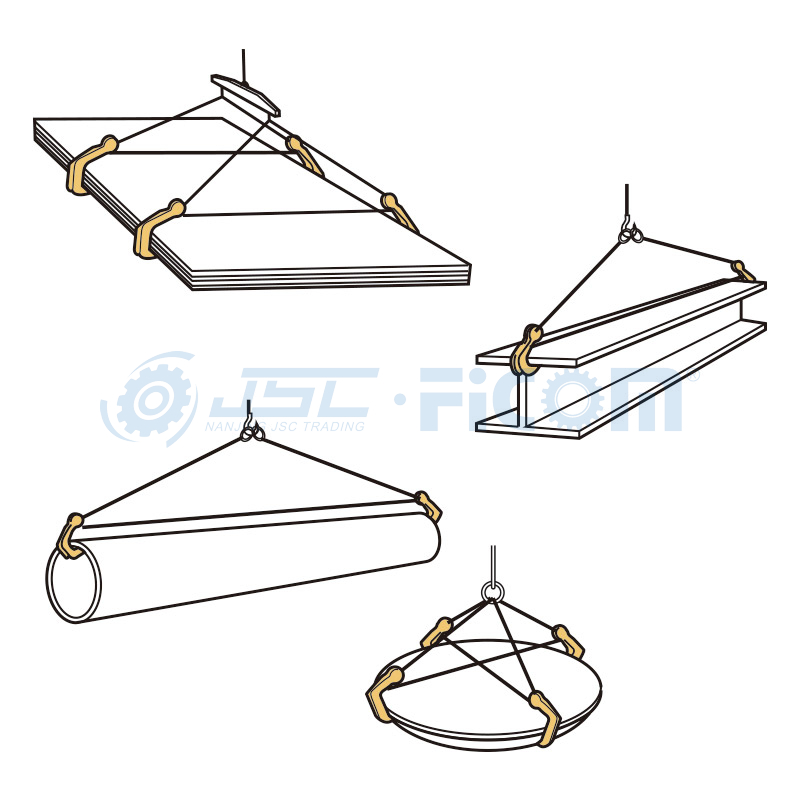

Suitable for lifting and transport single or multi steel plates.
Manufactured from high quality carbon steel.
Avoid snatch or shock loading.Lifting beam must bein use.
The roller at the head of the hook will not damage the sling rope.
The working load limit is the maximum load that the clamps are authorized to support when used in paires with a lift angle of 60°.

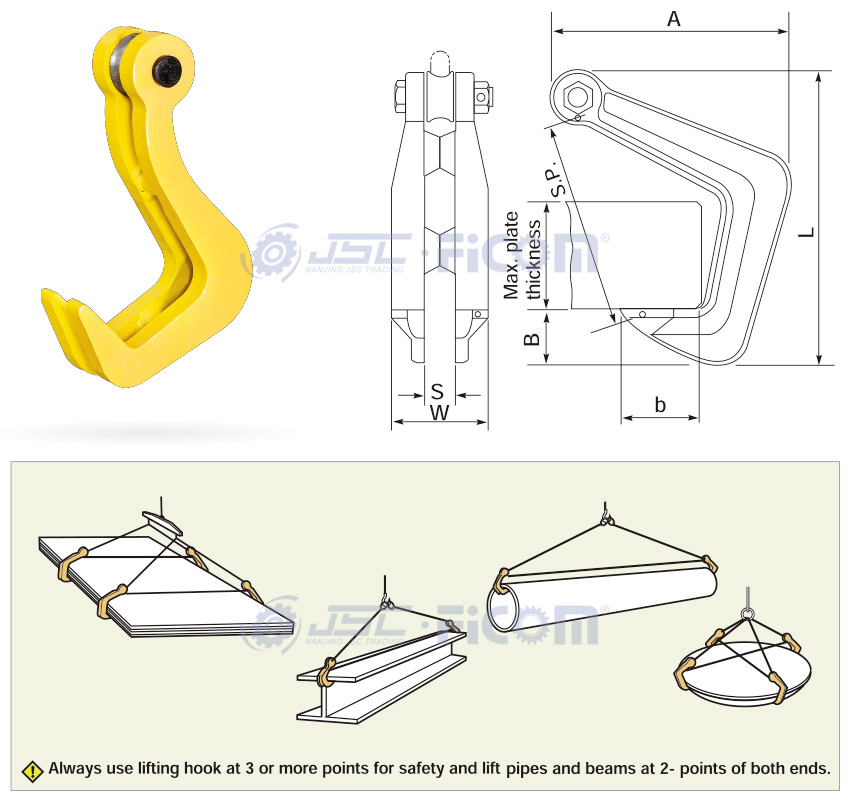

In lifting operations four clamps must at least always be used .
Automatic unloading.

Quantity:
  • 112###
  • FICOM
Overview

Capacity: 1000-10000 kg

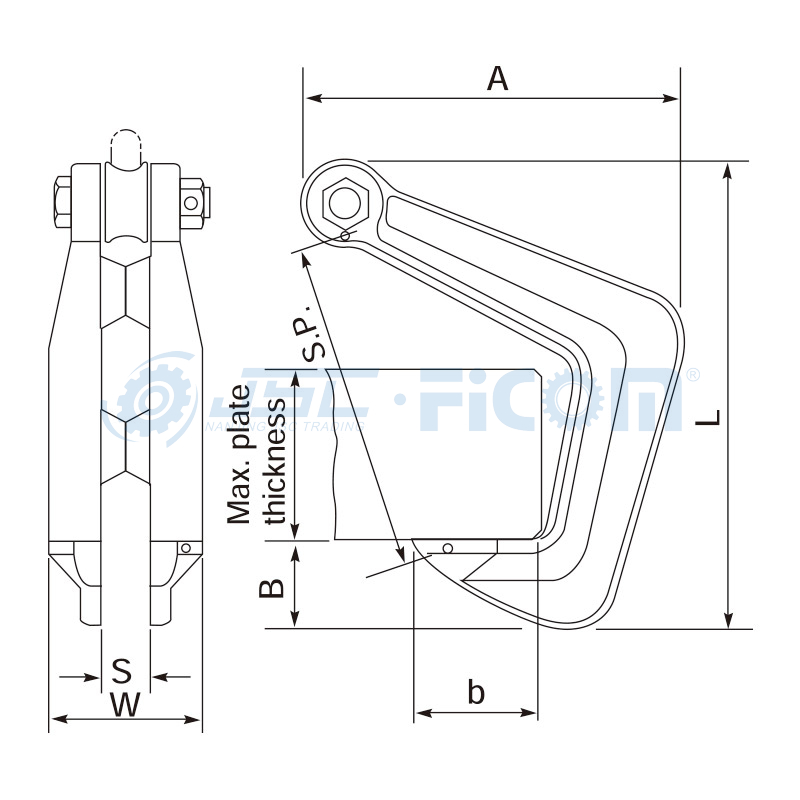

67B


Technical Parameters

Item Code


Capacity

(pair/kg)

Jaw Opening

(mm)

Net Weight

(kg)

112010 1000 0-40 2
112020 2000 0-50 3.5
112032 3200 0-60 6
112050 5000 0-70 14.5
112070 7000 0-90 22
