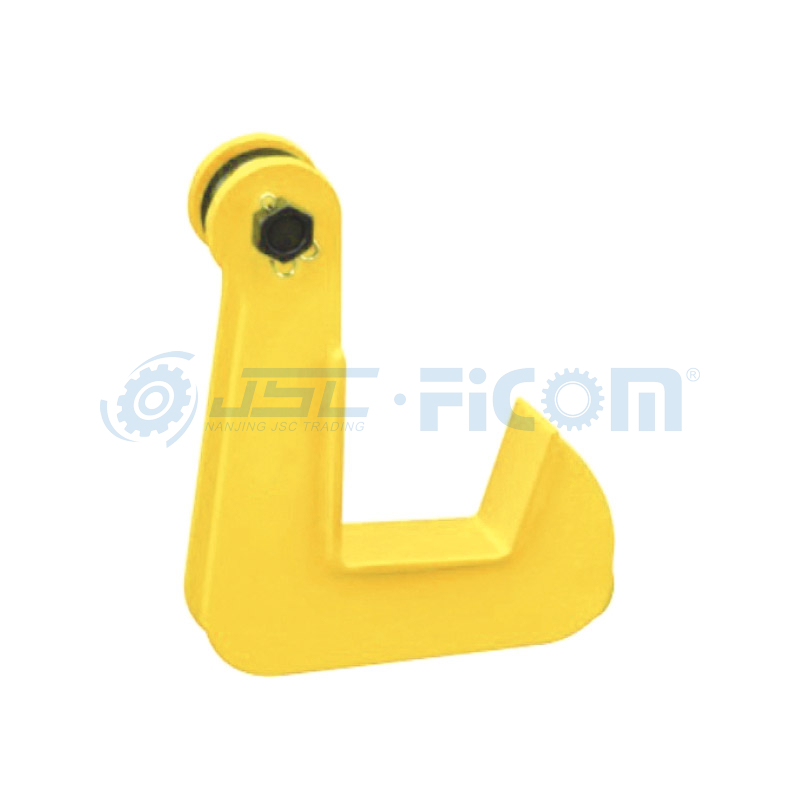

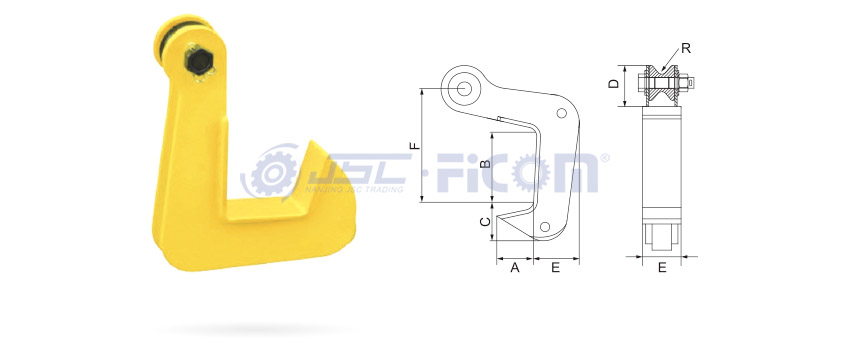

Horizontal Lifting Clamp, Item Code: 111### (Capacity: 4000-10000 kg)

Suitable for lifting and transport single or multi steel plates.
Manufactured from high quality carbon steel.
Avoid snatch or shock loading. Lifting beam must be in use.
The roller at the head of the hook will not damage the sling rope.
The working load limit is the maximum load that the clamps are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations four clamps must at least always be used.
Automatic unloading.

Quantity:
  • 111###
  • FICOM
Overview

Capacity: 4000-10000 kg

67


Technical Parameters

Item

Code


Capacity

(pair/kg)


Jaw

Opening

(mm)

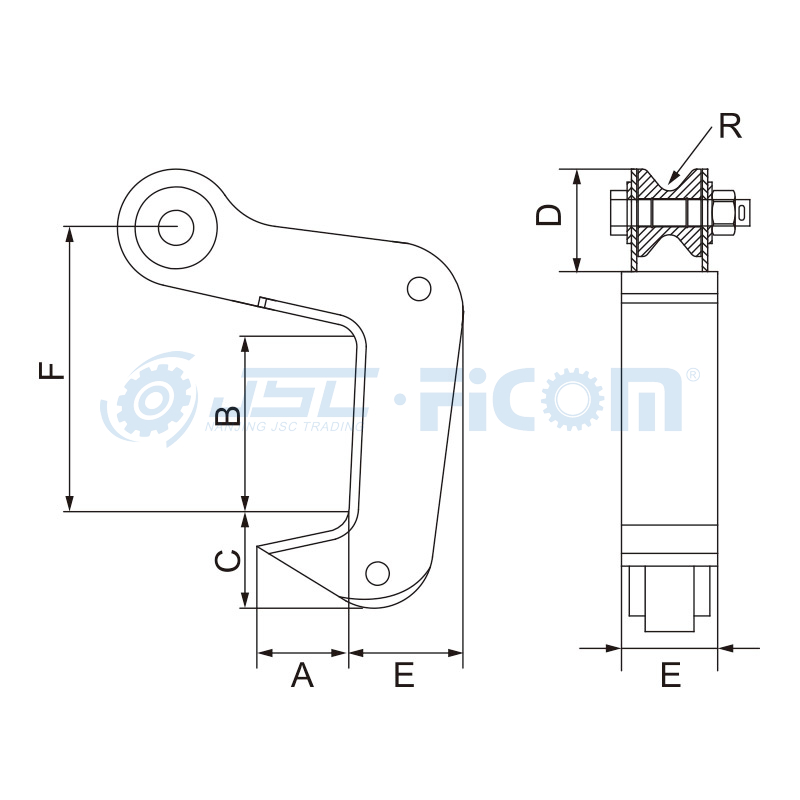

Dimensions (mm)

Net

Weight

(kg)

A B

C

E

F

G R
111040 4000 0-100 72 102 70 74 179 60 10 7
111060 6000 0-120 91 129 89 100 263 73 12 14
111100 10000 0-210 134 213 133 130 357 90 15 32
