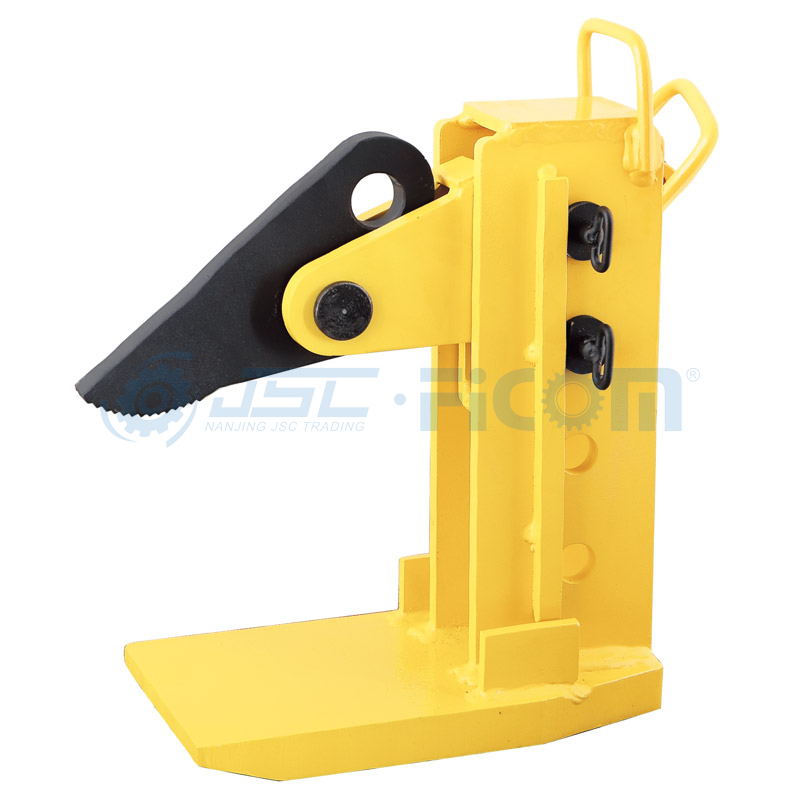

Horizontal Lifting Clamp, Item Code: 109### (Capacity: 500-10000 kg)

Suitable for lifting and transport of steel plates,in horizontal position.
Manufactured from high quality carbon steel.
The compact shape and relative light own weight with a high lifting capacity.
Must always be used in pairs(or multiples thereof).
Lifing capacity and jaw opening are clearly engraved in the body.

Quantity:
  • 109###
  • FICOM
Overview

Capacity: 500-10000 kg

65


Technical Parameters

Item

Code


Capacity

(pair/kg)


Jaw

Opening

(mm)

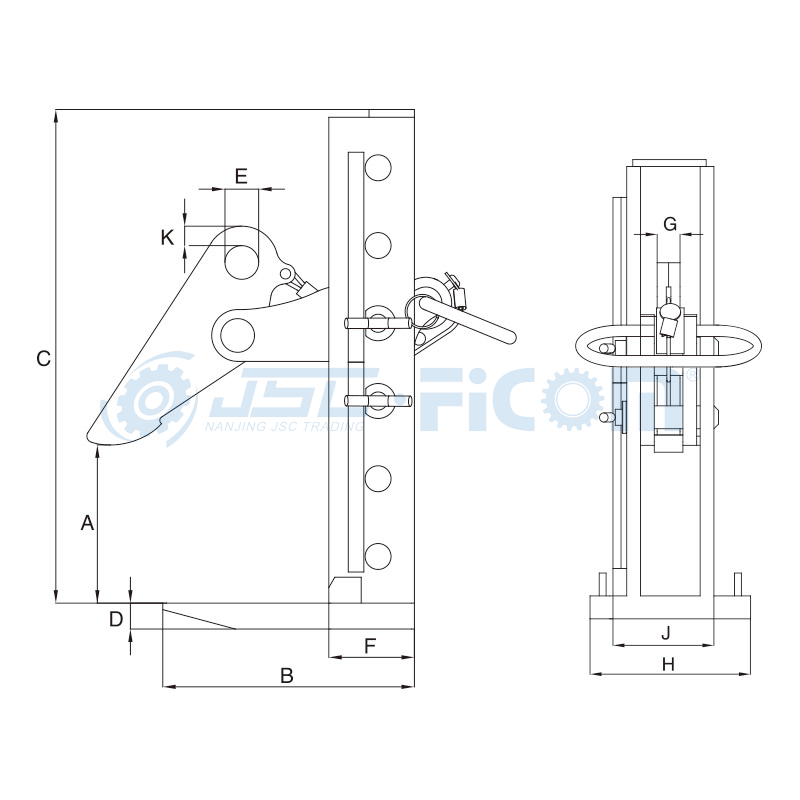

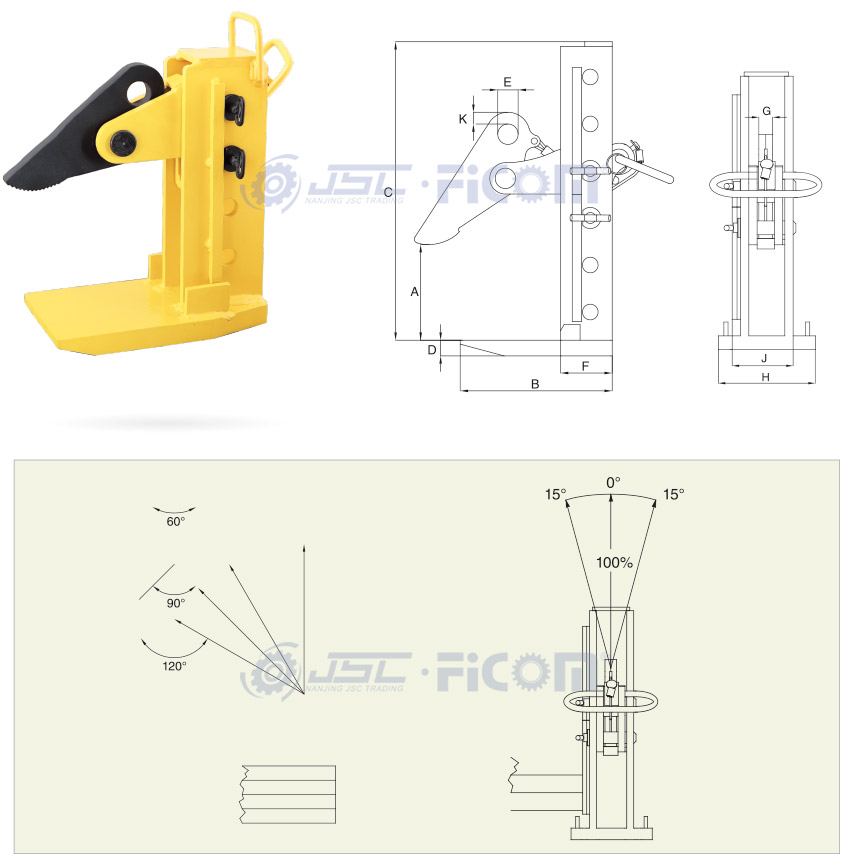

Dimensions (mm)

Net

Weight

(kg)

A B

C

D

E

F

G H

J

K

109030 3000 0-180 180 194 256 20 26 66 20 140 76 15 10.5
109031 3000 0-420 420 194 496 20 26 66 20 140 76 15 13
109032 3000 0-420 420 194 496 20 26 66 20 140 76 15 16
109060 6000 0-420 420 227 516 25 30 102 20 160 76 13 23
109090 9000 0-420 420 270 566 25 34 122 20 190 76 21 31
109120 12000 0-420 420 292 588 30 40 133 25 200 97 18 52
