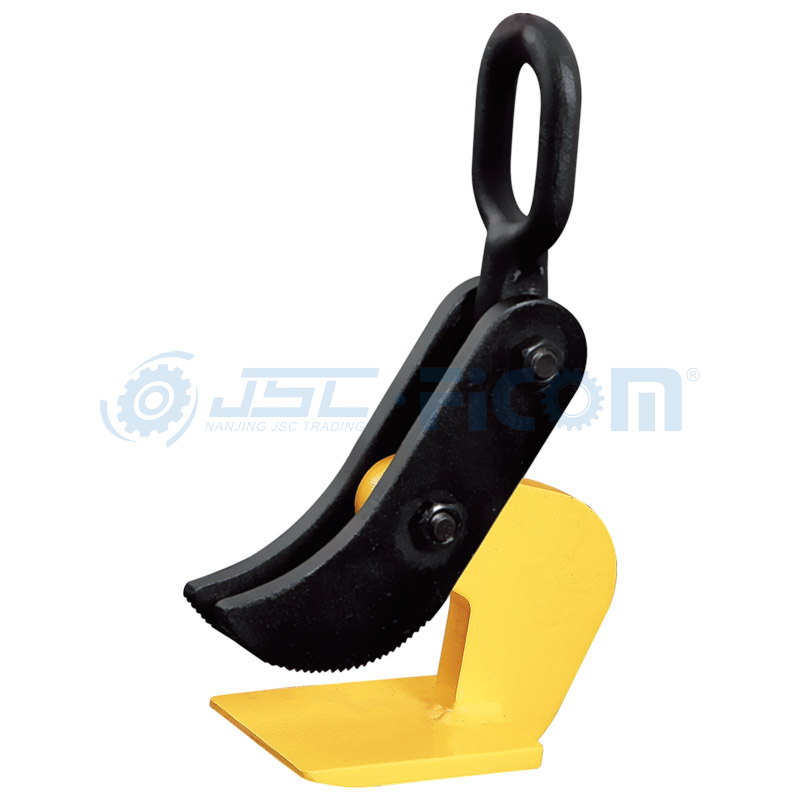

Horizontal Lifting Clamp, Item Code: 106### (Capacity: 1000-10000 kg)

It is especiallysuited for the transport of single plates with a minimum thickness of approx. 5 mm as well we for plate bundles.
The two-legged version is appropriate for normal sized plates.
For extra large or long plates,it is recommended to use two sets of the two-legged lifting gearsion conjunction with a spreader beam.
In the standard version,the lifting clamp is suitable for plates up to 1500mm width.Lifting gears with longer chains for larger plate widths are available upon request.
The capacity applies to a pair of lifting clamps.
Single clamps are also available.

Quantity:
  • 106###
  • FICOM
Overview

Capacity: 1000-10000 kg

63

Examples Of Use

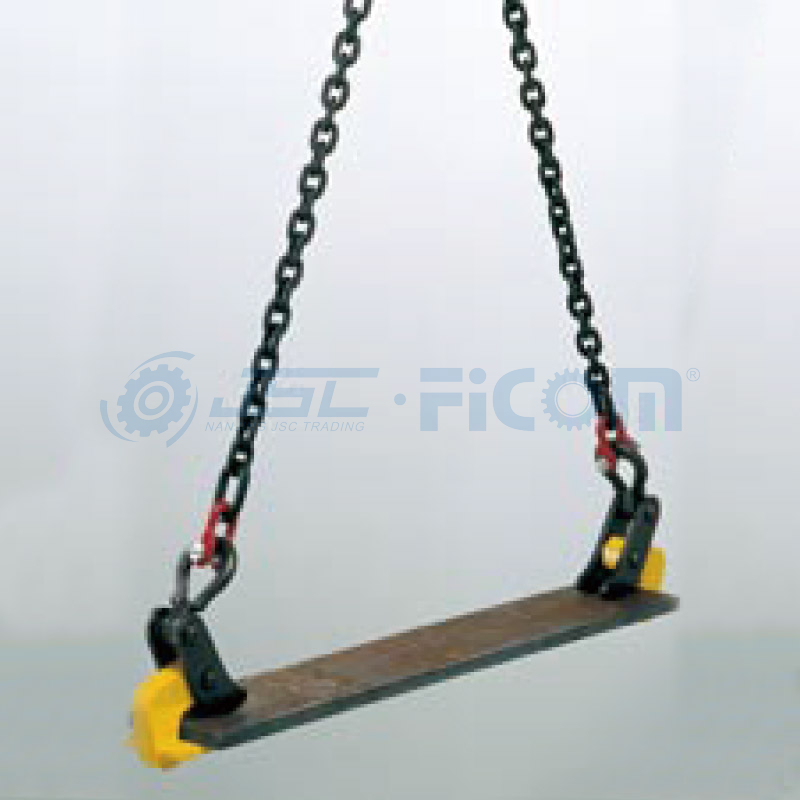

1 set horizontal lifting gear consists of two clamps with a two-legged chain sling.

In the standard version,the lifting clamp is suitable for plates up to 1500mm width.Lifting gears ith longer chains for larger plate widths are available upon request.The capacity applies to a pair of lifting clamps.

Single clamps are also available.

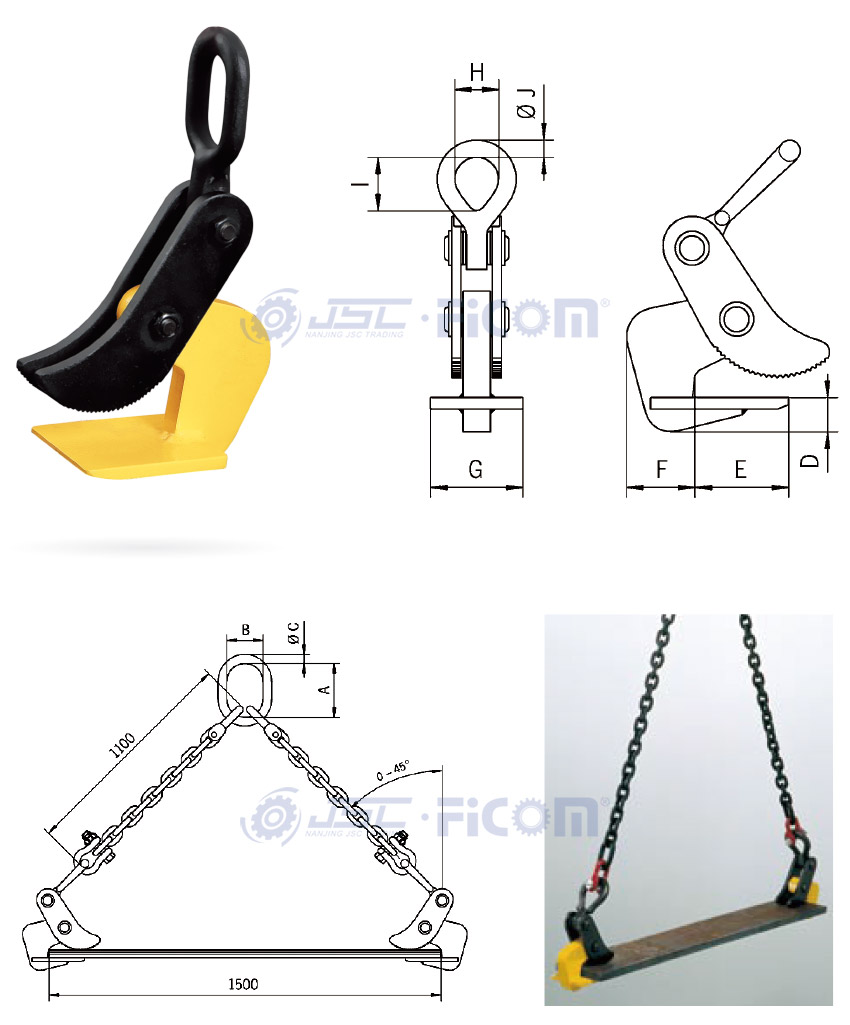

Technical Parameters

Item

Code


Capacity

(pair/kg)


Jaw

Opening

(mm)

Dimensions (mm)

Net

Weight

(kg)

A B

C

D

E

F

G H

I

J

106010 1000 0-50 135 75 18 15 82 65 100 32 44 13 4
106020 2000 5-32 160 90 22 32 83 61 100 49 72 19 5.5
106040 4000 5-50 180 100 26 44 114 75 99 62 89 26 8.5
106060 6000 5-75 200 110 32 58 172 97 129 90 127 36 23
106080 8000 5-75 260 140 36 56 170 100 128 90 130 37 26.5
106100 10000 5-100 300 160 40 70 216 116 149 113 113 50 47.5
106101 10000 50-150 300 160 40 66 218 116 150 113 113 50 54
