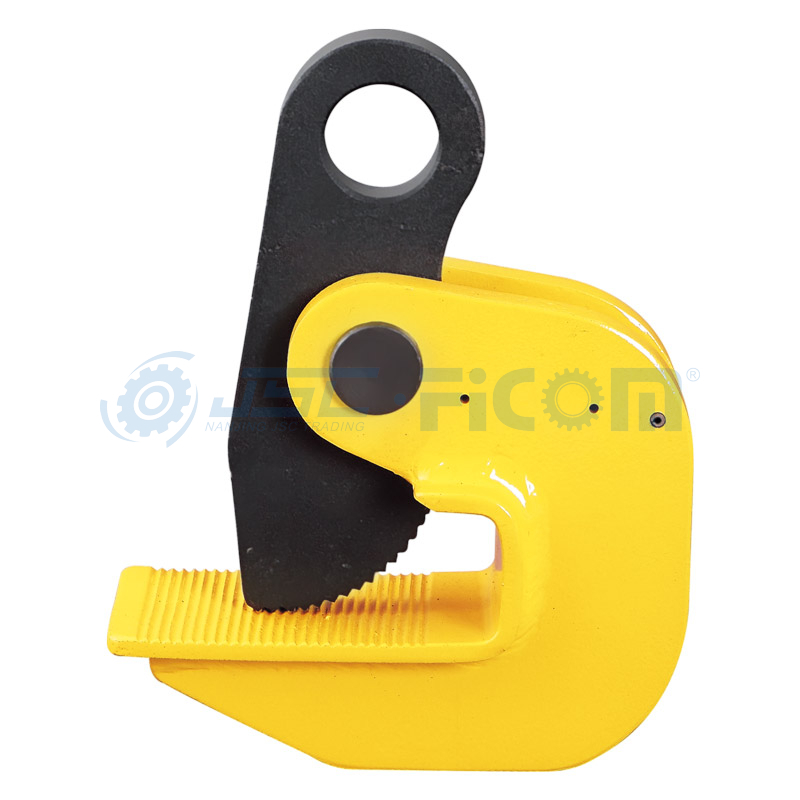

Horizontal Lifting Clamp, Item Code: 103### (Capacity: 2000-10000kg)

Suitable for lifting and transport of steel plates,construction and profiled bar in horizontal position.
Manufactured from high quality carbon steel.
Avoid snatch or shock loading.

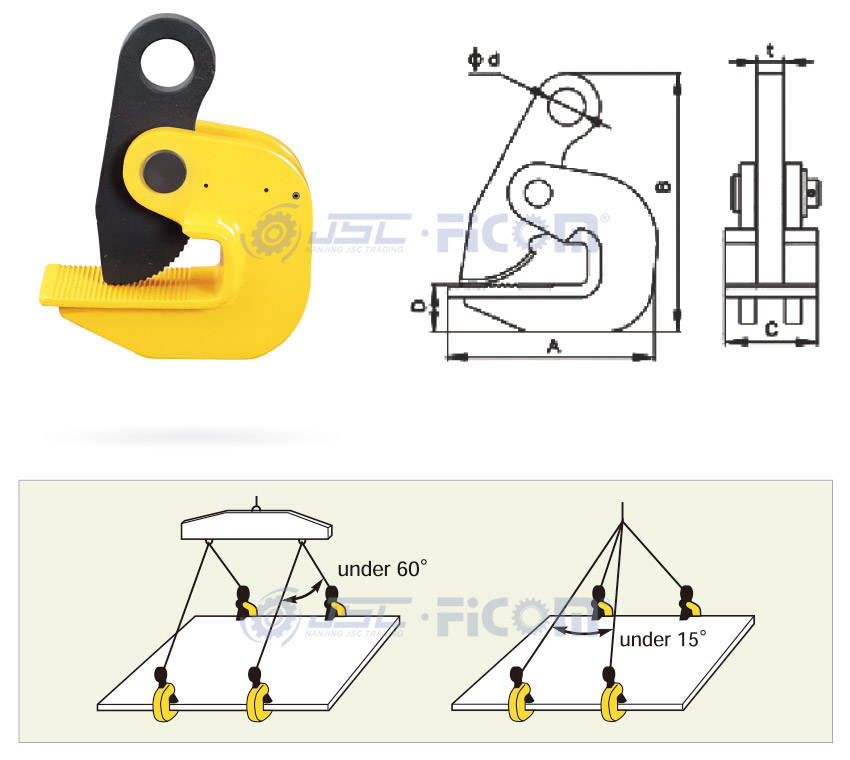

The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations the clamps can be used in pairs or multiples.
Availability:
Quantity:
  • 103###

  • FICOM

Overview

Capacity: 2000-10000kg

61A

Technical Parameters

Item Code



Capacity

(pair/kg)


Jaw

Opening

(mm)

Dimensions (mm)

Net

Weight

(kg)

A B

C

D

E

103020 2000 0-20 127 156 56 29 14 2.12
103030 3000 0-30 152 190 64 31 16 3.4
103050 5000 20-60 220 293 70 54 16 8.5
103080 8000 50-100 277 375 86 59 22 16.2
103100 10000 60-125 296 421 86 66 24 20.2
