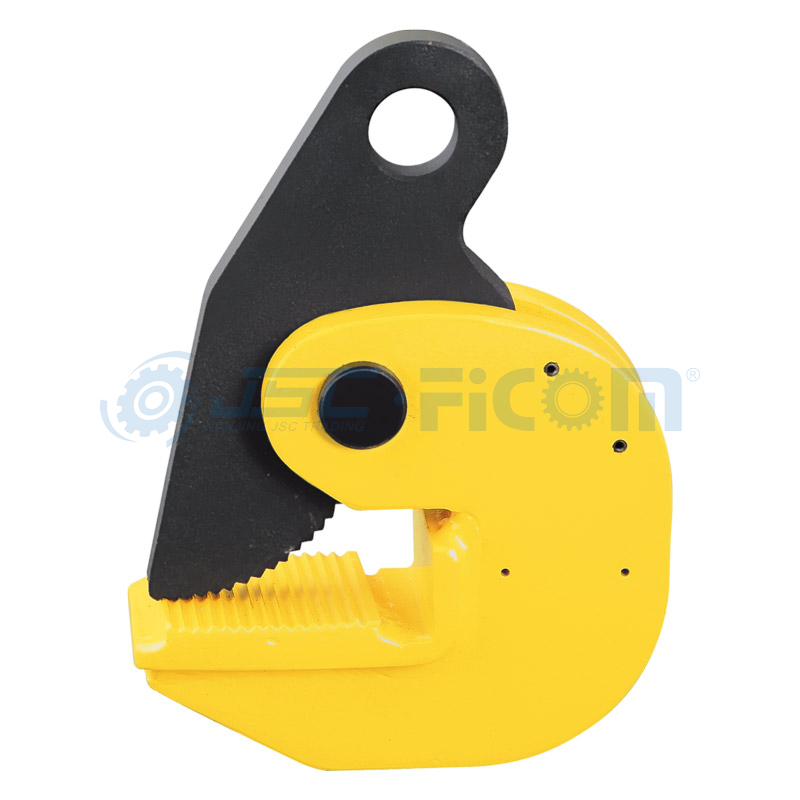

Horizontal Lifting Clamp, Item Code: 101###,102### (Capacity: 800-10000 kg)

Suitable for lifting and transport of steel plates,construction and profiled bar in horizontal position.
Manufactured from high quality carbon steel.
Avoid snatch or shock loading.

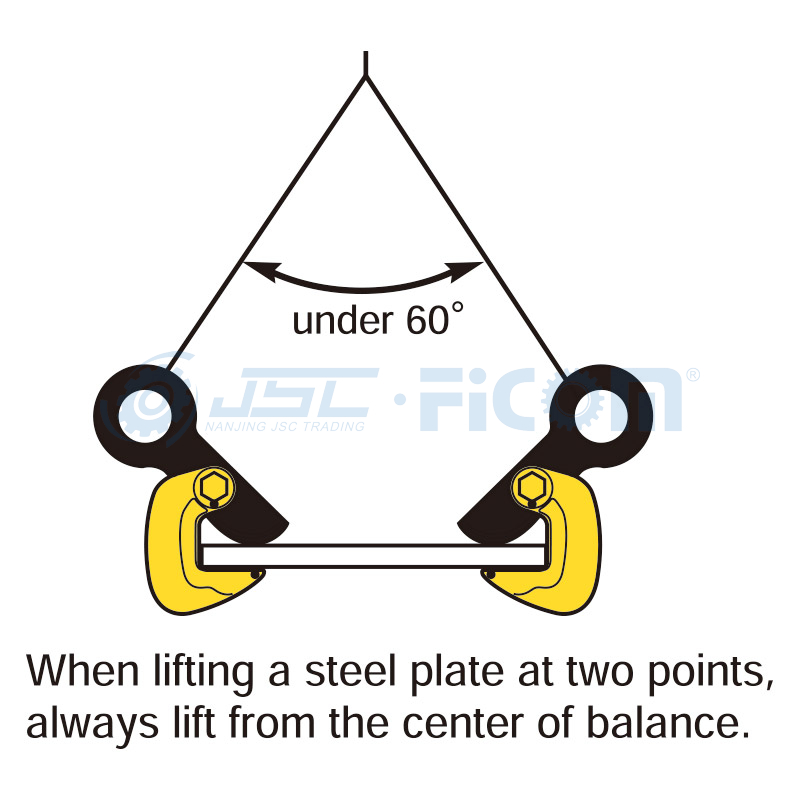

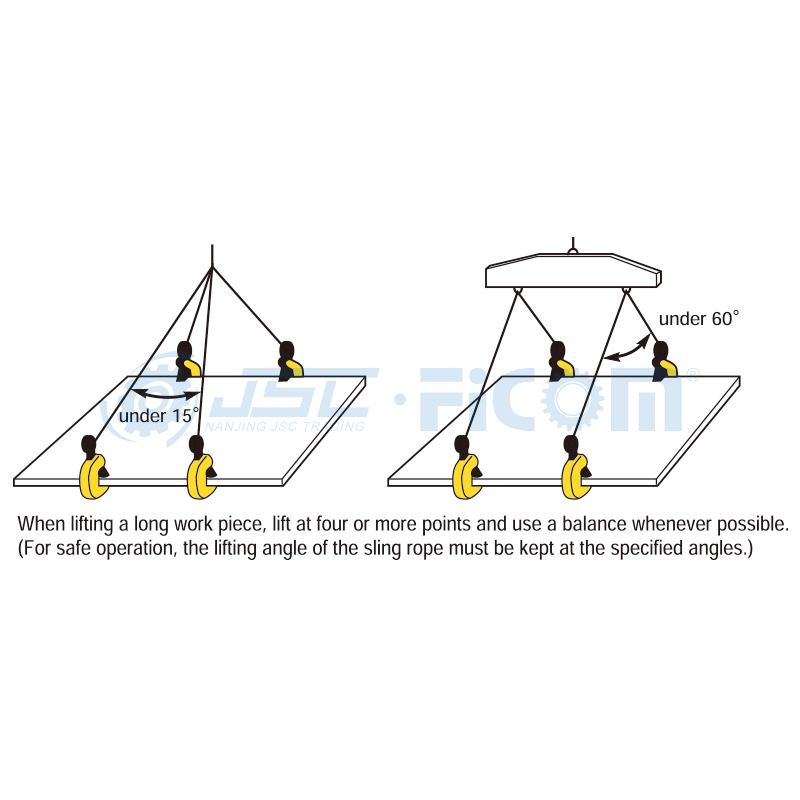

The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clapms can be used in pairs or multiples.
Item Code: 102### the screw jaw of the body can be changed , also have a safety button.
Availability:
Quantity:
  • 101###, 102###

  • FICOM

Overview

Capacity: 800-10000 kg

59

Technical Parameters

Item Code



Capacity

(pair/kg)


Jaw

Opening

(mm)

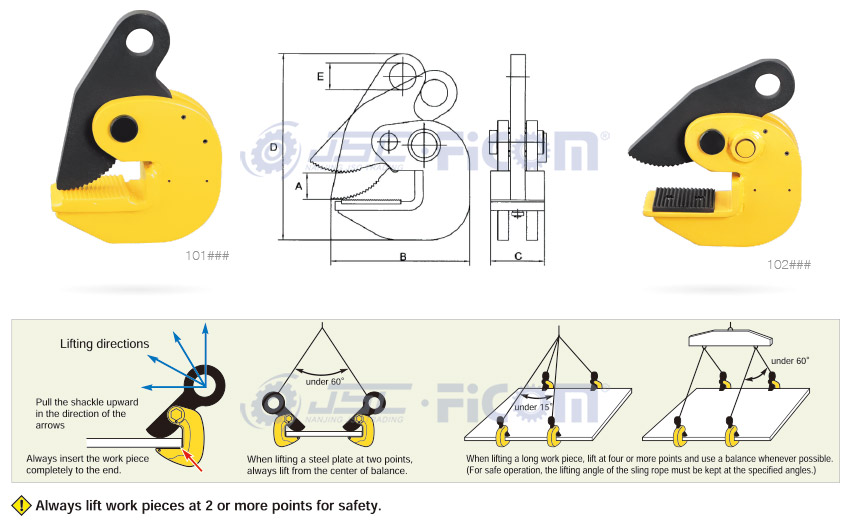

Dimensions (mm)

Net

Weight

(kg)

A B

C

D

E

101008/102008 800 0-25 25 120 55 185 22 2.5
101010/102010 1000 0-30 30 155 60 215 25 3.5
101016/102016 1600 0-30 30 155 60 215 25 4
101020/102020 2000 0-40 40 175 65 245 25 5
101030/102030 3000 0-45 45 190 70 250 27 6
101040/102040 4000 0-50 50 190 70 255 27 6.5
101050/102050 5000 0-55 55 190 70 260 28 7.5
101060/102060 6000 0-65 65 200 70 275 28 10.5
101080/102080 8000 0-130 130 320 90 380 40 22
101100/102100 10000 0-140 140 320 90 390 40 33
