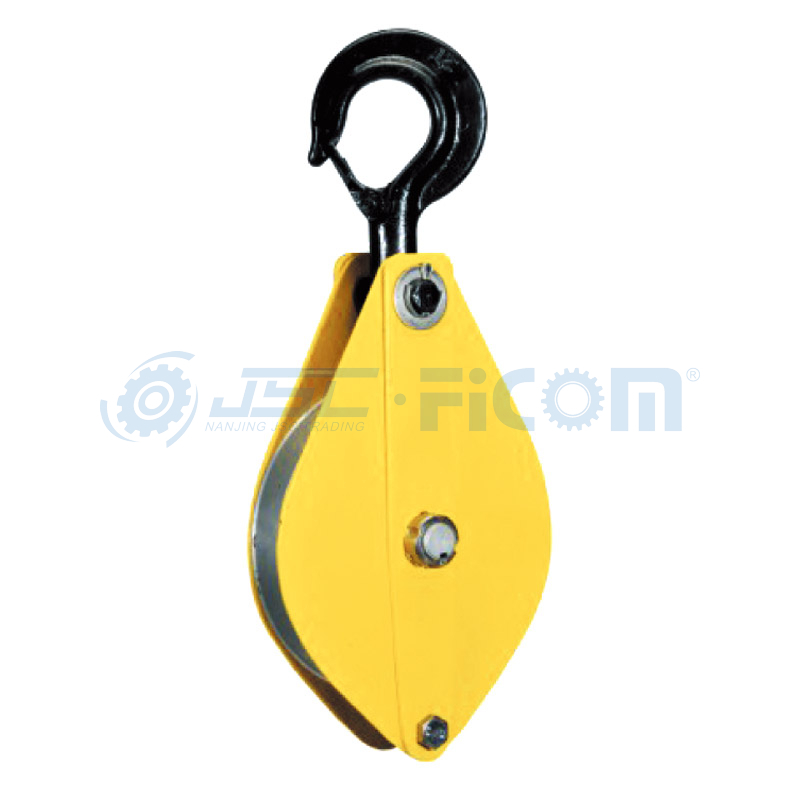

Hand Pulley Block Model: HPB (Capecity: 0.5-6.4 Ton)

Swinging the hook in the direction of pull securely locks the pulley block.
The high quality cast steel sheaves have machined grooves.
When choosing and classifying pulley blocks,take the Principles for Rope Drives DIN 15020 into consideration.

Quantity:
  • HPB
  • FICOM
Overview

Capecity: 0.5-6.4 Ton

57

Pulley blocks,hinged,with single steel sheave.

Capacity 500-6400kg.

One side of the pulley blocks is hinged and can be opened for easy and quick positioning of the wire rope on the sheave.It can also provide a quick and versatile rigging point or redirect a wire rope.

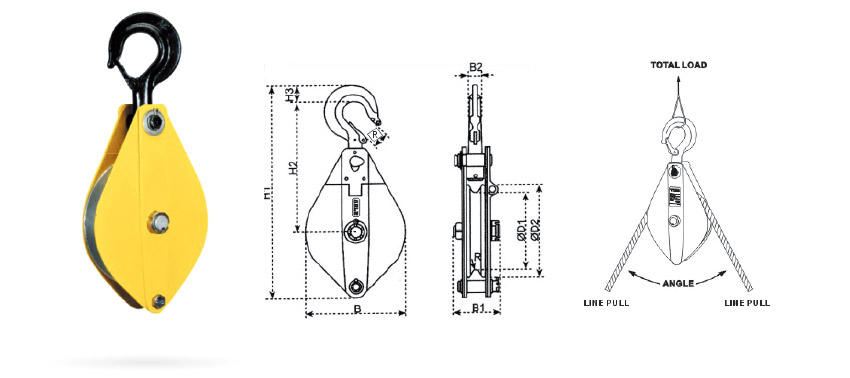

Technical Parameters

Model



Working

Load

(kg)

Hook

Latch H

(mm)

Rope

Dia.

(mm)

B



B1



B2



H1



H2



H3



D1



D2



D3



Weight

(kg)


HPB0.5 500 20 φ5 95 62 16 260 190 20 75 88 3 2
HPB01 1000 23 φ7 118 76 17 305 200 23 85 105 4 3.2
HPB02 2000 27 φ13 119 92 24 425 263 30 150 190 7 7.3
HPB3.2 3200 31 φ15 230 108 28 496 295 40 180 220 9 13.1
HPB6.4 6400 42 φ15 270 116 35 655 375 47 210 260 10 22.1

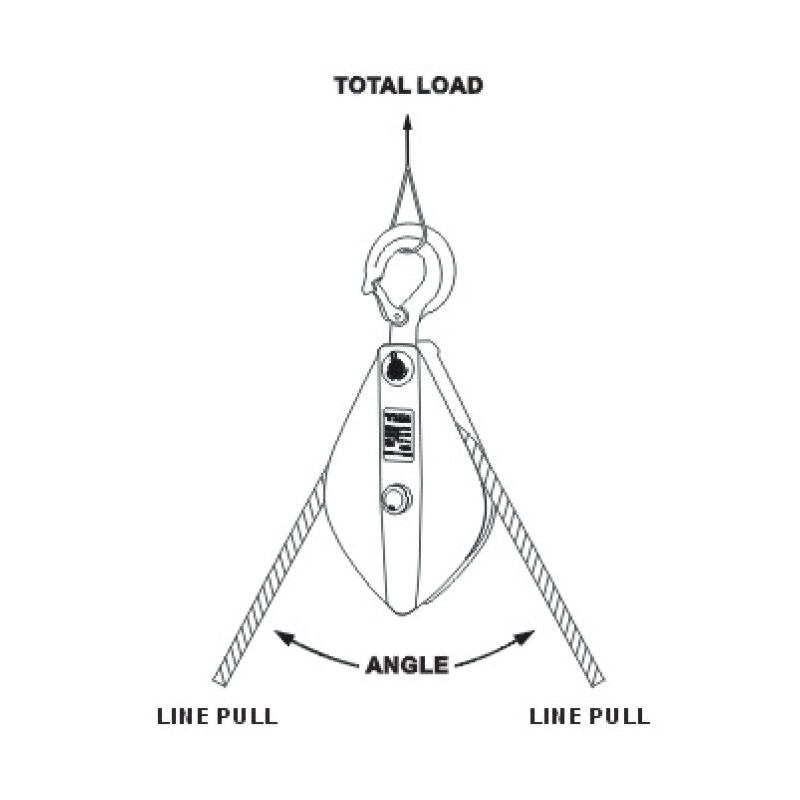

Angle Factor Multipliers

57-3

Angle Factor Angle Factor
2.00 100° 1.29
10° 1.99 110° 1.15
20° 1.97 120° 1.00
30° 1.93 130° 0.84
40° 1.87 140° 0.76
45° 1.84 145° 0.68
50° 1.81 150° 0.52
60° 1.73 160° 0.35
70° 1.64 170° 0.17
80° 1.53 180° 0.00
90° 1.41 / /
