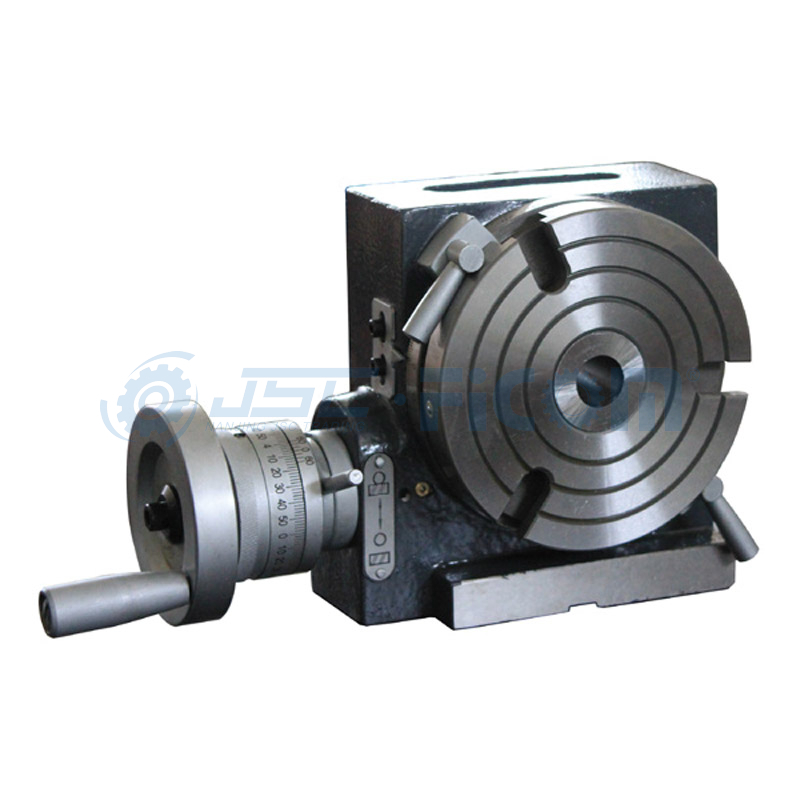

HV
FICOM

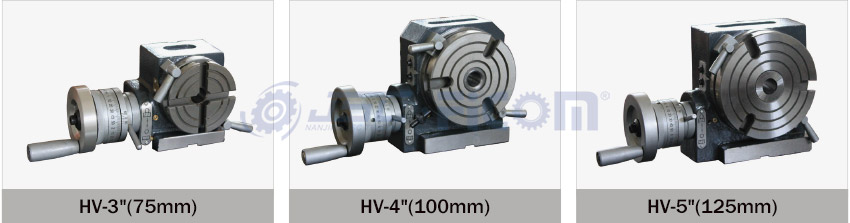

Model No. | Unit | HV-3"(75mm) | HV-4"(100mm) | HV-5"(125mm) |
table diameter | mm | ø76.2 | ø110 | ø127 |
morse taper of the center hole | MT2 | MT2 | MT2 | |
width of the t-solt | mm | 8 | 12 | 12 |
adjacent angle of table t-slot | ° | 90 | 120 | 120 |
width of the locating key | mm | 12 | 12 | 12 |
modele of the worm gear | 1 | 1 | 1 | |
graduation of the table | ° | 360 | 360 | 360 |
max.bearing(with table hor.) | kg | 100 | 150 | 200 |
max.bearing(with table vert.) | kg | 50 | 75 | 100 |
Model No. | Unit | HV-3"(75mm) | HV-4"(100mm) | HV-5"(125mm) |
table diameter | mm | ø76.2 | ø110 | ø127 |
morse taper of the center hole | MT2 | MT2 | MT2 | |
width of the t-solt | mm | 8 | 12 | 12 |
adjacent angle of table t-slot | ° | 90 | 120 | 120 |
width of the locating key | mm | 12 | 12 | 12 |
modele of the worm gear | 1 | 1 | 1 | |
graduation of the table | ° | 360 | 360 | 360 |
max.bearing(with table hor.) | kg | 100 | 150 | 200 |
max.bearing(with table vert.) | kg | 50 | 75 | 100 |
