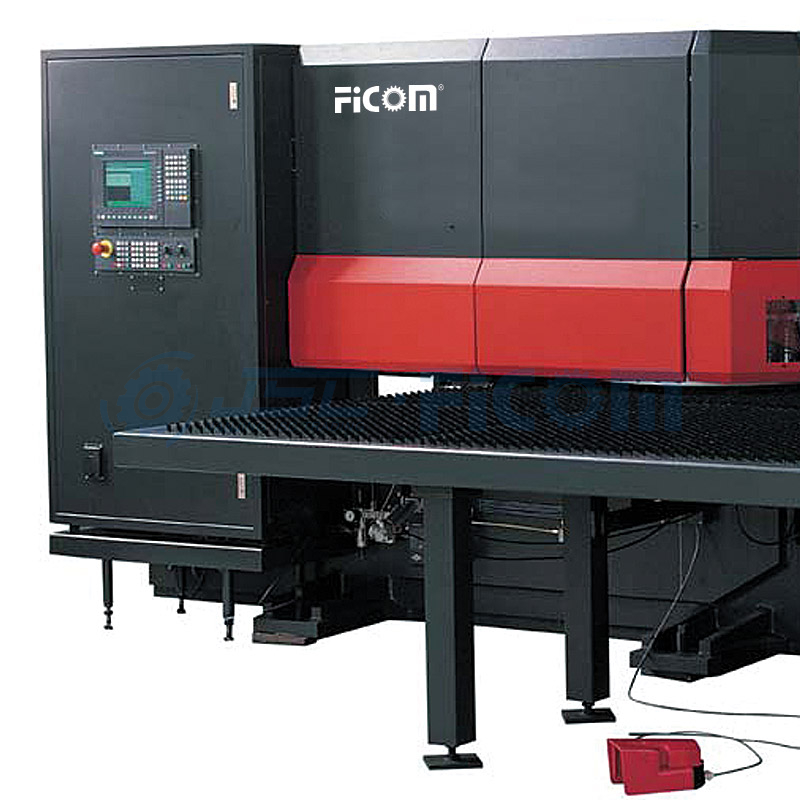

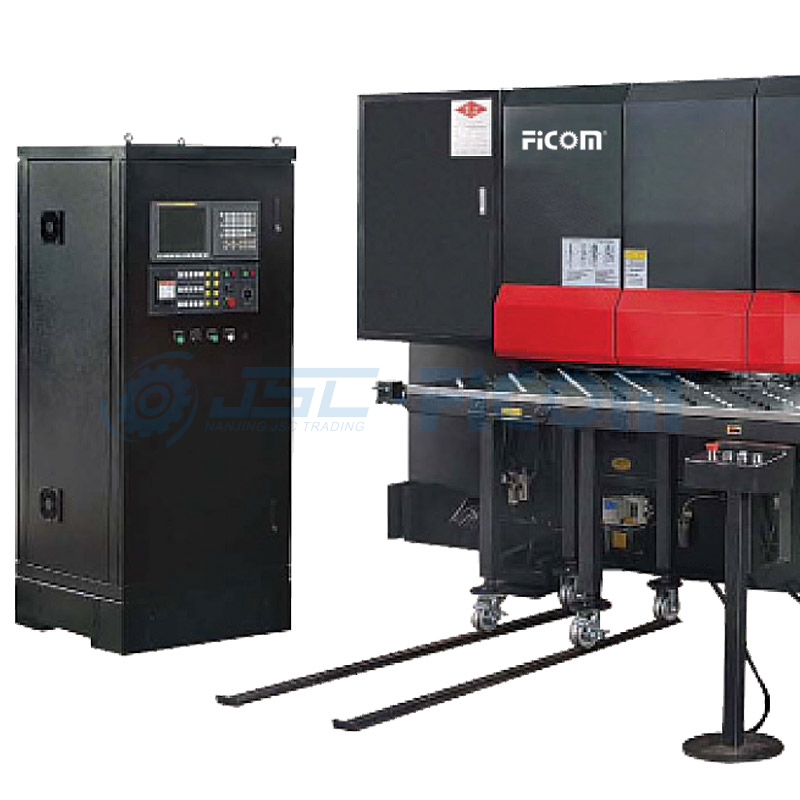

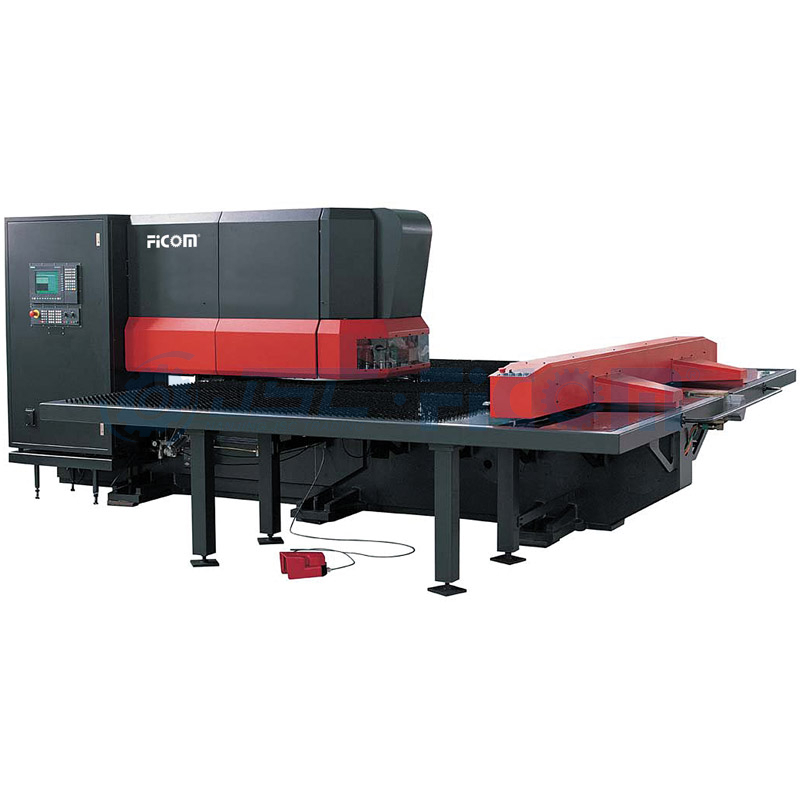

HTP
FICOM

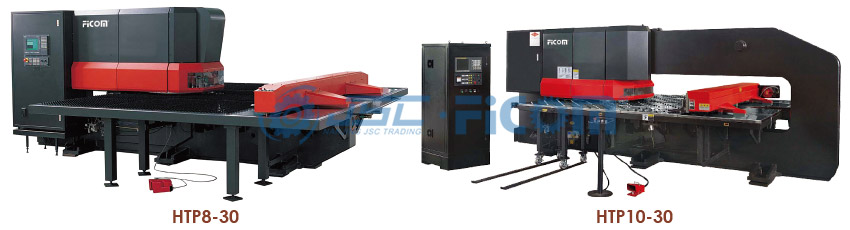

| Model No. | Unit | HTP8-30 Hydraulic | HTP10-30 Hydraulic | ||||
| nominal force | Kn | 300 | 300 | 300 | 300 | 300 | 300 |
| workpiece size | mm | 1250×2500 | 1250×4000 | 1250×2500 | 1250×4000 | 1250×5000 | 1500×5000 |
| max. workpiece weight | Kg | 156 | 156 | 156 | 156 | 210 | 235 |
| max. workpiece moving speed | m/min | 106 | 106 | 106 | 106 | 106 | 106 |
| max. workpiece thickness | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| max. punching diameter | mm | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 |
| station number | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | |
| working accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| punching frequency | hpm | 450/※600 | 450/※600 | 600/※450 | 600/※450 | 600/※450 | 600/※450 |
| frame construction | C-type double- frame | C-type double- frame | O-type | O-type | O-type | O-type | |
| controlling axes | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | |
rotation station: max punching diameter | mm | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 |
| air pressure | Mpa | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| G.W. | T | 14.5 | 15 | 19.5 | 20 | 20.5 | 22 |
| machine dimension | mm | 5340× 2700× 2150 | 5340× 4200× 2150 | 5400× 2700× 2200 | 5400× 4200× 2200 | 5400× 4200× 2200 | 6100× 4200× 2200 |
| Model No. | Unit | HTP10-40 Hydraulic | HTP10-50 Hydraulic | ||||
| nominal force | Kn | 400 | 400 | 400 | 500 | 500 | 500 |
| workpiece size | mm | 1250×2500 | 1250×4000 | 1500×5000 | 1250×2500 | 1250×4000 | 1500×5000 |
| max. workpiece weight | Kg | 156 | 156 | 235 | 235 | 235 | 350 |
| max. workpiece moving speed | m/min | 106 | 106 | 106 | 106 | 106 | 106 |
| max. workpiece thickness | mm | 6.35 | 6.35 | 6.35 | 8 | 8 | 8 |
| max. punching diameter | mm | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 |
| station number | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | |
| working accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| punching frequency | hpm | 450 | 450 | 450 | 300 | 300 | 300 |
| frame construction | O-type | O-type | O-type | O-type | O-type | O-type | |
| controlling axes | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | |
rotation station: max punching diameter | mm | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 |
| air pressure | Mpa | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| G.W. | T | 20 | 21 | 23 | 22 | 23 | 25 |
| machine dimension | mm | 5400× 2700× 2200 | 5400× 4200× 2200 | 6100× 4200× 2200 | 5400× 2700× 2200 | 5400× 4200× 2200 | 6100× 4200× 2200 |
*1250×2500 size is standard size.
| Model No. | Unit | HTP8-30 Hydraulic | HTP10-30 Hydraulic | ||||
| nominal force | Kn | 300 | 300 | 300 | 300 | 300 | 300 |
| workpiece size | mm | 1250×2500 | 1250×4000 | 1250×2500 | 1250×4000 | 1250×5000 | 1500×5000 |
| max. workpiece weight | Kg | 156 | 156 | 156 | 156 | 210 | 235 |
| max. workpiece moving speed | m/min | 106 | 106 | 106 | 106 | 106 | 106 |
| max. workpiece thickness | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| max. punching diameter | mm | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 |
| station number | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | |
| working accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| punching frequency | hpm | 450/※600 | 450/※600 | 600/※450 | 600/※450 | 600/※450 | 600/※450 |
| frame construction | C-type double- frame | C-type double- frame | O-type | O-type | O-type | O-type | |
| controlling axes | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | |
rotation station: max punching diameter | mm | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 |
| air pressure | Mpa | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| G.W. | T | 14.5 | 15 | 19.5 | 20 | 20.5 | 22 |
| machine dimension | mm | 5340× 2700× 2150 | 5340× 4200× 2150 | 5400× 2700× 2200 | 5400× 4200× 2200 | 5400× 4200× 2200 | 6100× 4200× 2200 |
| Model No. | Unit | HTP10-40 Hydraulic | HTP10-50 Hydraulic | ||||
| nominal force | Kn | 400 | 400 | 400 | 500 | 500 | 500 |
| workpiece size | mm | 1250×2500 | 1250×4000 | 1500×5000 | 1250×2500 | 1250×4000 | 1500×5000 |
| max. workpiece weight | Kg | 156 | 156 | 235 | 235 | 235 | 350 |
| max. workpiece moving speed | m/min | 106 | 106 | 106 | 106 | 106 | 106 |
| max. workpiece thickness | mm | 6.35 | 6.35 | 6.35 | 8 | 8 | 8 |
| max. punching diameter | mm | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 | φ88.9 |
| station number | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | 32/※24 | |
| working accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| punching frequency | hpm | 450 | 450 | 450 | 300 | 300 | 300 |
| frame construction | O-type | O-type | O-type | O-type | O-type | O-type | |
| controlling axes | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | 4/※3 | |
rotation station: max punching diameter | mm | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 | φ50.8 |
| air pressure | Mpa | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| G.W. | T | 20 | 21 | 23 | 22 | 23 | 25 |
| machine dimension | mm | 5400× 2700× 2200 | 5400× 4200× 2200 | 6100× 4200× 2200 | 5400× 2700× 2200 | 5400× 4200× 2200 | 6100× 4200× 2200 |
*1250×2500 size is standard size.
