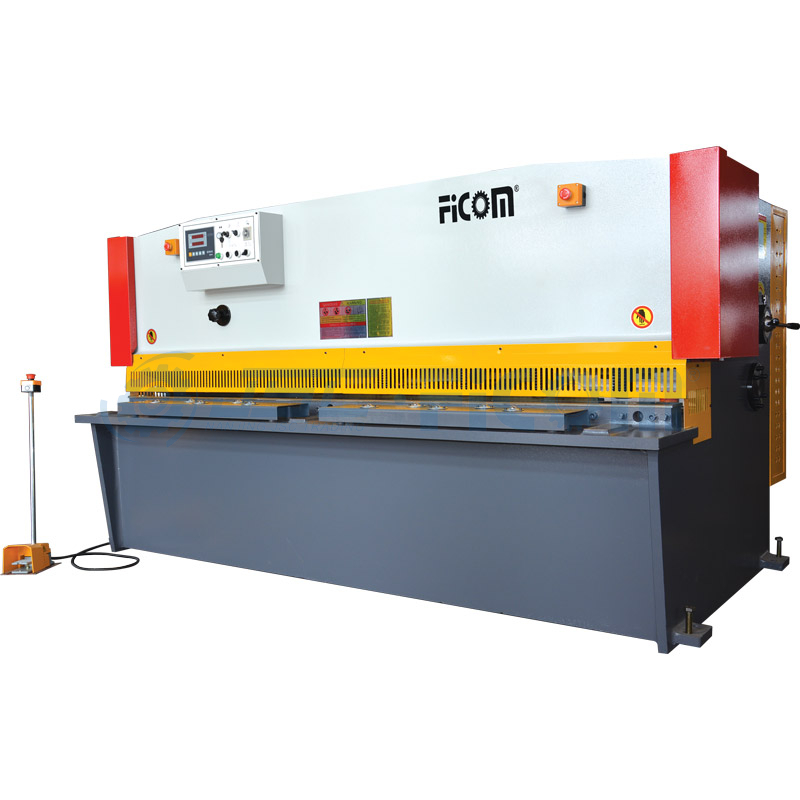

HSH Series Hydraulic Swing Beam Shearing

Availability:
Quantity:
  • HSH

  • FICOM

Overview



HSH


Technical Parameters

Longer backgauge 1000mm available


Model No.

max. shearing

thickness

(mm)

max. shearing

width

(mm)

shearing

angle

(°)

number

of troke

backgauge

range

motor

power

(Kw)

G.W.

(Kg)

size

(L×W×H)

(mm)

HSH4×2500 4 2500 1°30' 20 20~480 5.5 3800 3130×2030×1600
HSH4×3200 4 3200 1°30' 20 20~600 5.5 5600 3840×2175×1600
HSH4×4000 4 4000 1°30' 18 20~600 5.5 7000 4640×2320×1600
HSH6×2500 6 2500 1°30' 18 20~600 7.5 5200 3130×2030×1600
HSH6×3200 6 3200 1°30' 16 20~600 7.5 6500 3840×2320×1620
HSH6×4000 6 4000 1°30' 14 20~600 7.5 8500 4630×2495×1700
HSH6×6000 6 6000 1°30' 6 20~600 9 16800 6645×2530×2250
HSH8×2500 8 2500 1°30' 14 20~600 11 6200 3140×2345×1620
HSH8×3200 8 3200 1°30' 12 20~600 11 7300 3850×2345×1620
HSH8×4000
8 4000 1°30' 10 20~600 11 9600 4630×2495×1700
HSH8×6000
8 6000 1°30' 6 20~600 15 17600 6650×2845×2250
HSH12×2500
12 2500 1°30' 12 20~800 18.5 9600 3235×3050×2100
HSH12×3200
12 3200 1°30' 10 20~800 18.5 12000 3945×3050×2100
HSH12×4000
12 4000 1°30' 8 20~800 18.5 14500 4745×3210×2200
HSH12×6000
12 6000 1°30' 5 20~800 22 29500 6745×3430×2300
HSH16×2500
16 2500 8 20~800 22 11600 3410×3230×2230
HSH16×3200
16 3200 7 20~800 22 14000 4120×3230×2230
HSH16×4000
16 4000 6 20~800 22 16800 4920×3330×2700
HSH20×2500
20 2500 2°30' 8 20~800 37 17500 3420×3330×2700
HSH20×3200
20 3200 2°30' 7 20~800 37 25500 4180×3330×2700
HSH20×4000
20 4000 2°30' 6 20~800 37 29000 4980×3480×2830
HSH25×2500
25 2500 2°30' 8 20~800 45 24000 3480×3430×2700
HSH25×3200
25 3200 2°30' 7 20~800 45 32000 4180×3430×2700
HSH25×4000 25 4000 2°30' 6 20~800 45 39500 4980×3580×2800
HSH32×2500
32 2500 6 20~800 55 33000 3760×4405×3150
HSH32×3200
32 3200 6 20~800 55 40500 4590×4405×3150
