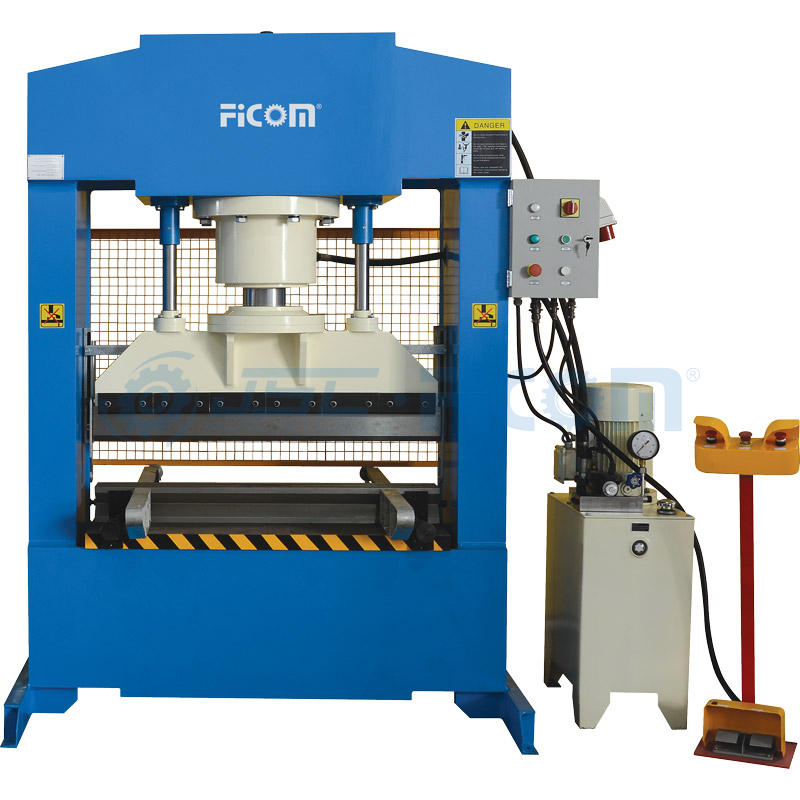

HP-30/HP-50/HP-100 Hydraulic Press

· Hydraulic press include replaceable top tools V-block and support table with stops.
· Table can be lifted through a chain driven by the main cylinder.
· Micro-switch for traverse adjustment.
· Operating modus:semi-automatic, fully.

Quantity:
  • HP-30/HP-50/HP-100
  • FICOM
Overview

HP-30

Technical Parameters
Model No. A B C D E F
HP-30 500mm 160mm 490mm 1460mm 1100mm 450mm
HP-50 800mm 200mm 540mm 1750mm 1300mm 550mm
HP-100 1000mm 270mm 540mm 1950mm 1550mm 750mm


Model No. HP-30 HP-50 HP-100
capacity 30T 50T 100T
power 2.2Kw 3.0Kw 3.0Kw
piston stroke 220mm 220mm 220mm
N.W./G.W 460/650Kg 960/1000Kg 1220/1420Kg
packing size 1160×550×1600mm 1500×650×1950mm 1840×770×2250mm
