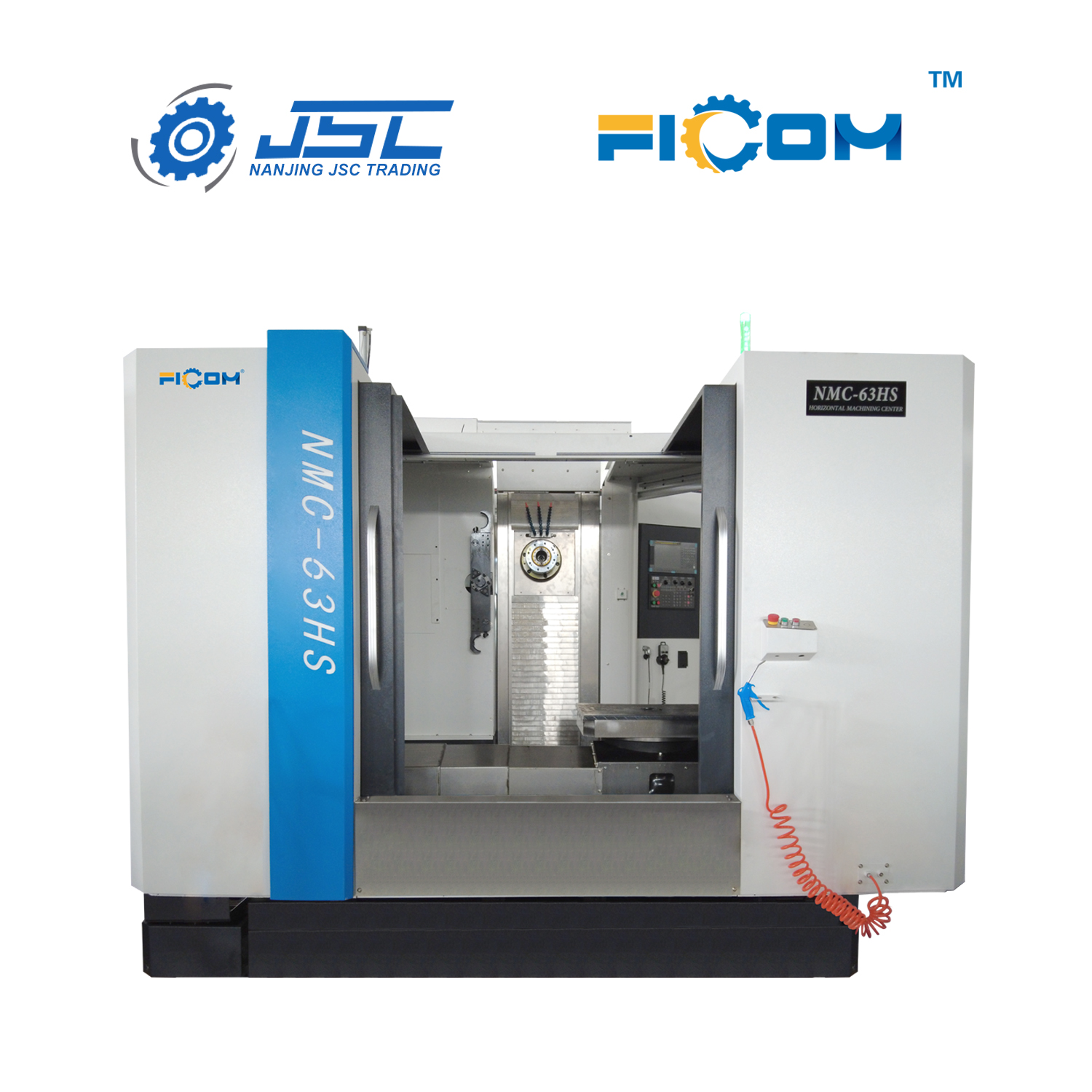

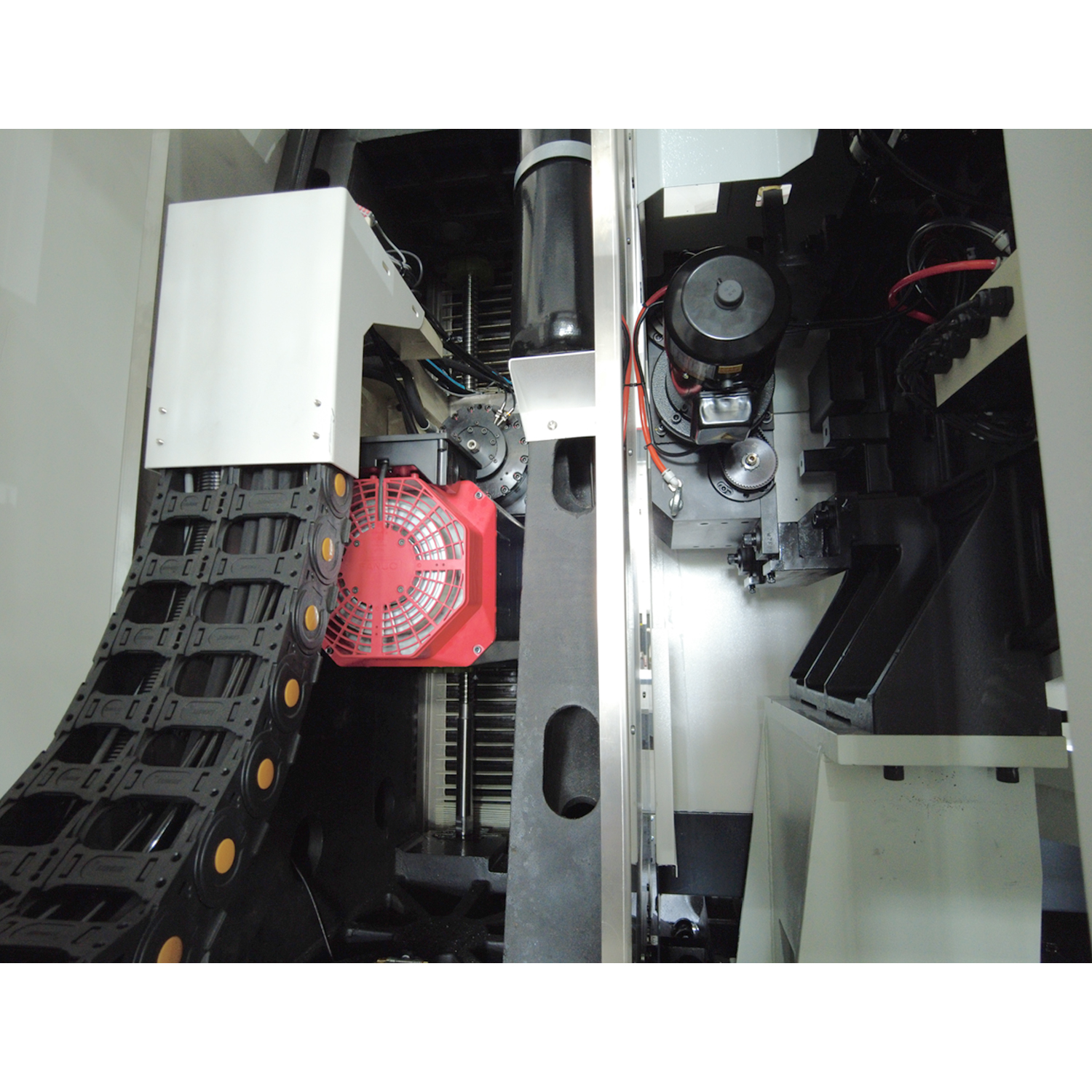

HMC-63HS Horizontal Machinig Center

Specification

Unit

NMC-63HS
(Single table)

NMC-63HS
(APC)

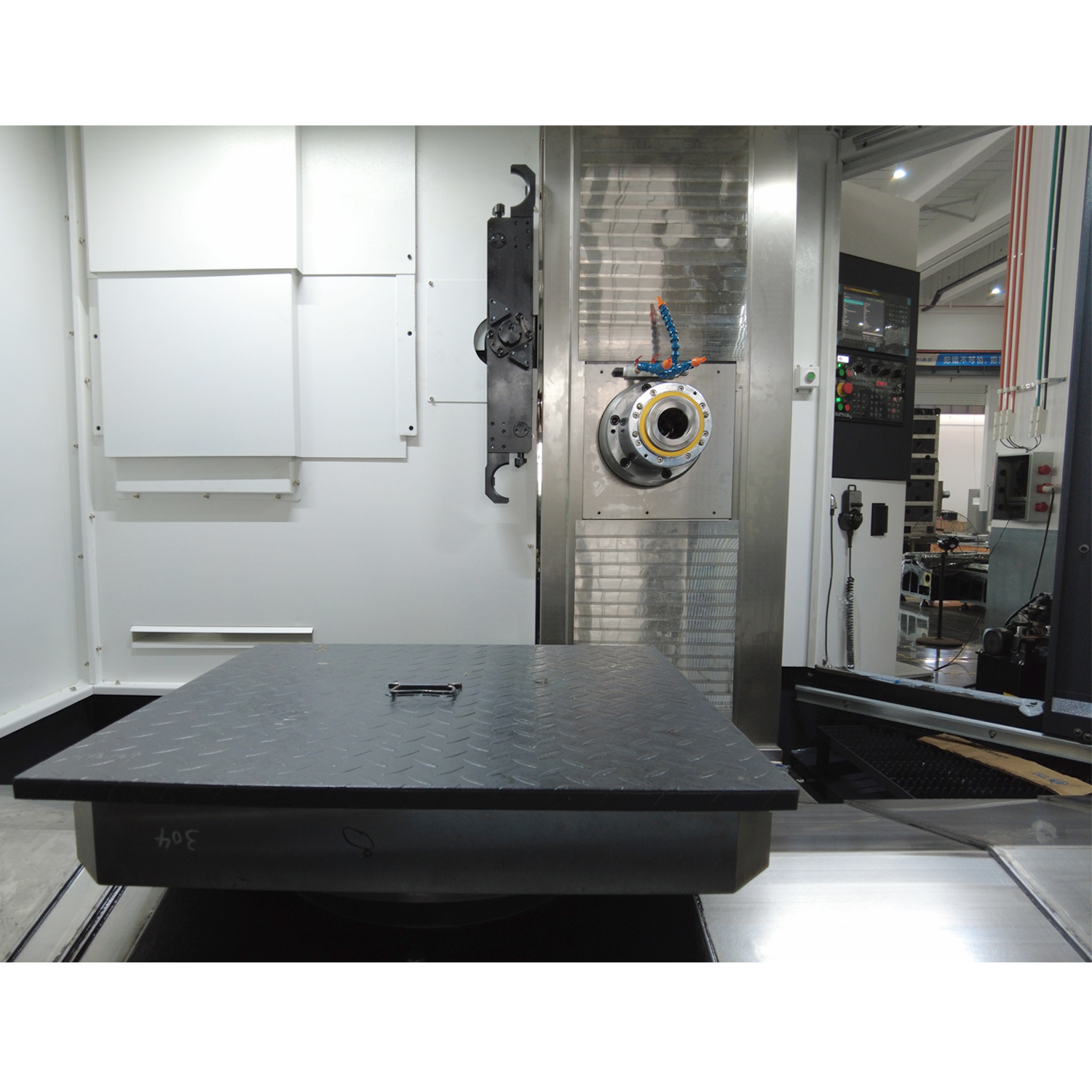

Worktable size (W×L)

mm

630×700

2-630×630

Table indexing number/pallet exchange time

°

STD:1°×360 Indexing turntable, OPT: 0.001°

Table form (,No.*screw hole)

mm

STD:5-22x125, OPT: 24*M16

Max.loading of worktable

kg

1500

850

Max. Workpiece swing diameter on worktable

mm

Φ1400

Φ850

APC changing time/method

Sec

/

25/rotary

Distance from spindle center to worktable

mm

120~870

0~750

Distance from the spindle front end to worktable center

mm

130~1030

X/Y/Z  axis travelling

mm

1050/750/900

X/Y/Z guideway

Heavy Duty Linear Rolling Guide

X/Y/Z quickly move speed

m/min

24/24/20

Cutting feed speed

m/min

0.005~10

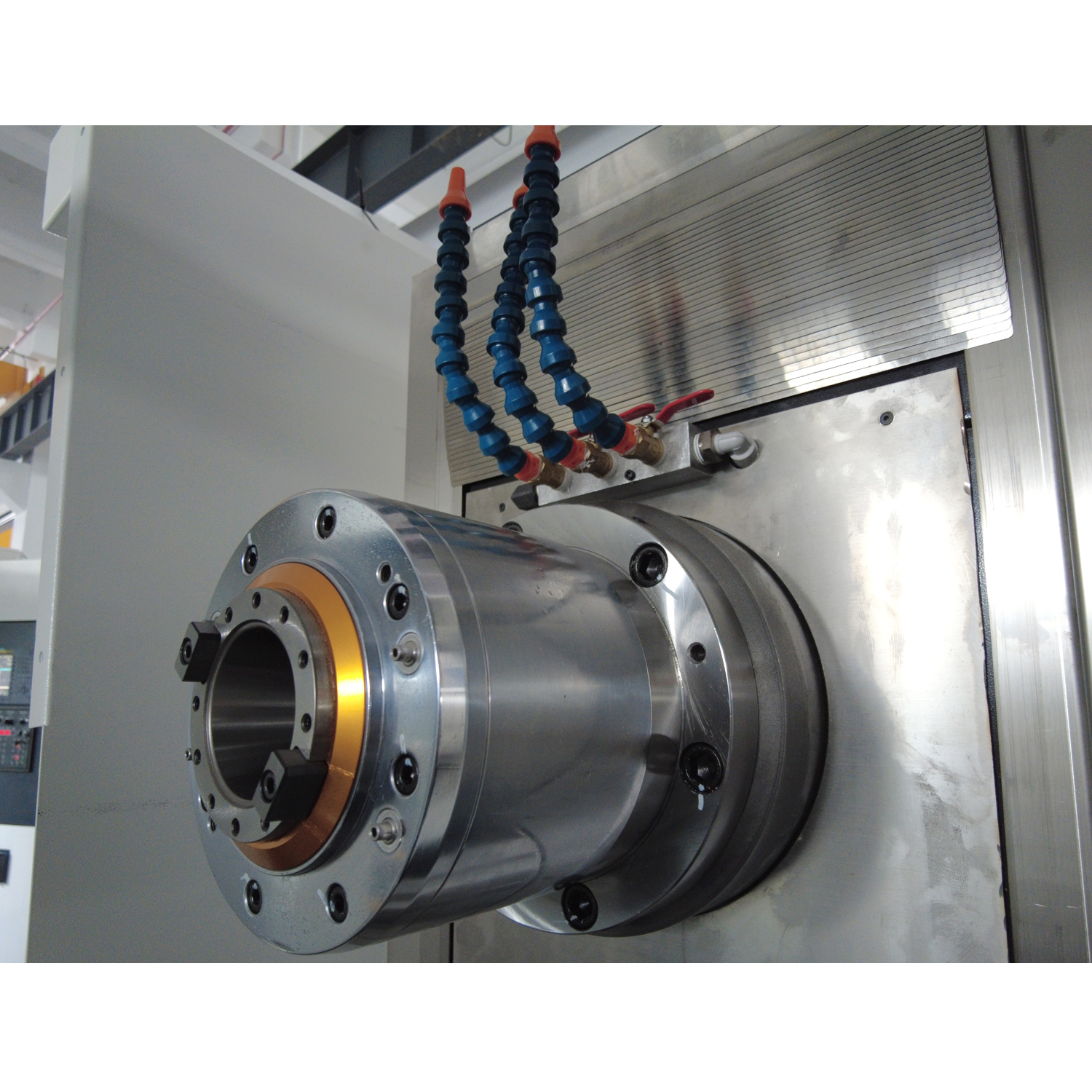

Spindle motor power

kw

15/18.5 (S1/S2-15min)

Spindle output torque

Nm

191/315(S1/S2-15min)

Spindle speed range

r/min

30~6000

Tool magazine capacity/form

pcs

30

Shank form

BT50

Max.tool weight

kg

18

Max. tool size (diameter/length)

mm

Φ110(adjacentΦ200)/400

Tool change time (tool to tool) / tool change method

Sec

5 / Random

X/Y/Z axis position accuracy

mm

VDI: 0.012/0.012/0.012, JIC: ± 0.005

X/Y/Z axis repeat position accuracy

mm

VDI: 0.008/0.008/0.008, JIC: ± 0.003

Turntable position accuracy/repeat position accuracy

″

10″/5″

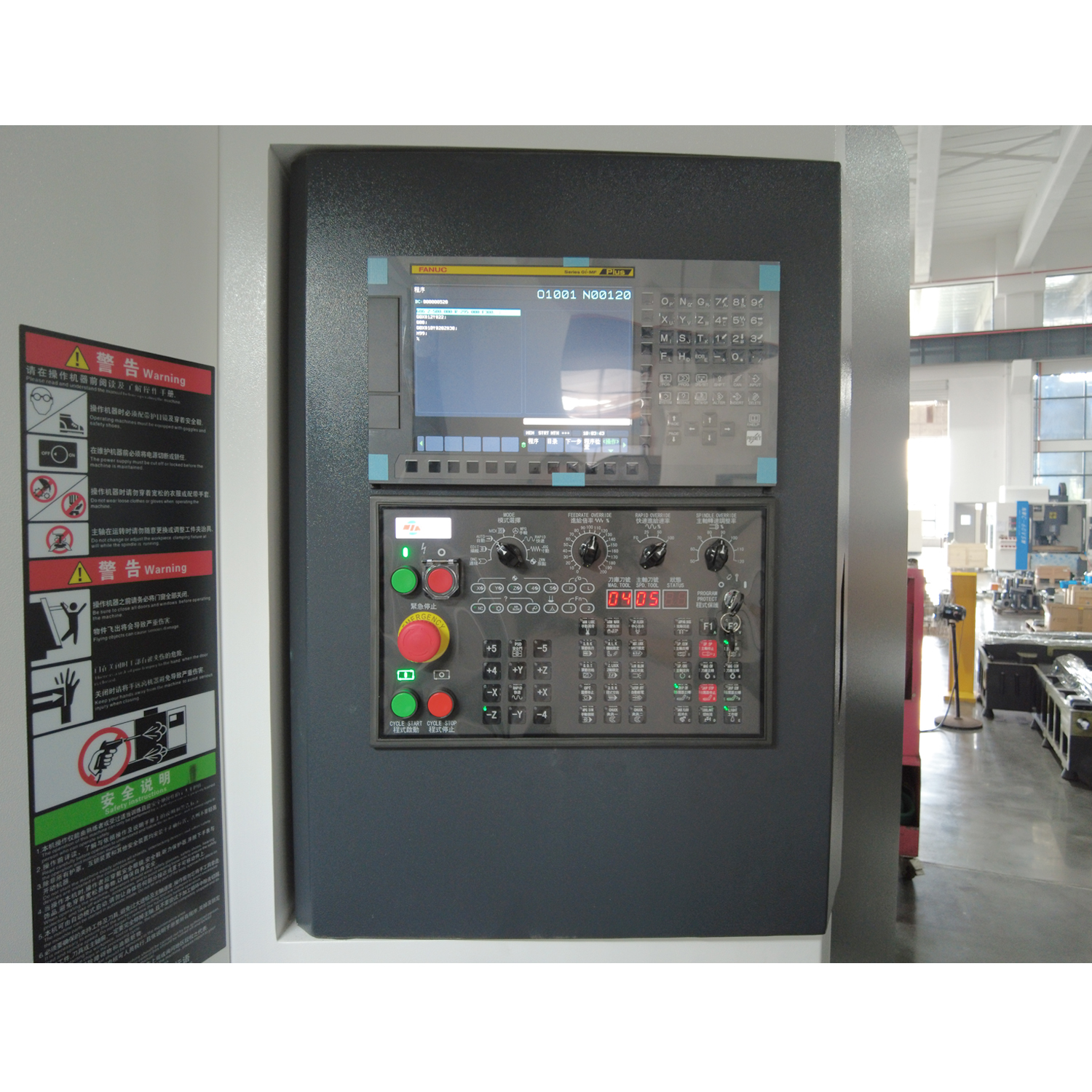

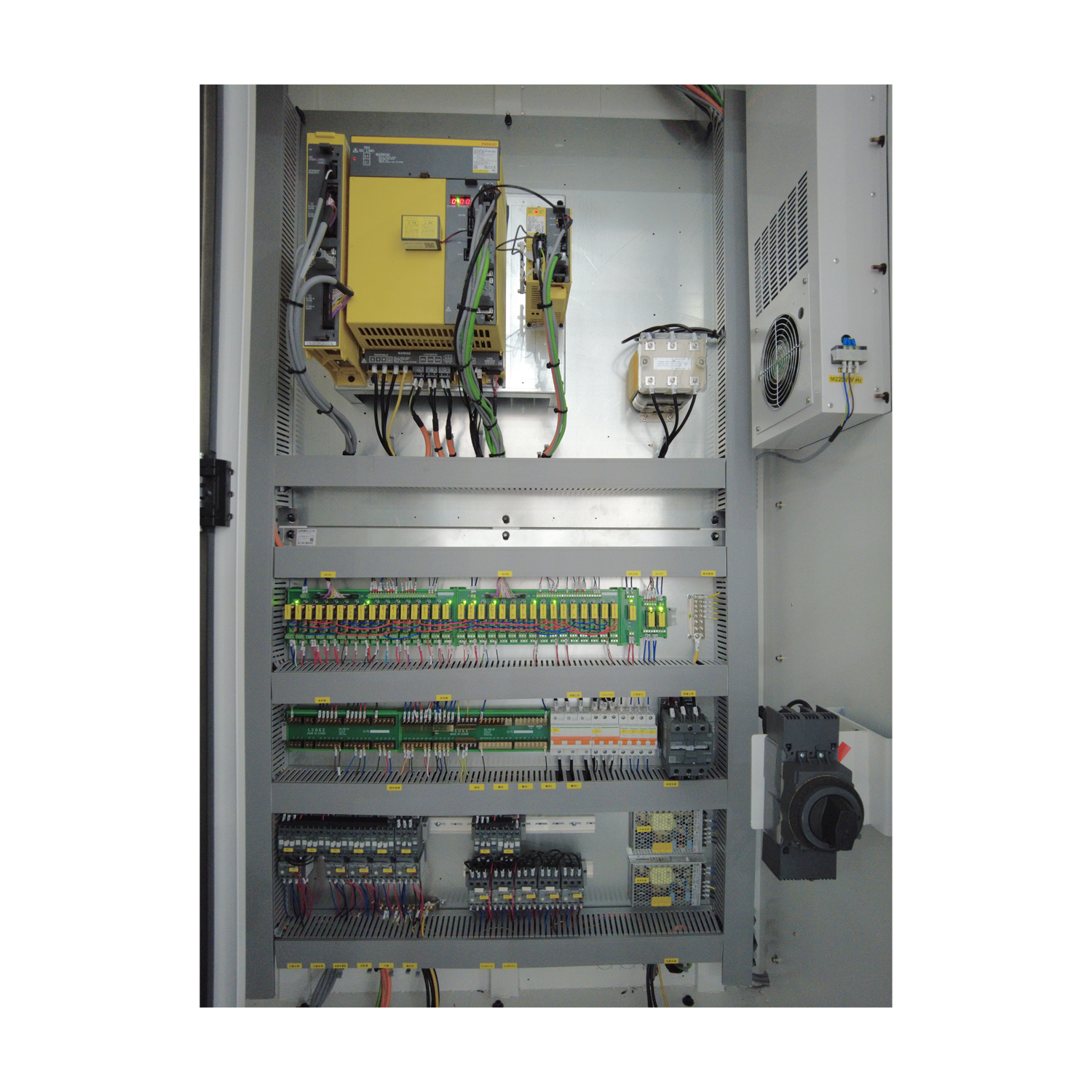

CNC system display

″

FANUC 0i-MF plus, 10.4″ LCD/MDI

Air pressure

MPa.

0.5~0.7 (flow：500L/min)

Electricity demand

kva

30  (three-phase AC 380V± 10%,50Hz± 1Hz)

Machine size (L×W×H)

mm

3850*3550*3200

5050x3550x3200

Machine weight

kg

12500

13000
