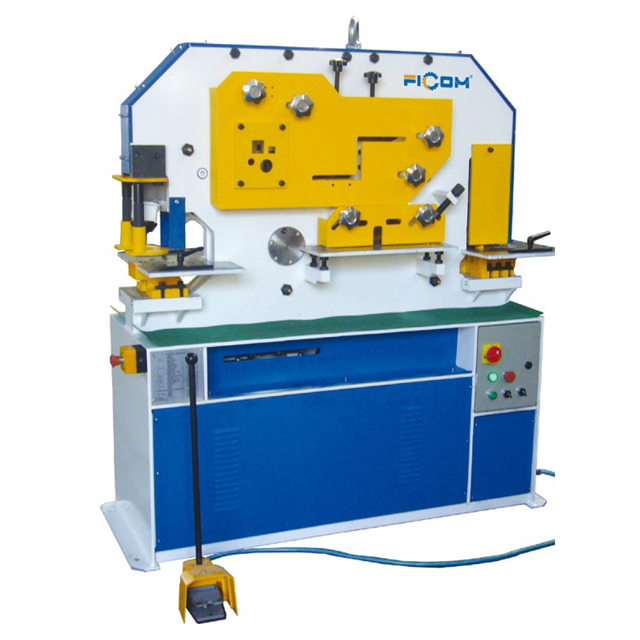

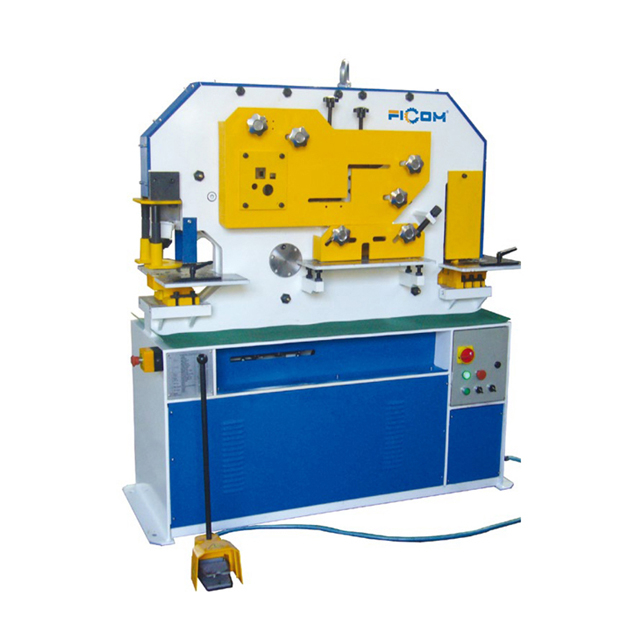

HIW-40/HIW-45/HIW-60 Iron Worker

· This kind of machine is the latest iron workers in our country, which adopt five-stage hydraulic transmission through repeated beam movement swing. The whole machine is reasonable structured, light, low noise and easy to take.
· The tool adopt whole-structure compact designing, setting five-stage. It is and ideal equipment for cutting angle, round, flat bar, punching, joist, as well as notching, channel, equipped with related stop device for cutting.
· The fix device can be adjusted by helical gear transmission, simple and convenient.

Availability:

Quantity:



Inquire Add to Basket

Model:
HIW-40/HIW-45/HIW-60
Brand:
FICOM

Product Description

50Overview

Technical Parameters

Model No.		HIW-40	HIW-45	HIW-60
working pressure		400Kn	450Kn	600Kn
max. cutting thickness		8mm	10mm	12mm
max. cutting length		300mm	300mm	300mm
tensile strength of sheet metal		≤450N/mm²	≤450N/mm²	≤450N/mm²
shear angle		7deg	7deg	7deg
stroke of ram		32mm	50mm	55mm
stroke times		10min	12min	15min
depth of throat		175mm	175mm	220mm
max. capacities		26×10mm	24×12mm	28×15mm
main motor		3Kw	3Kw	4Kw
length of machine tool		1150mm	1450mm	1520mm
width of machine tool		560mm	590mm	590mm
height of machine tool		1550mm	1620mm	1700mm
G.W.		805Kg	1055Kg	1400Kg
punching metric	max. capacities	26×10mm	24×12mm	28×15mm
	max. stroke length	32mm	50mm	55mm
	throat depth standard	175mm	175mm	220mm
	largest hole(optional)	60mm	60mm	100mm
shearing	flar bar	200×10mm	200×12mm	200×15mm
	alternative	300×8mm	300×10mm	300×15mm
	blade length	318mm	318mm	308mm
	angle flange trim	80×10mm	80×10mm	80×10mm
angle cutting	at 90°cut	80×8mm	100×10mm	125×12mm
section cutting	round / square bar	30/25mm	30/30mm	40/35mm
section cutting	channel / beam	65×40mm	80×43mm	100×48mm
notching	material thickness		8mm	10mm
	width		35mm	42mm
	depth: vee-rect.		60-90mm	60-90mm
	angle flange		80×8mm	100×10mm
