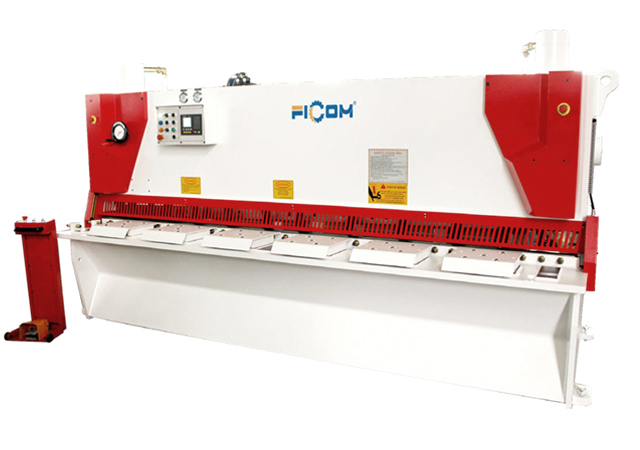

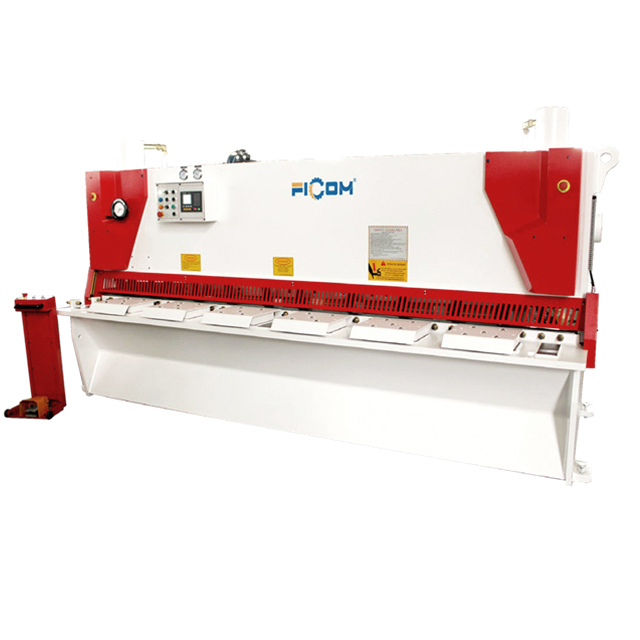

HG NC Hydraulic Guillotine Shear

GUILLOTINE SHEAR FEATURES
• Cutting angle adjustable, which professional for cutting narrow strips
• Cutting gap easy to adjust, fast to operate
• Cutting blade four edges can be exchanged at will
• Roller type guide way, no gap between guide way, which can be more accurate for cutting

Availability:

Quantity:



Inquire Add to Basket

Model:
HG NC Hydraulic Guillotine Shear
Brand:
FICOM

Product Description

Overview

-1-大

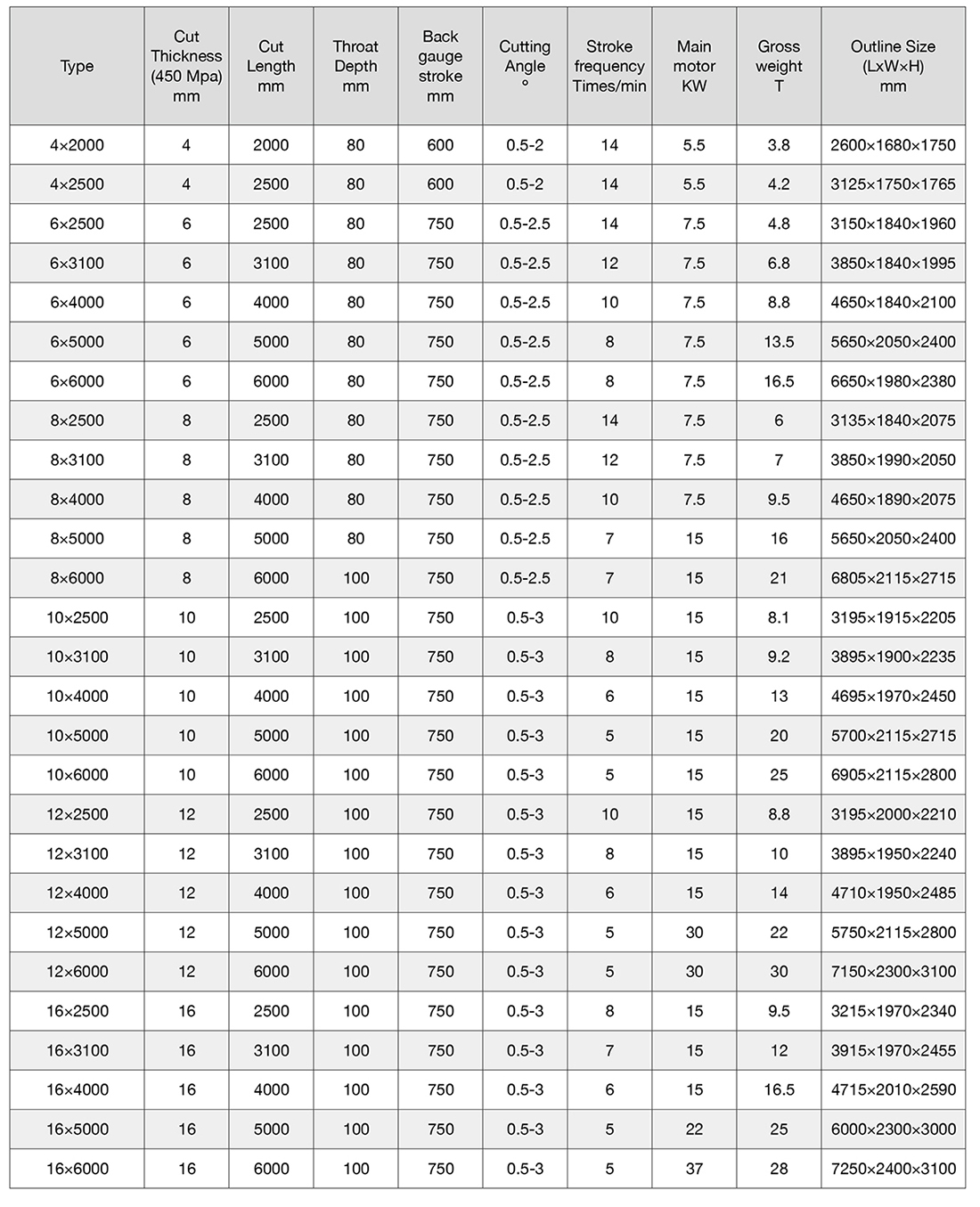

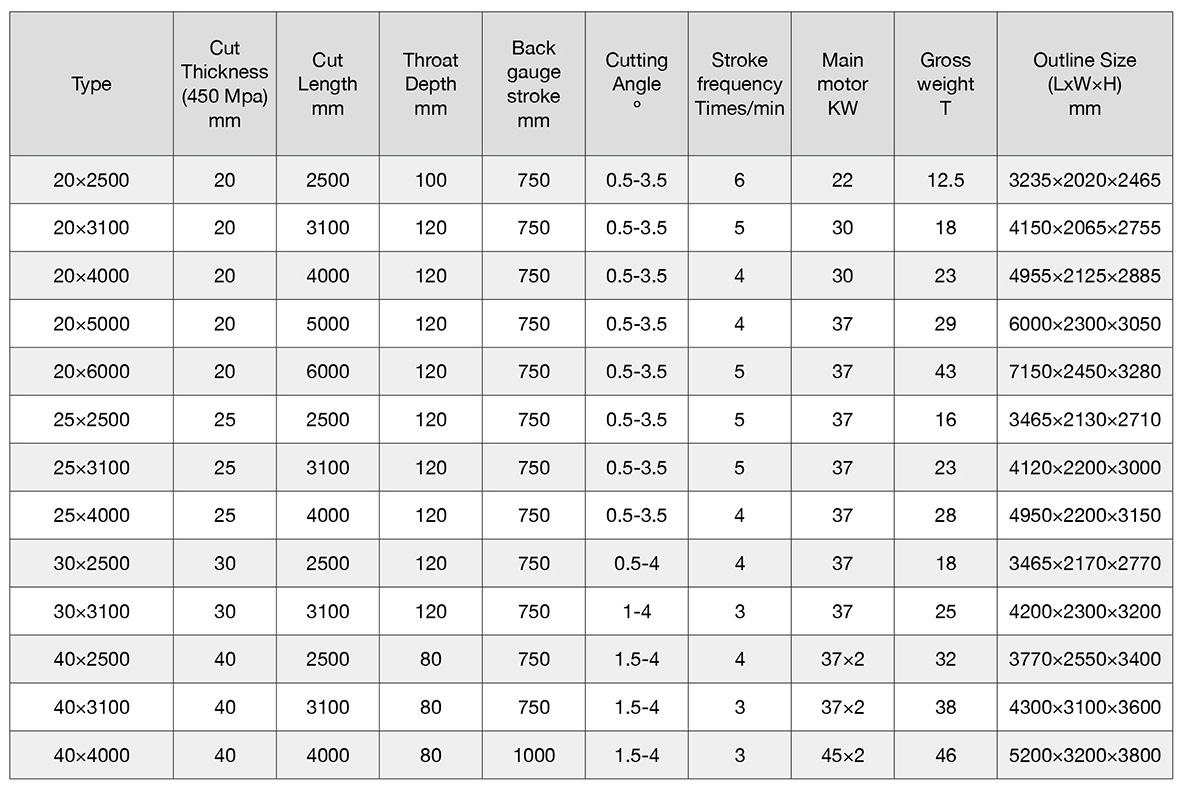

Technical Parameters

Advantages And Difference

Cutting linear accuracy: ±0.05mm		Backgauge speed:100mm/s
Backgauge repeat positioning accuracy: ±0.05mm		Backgauge optional positioning accuracy: ±0.08mm
FICOM revolution technology improve the shearing machine cutting		Speed: HG with Shearing Speed (20-60 times/min) much faster than normal sheet metal shearing machine shearing speed (10-20 times/min)
