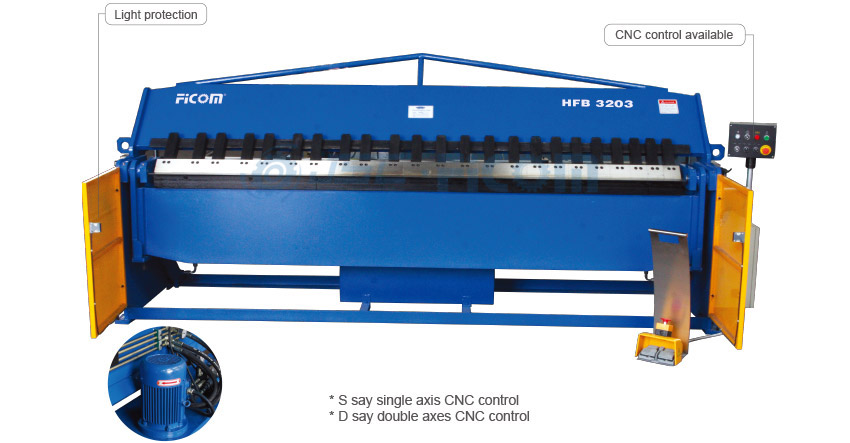

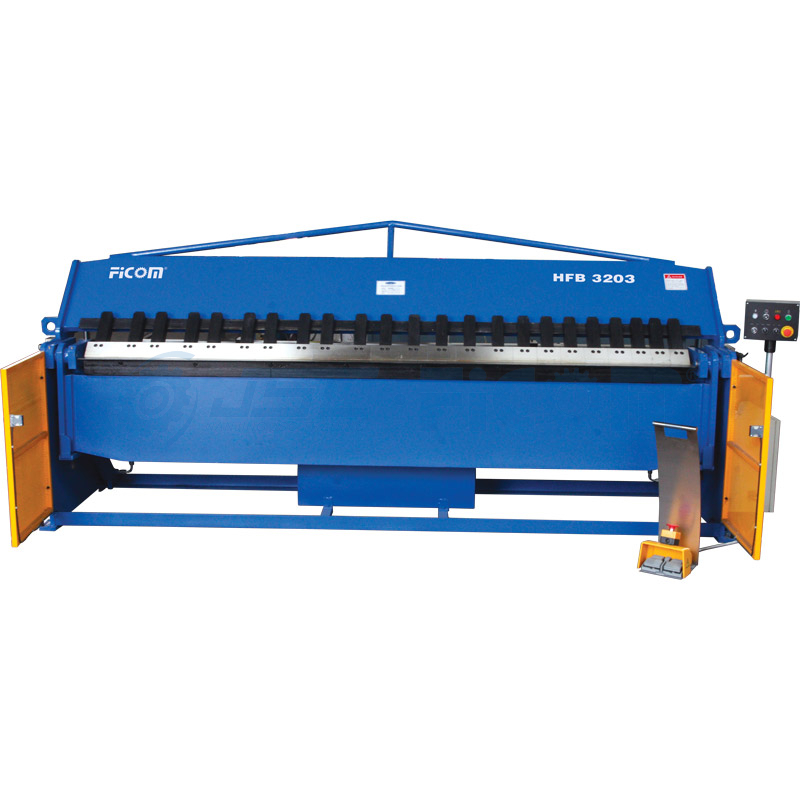

HFB 2503/S/D HFB 3203/S/D Pan Folder

· Hydraulic folder is a high quality, advanced machine developed over several years experience in machine manufacturing. The folder has a welded steel frame and has vibration treated material to reduce internal stress. Thus it is durable, rigid and difficult to deform.
· The machine if fully hydraulic controlled, quiet and easy to operate. It is suitable for box type products with its split sectional ciamplers. Maximum opening is up 110mm, upper claper auto retraction and fast angle adjustment is available. It is specially suitable for use in the kitchen ware, hardware and the furniture making industry.
Availability:
  • HFB 2503/S/D HFB 3203/S/D

  • FICOM

Overview

HFB

Technical Parameters
Item Performance
HFB 2503/S/D HFB 3203/S/D
folding thickness 3mm 3mm
folding length 2500mm 3200mm
evolving angle of the bending beam 120° 120°
max. lift of the upper beam 110mm 110mm

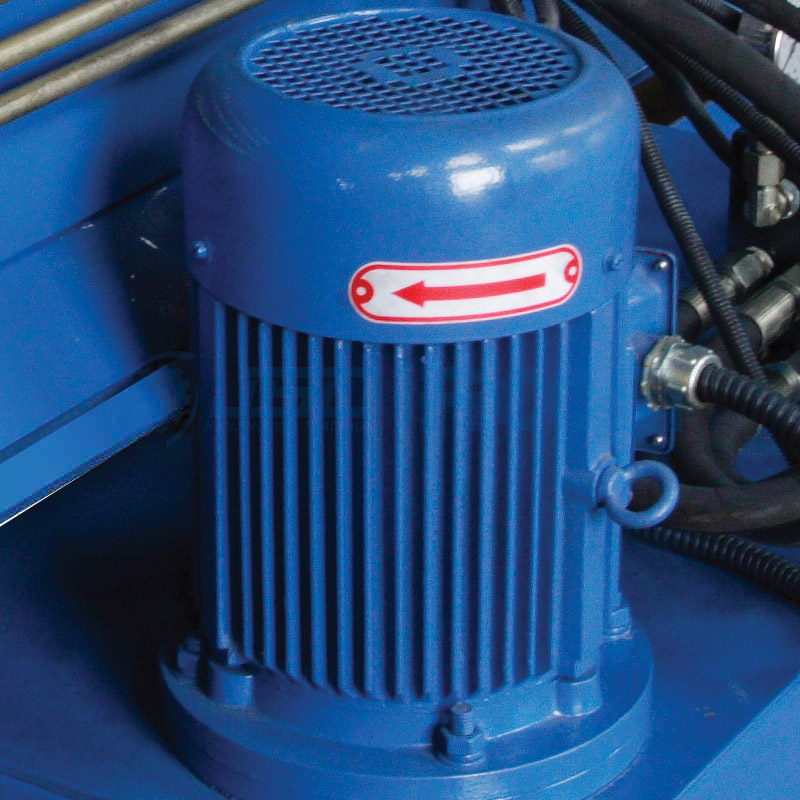

main motor 4Kw 4Kw

model size
L. 3700mm 4400mm
W. 1640mm 1640mm
H. 1650mm 1650mm
G.W.  2750Kg 3350Kg
