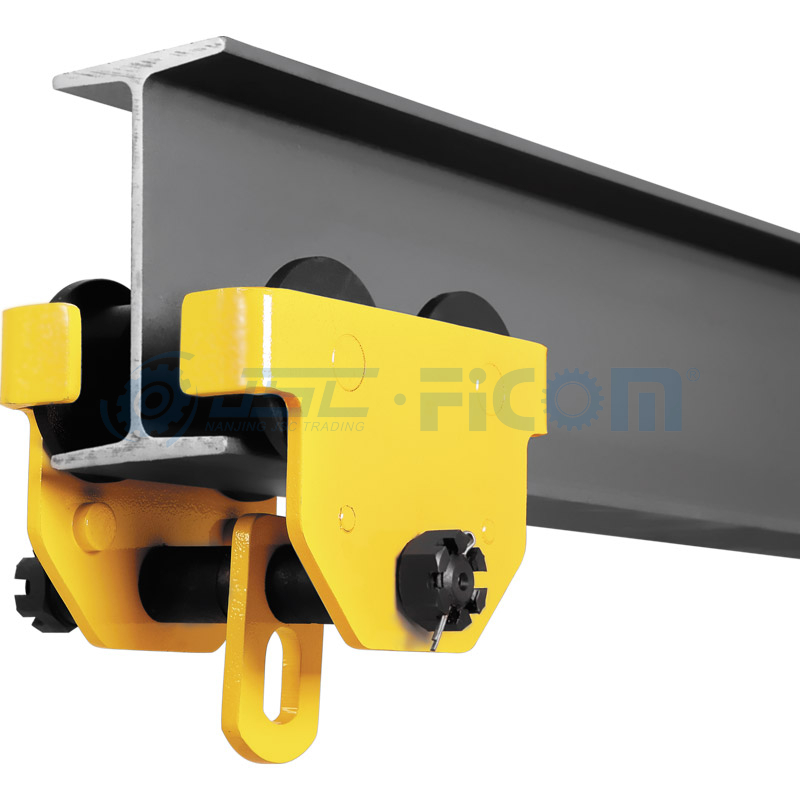

Gear Trolley And Manual Trolley Model: GT And Model: MT (Capacity: 500-10000kg)

It has excellent rolling features due to machined steel wheels mounted on prelubricated,encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles(e.g.INP,IPE and IPB)
The trolley wheels are desighed for a max,beam profile incline of 14%(DIN 1025-part 1),excellent rolling features are guaranteed by prelubricated,encapsulated ball bearings.
Trolleys and tested with overload and supplied with a test certificate.
For geared trolley,the standard operation ch in length in 3 meter,other length is available upon request.

Quantity:
  • GT and MT
  • FICOM
Overview

Capacity: 500-10000kg

*Square type with collision avoidance

49

The trolley enables the exact positioning or easy traversing of large loads with eiyher manual or powered hoisting equiment.

Technical Parameters

Capacity

(kg)

Model


Beam Flange

Width F

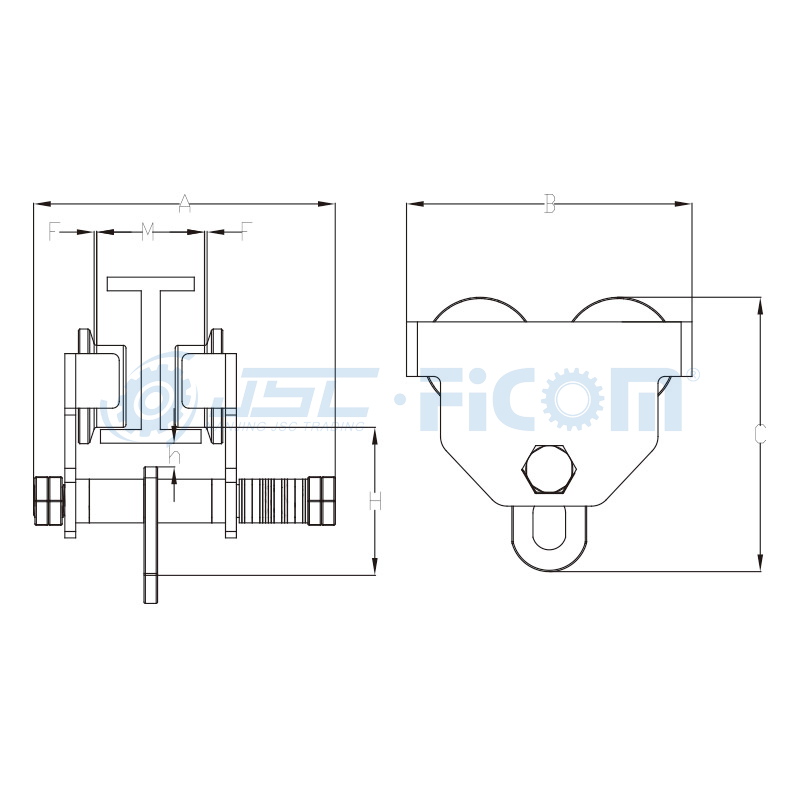

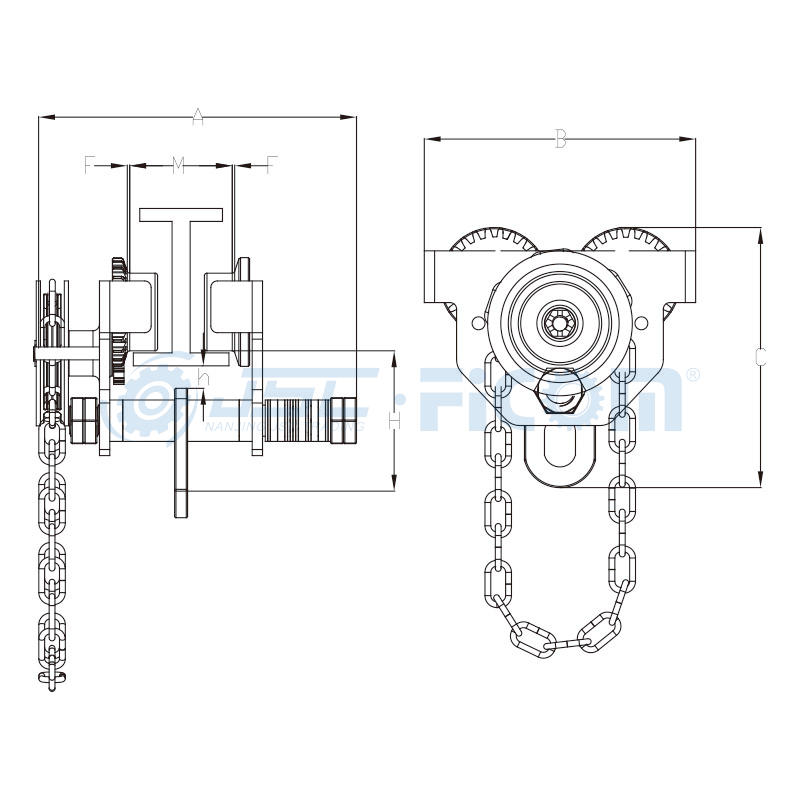

Size Dimension (mm)

Net Weight

(kg)

A B C H F
500 GT0.5 50-125 248 195 180 115 ≈2 11
1000 GT01 75-125 280 236 211 115 ≈3 14.5
2000 GT02 100-150 318 273 236 130 ≈3 19.5
3000 GT03 100-150 340 320 295 164 ≈3 40
5000 GT05 125-175 365 366 334 177 ≈3 55
10000 GT10 150-175 410 389 460 237 ≈3 98
500 MT0.5 50-125 210 195 180 115 ≈2 6.8
1000 MT01 75-125 242 236 211 115 ≈3 8.7
2000 MT02 100-150 280 273 236 130 ≈3 13.5
3000 MT03 100-150 300 320 295 164 ≈3 36
5000 MT05 125-175 316 366 334 177 ≈3 50
10000 MT10 150-175 343 389 460 237 ≈3 90
