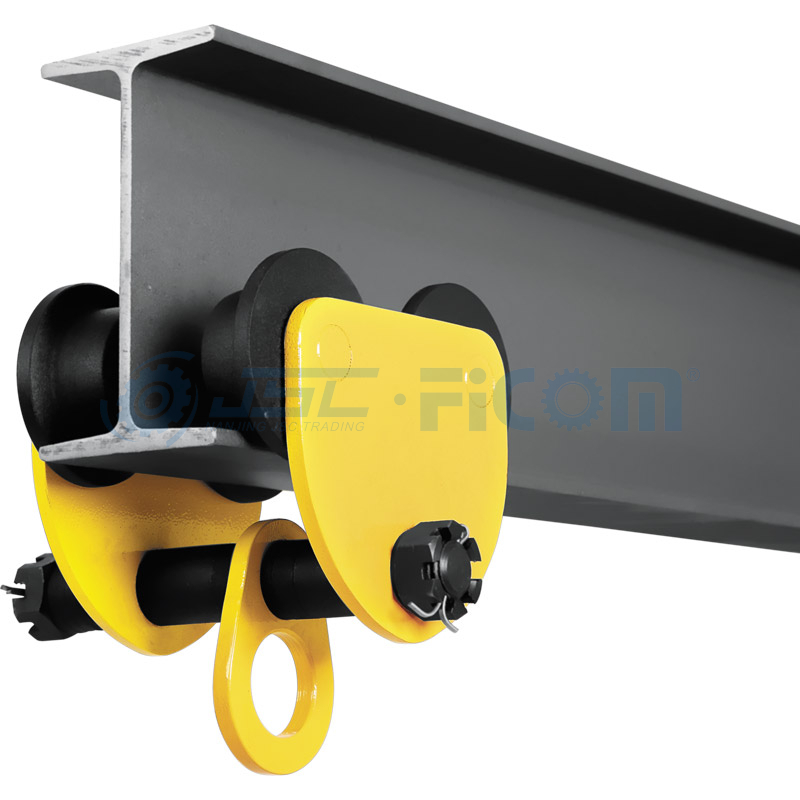

Gear Trolley And Manual Trolley Model: GT-A and Model: MT-A (Capacity: 500-10000kg)

Extremely easy work-site installation.
Compatible with I beam and H beam rails.
High quality sealed ball bearings.
Light selfweight and compact.
Easily travel over minor rail surface irregularities.
For geared trolley,the standard operation chain length is 3 meter,other length is available upon request.
Availability:
Quantity:
  • GT-A and MT-A

  • FICOM

Overview

Capacity: 500-10000kg

*Round type without collision avoidance

50

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.

Technical Parameters

Capacity

(kg)

Model


Beam Flange

Width F

Size Dimension (mm)

Net Weight

(kg)

A B C H F
500 GT0.5A 50-125 206 174 180 118 ≈2 8
1000 GT01A 75-125 271 206 222 120 ≈3 15
2000 GT02A 100-150 308 240 267 132 ≈3 18
3000 GT03A 100-150 342 279 319 181 ≈3 35
5000 GT05A 125-175 384 318 384 219 ≈3 54
10000 GT10A 150-175 410 721 450 220 ≈3 100
500 MT0.5A 50-125 200 174 180 118 ≈2 6
1000 MT01A 75-125 220 206 222 120 ≈3 8
2000 MT02A 100-150 260 240 267 132 ≈3 13
3000 MT03A 100-150 285 279 319 181 ≈3 24
5000 MT05A 125-175 338 318 384 219 ≈3 44
