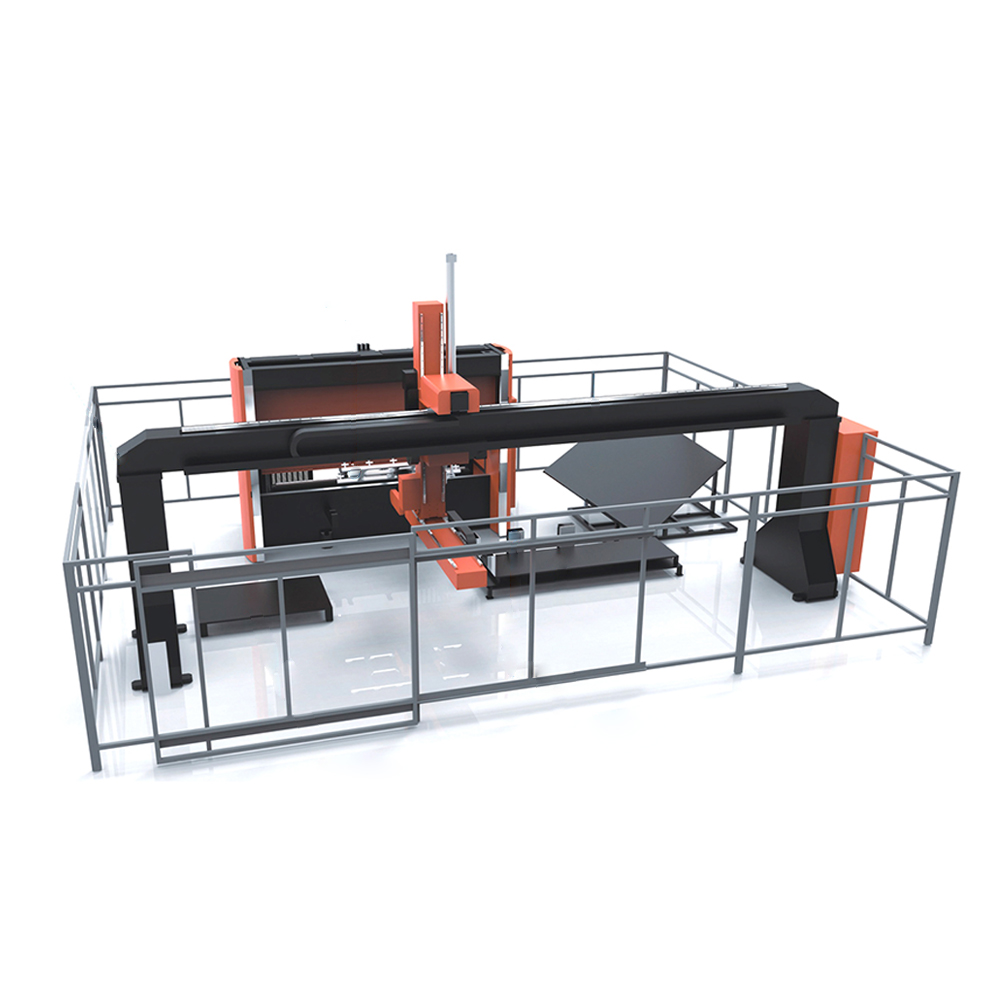

Gantry-Type Press Brake Robot

The Gantry-Type Press Brake Robot automates the entire bending process, reducing labor costs while increasing productivity and bending accuracy. With flexible handling capabilities, reliable performance, and seamless integration into smart manufacturing lines, it is an ideal solution for modern sheet metal fabrication and industrial automation.

Availability:

Quantity:



Inquire Add to Basket

Model:
Gantry-Type Press Brake Robot
Brand:
FICOM

Product Description

Robot Linear Track Specifications

Item	Unit	HR30	HR50	HR80	HR130
Rated Loading Capacity	kg	30	50	80	130
X-axis Travel	mm	5000	6000	6000	6000
Y-axis Travel	mm	1000	1250	1600	1600
Z-axis Travel	mm	1000	1350	1350	1350
A-axis Travel	Degree	±92.5	±92.5	±92.5	±92.5
C-axis Travel	Degree	±182.5	±182.5	±182.5	±182.5
Air Supply Pressure	MPa	0.55	0.55	0.55	0.55
Total Motor Power	kW	9	11.5	14	16
Machine Overall Dimension (Length)	mm	7110	8370	8370	8370
Machine Overall Dimension (Width)	mm	2500	2980	3480	3480
Machine Overall Dimension (Height)	mm	3680	4180	4180	4180
Machine Weight	kg	2500	3000	3500	4000
