GDF Flange Duct Automatic Line 7

GDF Flange Duct Automatic Line 7 is special design for Eroupe duct flange Standard(DW-144), it is modular design with different flexible workstations. It produces duct from coil stock to ready-to-assemblear “ L ”, ” U ”, ” 口 ” section with formed connections including Pittsburgh lock, beaded and Duplex GDF flange, Automatically ending “ L ”, ” U ”, ” 口 “ section and seam close, The customer can choice different function base on different require.
This line uses an enhanced rack Industry CNC control system and our special duct manufacture software. PLC&computer control, you just need input the duct data, Production line can make your production automatically very well ,Can help you save labor cost and material.
Flange height can be customized.

Quantity:
  • DAL-7
  • FICOM
Overview

Specifications:

  • Coil Thickness: 0.4-1.2mm

  • Part Width: 150-1300mm. 1500mm options

  • Part Length Tolerance: ±0.5mm

  • Diagonal Tolerance:  ±0.8mm

  • Processing Speed: Up to 18M/min

  • Driven: Hydrulic drive

  • Power: 32KW

  • Beading Section: Satandard

  • Notching and hole Punching: FICom

  • Suitable for GDF, TDC2, Snop lock and Pittsburgh lock

  • CNC Controls: Japan Mistsbishi

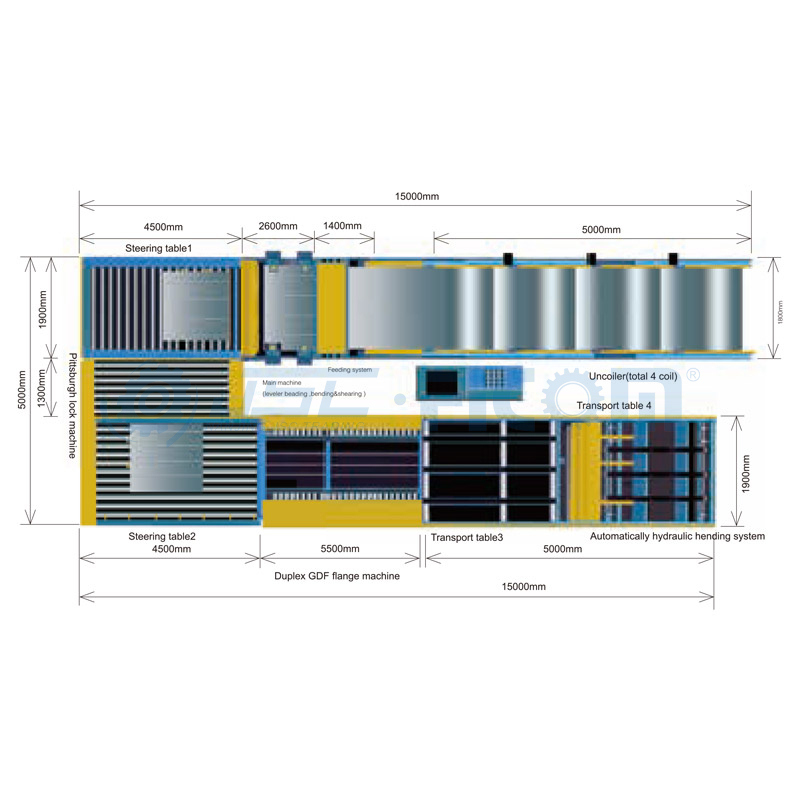

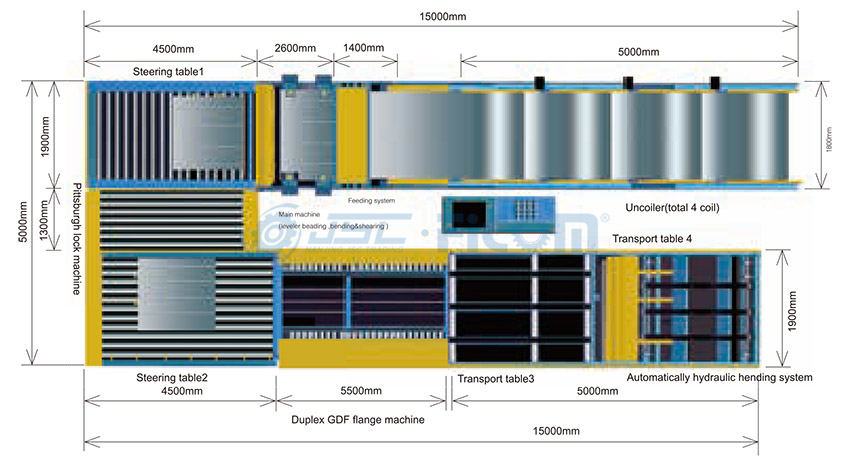

05A

Technical Parameters
Model

Thickness

(mm)

Tolerance

(mm)

Max Speed

(m/min)

Coll Width

(mm)

DAL-7(1300) 0.4-1.2 ±0.5 18 1300
DAL-7(1500) 0.4-1.2 ±0.5 18 1500
