G-20 / G-25 / G-30 / G-35 / G-40 GDF Flange Forming Mchine

European standard recommended the use of slide-on flange because of its strength. hollow double section and the ability to hide the “ L ” type corner pieces. GDF integrated flange is widely applied in Europe as a kind of quick installation duct flange. It shares common advantages with TDF flange-well seal, free of jointing and rivet. GDF flange is integrated with duct, connect with 4 bolts and special duct corner and clamp. One side forms GDF flange and the other forms clip. Or roll forming both GDF flanges in one machine as different model numbers.

Quantity:
  • G-20 / G-25 / G-30 / G-35 / G-40
  • FICOM
Overview

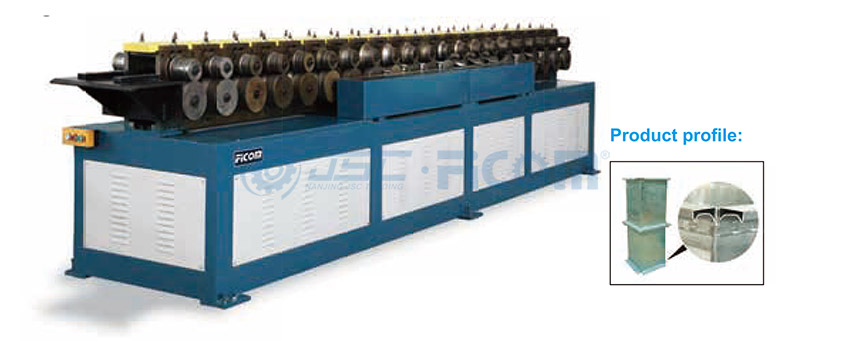

08


Technical Parameters

Model

Coil Thickness

(mm)

Shape

A "size"

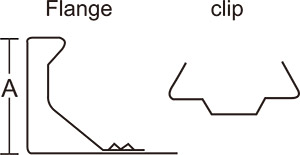

G-20 0.6-0.8 (22-25ga) 未标题-1
20±0.5
G-25 25±0.5
G-30 0.8-1.2 (18-22ga) 30±0.5
G-35 35±0.5
G-40 40±0.5
G-20/30

G-20: 0.6-0.8 (22-25ga)

G-30: 0.8-1.2 (18-22ga)

未标题-2 20±0.5
30±0.5
G-25/35

G-25: 0.6-0.8 (22-25ga)

G-35: 0.8-1.2 (18-22ga)

25±0.5
35±0.5

PDF Flange Forming Machine
Model

Coil Thickness

(mm)

Shape

A "size"

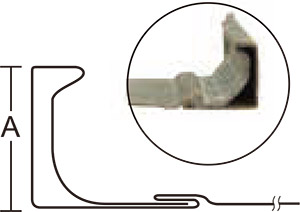

P-20 0.6-0.8 (22-25ga) 未标题-3 20±0.5
P-25 25±0.5
P-30 0.8-1.0 (20-22ga) 30±0.5
P-35 35±0.5
P-40 40±0.5
P-20/30

P-20: 0.6-0.8 (22-25ga)

P-30: 0.8-1.0 (20-22ga)

20±0.5
30±0.5
P-25/35

P-25: 0.6-0.8 (22-25ga)

P-35: 0.8-1.0 (18-22ga)

25±0.5
35±0.5
