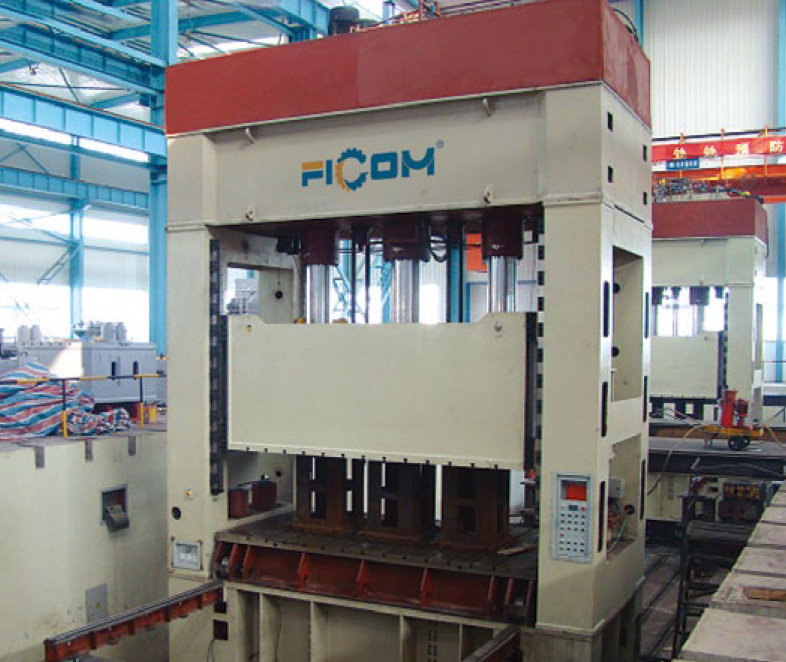

Framework-Type Single-Movement Hydraulic Press for Precision Sheet Metal Drawing

The Framework-Type Single-Movement Hydraulic Press is engineered for high-precision sheet metal drawing and stamping operations. Its rigid framework ensures minimal frame deflection, maintaining consistent stroke accuracy during repeated operations. This single-movement design enables smooth, controlled ram descent, which is crucial for forming complex geometries without material stress or springback.

Equipped with a high-capacity hydraulic system, the press allows precise adjustment of pressure and stroke speed. The control system includes pressure sensors and an adjustable dwell function, ensuring optimal forming quality for a variety of metal types, including stainless steel, aluminum alloys, and high-strength industrial sheets.

The press frame is constructed from reinforced steel, treated for corrosion resistance and thermal stability. Large guideways maintain parallelism and prevent uneven wear, extending the life of both the tooling and the machine. Safety features include hydraulic overload protection, emergency stop controls, and fully enclosed operational panels, providing operator safety during high-tonnage applications.

Technical Advantages:

Single-movement hydraulic ram for precise stamping and drawing

Adjustable stroke and pressure control for versatile metal forming

Reinforced corrosion-resistant steel frame for durability

High-tonnage capacity with minimal frame deflection

Optional automation and feeding systems for high-volume production

Applications:
This press is ideal for industries requiring precision stamping, including:

Automotive panels and components

Appliance and electrical enclosures

Industrial machinery parts

Aerospace sheet metal forming

FAQ (People Also Ask):

Q1: How does a single-movement hydraulic press improve sheet metal drawing accuracy?
The single-movement design ensures uniform ram motion, preventing material distortion and enabling consistent depth across complex sheet geometries.

Q2: Can this press handle high-strength or thick metal sheets?
Yes, the reinforced framework and high-capacity hydraulic system allow processing of high-strength metals and thick sheets without compromising stroke precision.

Q3: What maintenance is required to ensure long-term performance?
Routine tasks include hydraulic fluid inspection, guideway lubrication, pressure sensor calibration, and regular checks of the frame for wear.

Q4: Is the press suitable for small-batch precision stamping?
Absolutely. Its adjustable pressure and stroke settings make it ideal for both low-volume precision tasks and high-volume industrial production.

Q5: What safety measures are included in the design?
Hydraulic overload protection, emergency stops, pressure monitoring, and fully enclosed operator panels provide comprehensive safety during high-tonnage operations.
