Facing Lathe: The Ideal Machine for Large-Diameter Heavy-Duty Machining

Modern heavy industries require machine tools capable of handling oversized workpieces with exceptional precision and reliability. Components such as pipe flanges, pressure vessel ends, wind power hubs, large gears, rollers, and steel mill parts often have large diameters but relatively short lengths, making them inefficient or impossible to machine on conventional CNC lathes.

A Facing Lathe is specifically engineered to solve this challenge. Its unique structure provides greater stability, higher cutting forces, and easier loading of oversized components while maintaining excellent machining accuracy.

For manufacturers seeking higher productivity and lower machining costs, a Facing Lathe is an essential investment.

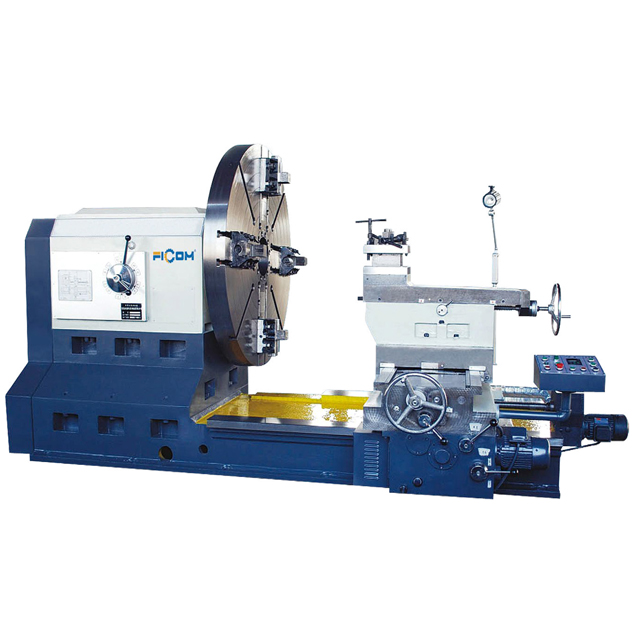

What Is a Facing Lathe?

A Facing Lathe is a heavy-duty lathe designed primarily for machining the end faces, outer diameters, inner diameters, grooves, and threads of large-diameter workpieces.

Unlike conventional horizontal lathes, the spindle structure and machine layout allow extremely large workpieces to be mounted securely while reducing vibration during heavy cutting operations.

Typical machining operations include:

· Face turning

· External turning

· Internal boring

· Thread cutting

· Grooving

· Drilling

· Chamfering

· Taper turning

Its design makes it ideal for oversized parts that require high rigidity and precision.

Why Conventional Lathes Struggle with Large-Diameter Parts

As workpiece diameter increases, machining becomes more difficult.

Common challenges include:

· Poor rigidity during heavy cutting

· Excessive vibration

· Difficulty loading oversized parts

· Limited spindle torque

· Reduced machining accuracy

· Long setup times

· Increased tool wear

These issues often result in longer production cycles, inconsistent quality, and higher manufacturing costs.

A Facing Lathe is specifically built to overcome these limitations.

Key Advantages of a Facing Lathe

Superior Rigidity

Heavy-duty cast iron construction minimizes vibration during machining.

Greater rigidity allows:

· Higher material removal rates

· Better surface finish

· Longer tool life

· Stable cutting performance

Large-Diameter Machining Capability

Facing Lathes can easily process workpieces with extremely large diameters while maintaining high precision.

Ideal components include:

· Pipe flanges

· Valve bodies

· Pressure vessel heads

· Wind turbine components

· Large gears

· Steel rollers

· Bearing housings

High Torque for Heavy Cutting

Heavy-duty spindles deliver substantial torque at low speeds.

Benefits include:

· Deep cutting passes

· Reduced machining time

· Improved chip control

· Better machining efficiency

Improved Machining Accuracy

Advanced guideways, precision spindle systems, and rigid machine structures ensure consistent accuracy even under heavy cutting conditions.

Manufacturers benefit from:

· Better dimensional consistency

· Reduced rework

· Higher product quality

· Lower scrap rates

Easy Loading of Heavy Workpieces

Large components can be loaded more conveniently compared with traditional long-bed lathes.

This reduces:

· Setup time

· Crane operation complexity

· Labor requirements

· Production downtime

Common Applications of Facing Lathes

Facing Lathes are widely used in industries requiring precision machining of oversized components.

Oil & Gas

Typical parts include:

· Pipe flanges

· Wellhead equipment

· Valve bodies

· Pressure fittings

Power Generation

Applications include:

· Steam turbine components

· Generator housings

· Bearing covers

· Pump casings

Shipbuilding

Large marine components include:

· Shaft flanges

· Propeller hubs

· Marine bearings

· Coupling components

Steel Industry

Common workpieces:

· Mill rollers

· Large sleeves

· Heavy shafts

· Industrial drums

Heavy Equipment Manufacturing

Suitable components include:

· Excavator parts

· Mining equipment

· Large hydraulic cylinders

· Gear housings

Important Features to Consider When Choosing a Facing Lathe

Selecting the right machine depends on several factors.

Maximum Swing Diameter

Ensure the machine can accommodate current production requirements while allowing room for future expansion.

Spindle Motor Power

Higher spindle power supports more aggressive cutting and improved productivity.

Spindle Torque

Large-diameter machining requires high torque rather than high spindle speed.

Guideway Design

Heavy-duty guideways improve rigidity and machining stability.

CNC Control System

Modern CNC systems simplify programming and improve machining efficiency.

Popular controller options include Siemens, FANUC, Mitsubishi, and GSK.

Tool Capacity

Larger tool capacity reduces manual intervention and shortens production cycles.

Automation Compatibility

Manufacturers increasingly integrate:

· Automatic tool changers

· Hydraulic chucks

· Robotic loading systems

· Workpiece measurement systems

Automation improves consistency while reducing labor costs.

How a Facing Lathe Improves Manufacturing Efficiency

Compared with conventional machining methods, a Facing Lathe offers measurable operational advantages.

Maintenance Tips for Long-Term Performance

Proper maintenance helps maximize machine life and machining accuracy.

Recommended practices include:

· Lubricate guideways regularly.

· Inspect spindle bearings periodically.

· Monitor coolant quality.

· Check hydraulic systems.

· Calibrate machine geometry.

· Replace worn cutting tools promptly.

· Clean chips after every production shift.

Routine preventive maintenance minimizes downtime and extends equipment life.

Future Trends in Facing Lathe Technology

Manufacturing is becoming increasingly digital and automated.

Modern Facing Lathes are evolving with features such as:

· Smart CNC monitoring

· Predictive maintenance

· Remote diagnostics

· IoT connectivity

· Energy-efficient servo systems

· Automated tool management

· AI-assisted machining optimization

These technologies help manufacturers improve machine utilization and overall production efficiency.

Frequently Asked Questions (FAQ)

What is a Facing Lathe used for?

A Facing Lathe is primarily used for machining large-diameter, short-length workpieces such as flanges, pressure vessel ends, rollers, and heavy industrial components.

How is a Facing Lathe different from a conventional lathe?

A Facing Lathe offers higher rigidity, greater spindle torque, and a machine structure specifically designed for oversized workpieces, making it more suitable for heavy-duty machining.

Which industries commonly use Facing Lathes?

Oil & gas, power generation, shipbuilding, steel manufacturing, mining, heavy equipment, and pressure vessel fabrication are among the primary industries.

What materials can a Facing Lathe machine?

It can machine carbon steel, alloy steel, stainless steel, cast iron, aluminum alloys, copper alloys, titanium, and other engineering metals.

What factors should I consider before purchasing a Facing Lathe?

Important considerations include maximum swing diameter, spindle power, spindle torque, CNC controller, guideway design, tooling capacity, machining accuracy, and automation compatibility.

Conclusion

A Facing Lathe is the preferred solution for precision machining of large-diameter workpieces across heavy industries. Its robust construction, high spindle torque, exceptional rigidity, and superior machining accuracy make it ideal for demanding applications where conventional lathes fall short.

Whether producing pipe flanges, pressure vessel components, steel mill rollers, or heavy industrial equipment, investing in the right Facing Lathe can significantly improve productivity, reduce operating costs, and ensure consistent machining quality.
