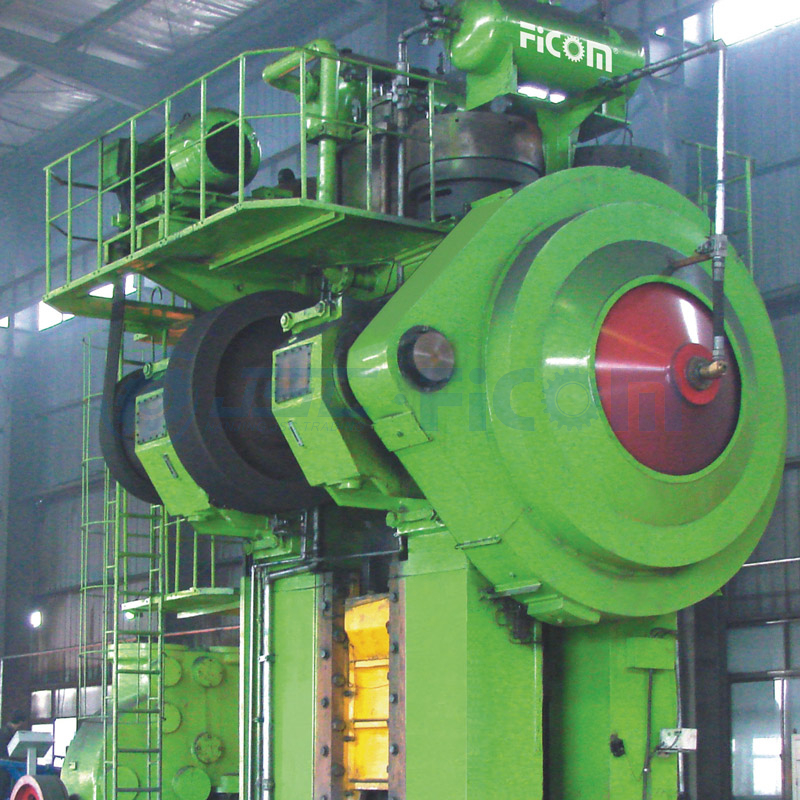

FP/MP High Speed Forging Press

High production efficiency molds built to last; High precision forging stable qualities; Absolute safety for both operator and machine; Unique design in compliance with environmental protection standars; Easy service and maintenance easy operation; Wide range of applications for iron, aluminum, copper and titanium alloy.
Availability:
Quantity:
  • FP/MP

  • FICOM

Overview



FP


Technical Parameters
Model No. Unit FP-400 FP-630 FP-1000 MP-1600 MP-2500 MP-4000 MP-5000 MP-6300
nominal blow force Kn 4000 6300 10000 16000 25000 40000 50000 63000
slider maximum travel mm 180 200 250 280 320 360 400 450
slider adjust volume mm 8 8 8 14 18 28 32 35
travel frequency times/min 100 85 80 75 70 55 45 35

maximum clamping

height

mm 370 250 460 875 1000 1110 1316 1372
slider size mm

600

×600

660

×690

950

×830

960

×1050

1000

×1100

1340

×1730

1550

×1875

1800

×1925

table size mm

780

×850

780

×1000

1120

×1050

1070

×1300

1150

×1250

1490

×2060

1570

×2250

1840

×2350

main motor power Kw 37 45 80 95 132 250 280 355
