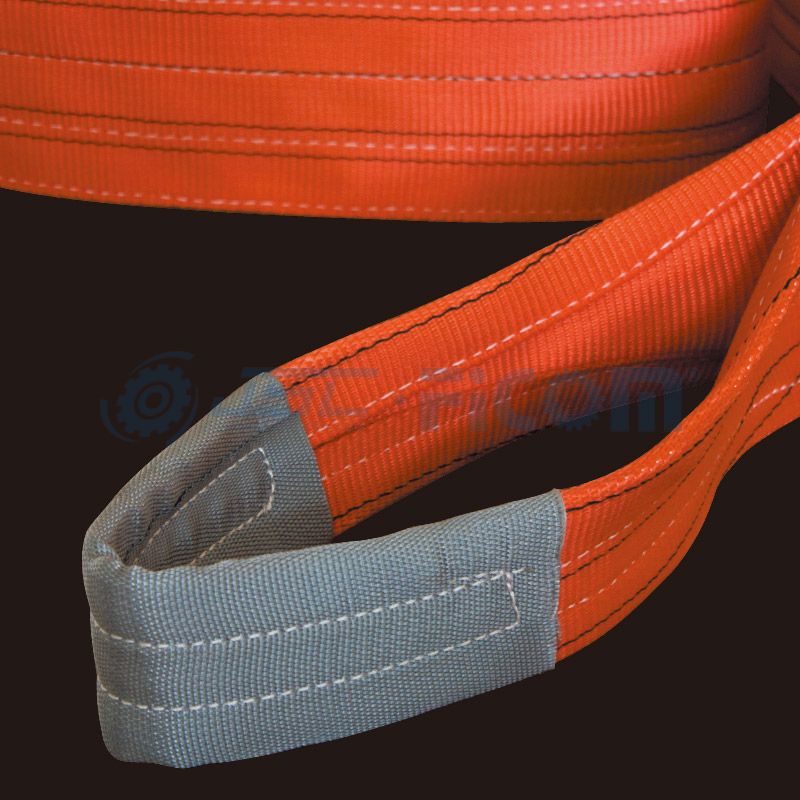

Eye Type Flat Webbing Sing Wit Capacity Stripes, Item Code: 200###

Made from polyester (PES), according to EN 1492-1, from B2, with reinforced eyes, with capacity label.
Material: 100% high-strength polyester yarm.
Duplex construction.
Low elongation.
Each stripe is equal to 1 ton capacity.
Safety factor: 7:1.
Length available: 1m-10m.

Quantity:
  • 200###
  • FICOM
Overview

77A

Item

Code

Webbing

Width

(mm)


Colourcoded

Accoring to

En 1492-1

Working Load Limit With 1 Webbing Slings Working Load Limit With 2 Webbing Slings

Straight

Lift

Choked

Lift

β

Straight

Lift

up to 45°

Choked

Lift

up to 45°

Straight

Lift

up to

45-60°

Choked

Lift

up to

45-60°

0-7° 7-45° 45-60°
00001 00002 00003 00004 00005 00006 00007 00008 00009
1.0 0.8 2.0 1.4 1.0 1.4 1.12 1.0 0.8
200010 30 WLL1T 1,000 800 2,000 1,400 1,000 1,400 1,120 1,000 800
200020 60 WLL2T 2,000 1,600 4,000 2,800 2,000 2,800 2,240 2,000 1,600
200030 90 WLL3T 3,000 2,400 6,000 4,200 3,000 4,200 3,360 3,000 2,400
200040 120 WLL4T 4,000 3,200 8,000 5,600 4,000 5,600 4,480 4,000 3,200
200050 150 WLL5T 5,000 4,000 10,000 7,000 5,000 7,000 5,600 5,000 4,000
200060 180 WLL6T 6,000 4,800 12,000 8,400 6,000 8,400 6,720 6,000 4,800
200080 240 WLL8T 8,000 6,400 16,000 11,200 8,000 11,200 8,960 8,000 6,400
200100 300 WLL10T 10,000 8,000 20,000 14,000 10,000 14,000 11,200 10,000 8,000


Lifting Eye Types
77B1 77B2 1. Flat eye
77B3 77B4 2. Reversed eye
77B5 77B6 3. Folded eye 1/2 width from 1 side
77B7 77B8 4. Folded eye 1/2 width from 2 side
77B9 77B10 5. Folded eye 1/3 width


Physical Information Chart

Polyester
Elongation at breaking force ca. 12%
Elongation at WLL CA. 3%
Elongation0 resistance in wet condition 100%
Compared wear0resistance 80
Specific weight 1.38


Chemical Resistance Information Chart
Material Acids Alkalis Oils Organic Solvents Water and Seawater Ethers Aldehydes Alcohols
Polyester ok no ok ok ok no no ok
Cautions


Do not exceed Working Load Limitied.

Prevent shock-loading.

When selecting a sling it is very important consider the angles at which the sling will be used.

Sling are subject to cutting when lifting items with sharp edges.In this case always use wear sleeves.

Do not use a damaged sling.

Never drag s sling from underneath a load that is resting on it.

Chemical active environents can effect the is strength of slings.

Operating temperrature range: -40°C to +100°C.

Inspect slings weekly or more frequently dependingon sling use.

Always store slings in a cool dry and dark place when they are not in use for prolonged penriods.

Always read and understand the operating instructions before us.
