Europe Type Automatically Duct Line 8

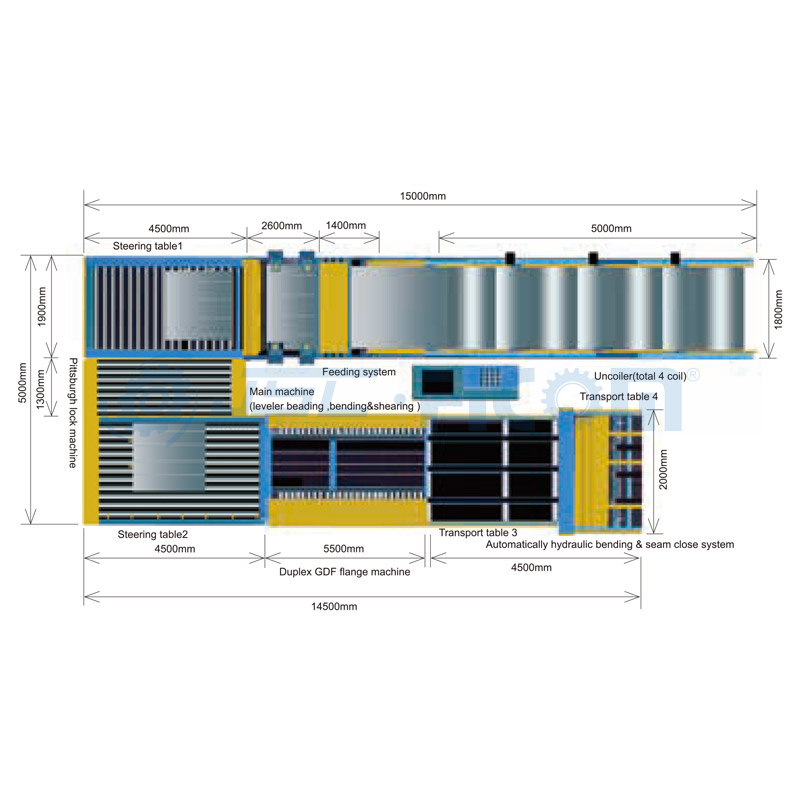

Struture and layout of the entire pipeline reasonable. was “ Z ” or ” U ” - type distribution.
Modular design can be different functions need to choose a flexible combination of modules.
Can automatically implement the following functions: sheet Cut-length, 4 pcs duct manufacture, "L ", "U" "口" Duct.
Autmaucally finish GDF flange and Pittsburgh-lock male&female.
Automatically feed material&finish beading.
Coil Straight, automatically notching.
With automatically seam close.
Availability:
Quantity:
  • DAL-8

  • FICOM

Overview

Compared Automatic GDF duct flange 7 lines, Automatic duct flange 8 lines is only add the pittsburghlock automatically seam close,  The customer can choose base on their require.


Specifications:

  • Coil Thickness: 0.4-1.2mm

  • Part Width: 150-1300mm. 1500mm options

  • Part Length Tolerance: ±0.5mm

  • Diagonal Tolerance:  ±0.8mm

  • Processing Speed: Up to 18M/min

  • Driven: Hydrulic drive

  • Power: 32KW

  • Beading Section: Satandard

  • Notching and hole Punching: FICom

  • Suitable for GDF, TDC2, Snop lock and Pittsburgh lock

  • CNC Controls: Japan Mistsbishi


05B

Technical Parameters
Model

Compact

Line Ⅰ

Compact

Line Ⅱ

Compact

Line Ⅲ

Compact

Line Ⅲ(B)

Auto

Line Ⅳ

Auto

Line Ⅴ

Auto

Line Ⅵ

Auto

Line Ⅶ

Auto

Line Ⅷ

Decoiler

Straightening &

beading

Punching

Cross-tie hole








Punching &

Notching

Duplex Drive Cleat

Forming








SHearing
Folding


Automotion

Pittsburgh Lock






Duplex

Pittsburgh Lock








Conveyer






Duplex TDF Flanger





Duplex GDF Flanger







Hydraulic Folder





Foldseamer
