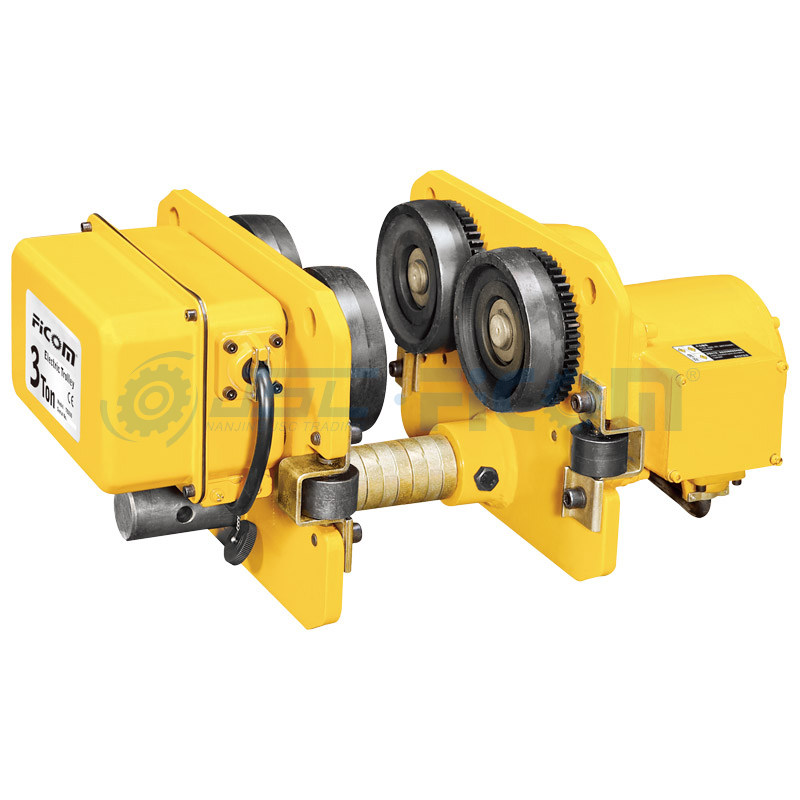

Electric Trolley Model:T (Capacity: 0.5-10Ton)

Compact, robust framewith low overall height.
Motor protected to IP 54 against dust and spray water
Wheels manufactured from fracture-proof steel
Smooth running due to machined surfaced and ball bearing.Cambered profile suitable for parallel and inclined beam profiles.
Aniti-tilt and anti-drop devices as standard.
Easy adjusted to file to a wide range of beam widths and profiles due to thnreaded spindles.
Dual speed model,and double axle type trolley are available, contact with us for details if request.

Quantity:
  • T
  • FICOM
Overview

Capacity: 0.5-10Ton

39

Specially recommended for loads over 500KG,for transporting over long distance and /or when used frequently.

Suitable for almost all hoist with couping rings.


Technical · Size Specification
Capacity

(t)



Model



Travel

Speed

(m/)


Motor

Power

(Kw)


Beam Flange

Width

(mm)

Size Dimension (mm)

Min. Radius Curve

(m)


Net

Weight

(Kg)


W U R

T

0.5 T0.5 11 or 21 0.4 68-130 315 212 142 231 0.8 41
1 T01 11 or 21 0.4 68-130 315 212 142 231 0.8 42
2 T02 11 or 21 0.4 82-153 325 220 142 231 0.9 49
3 T03 11 or 21 0.75 82-153 340 250 142 231 1.0 61
5 T05 11 or 21 0.75 100-178 400 291 142 231 1.5 83
7.5 T7.5 11 or 21 0.75 150-229 400 291 142 231 1.8 89
10 T10 11 or 21 0.75 150-220 500 371 142 231 2.5 140
