Electric Chain Hoist

Suspension Type Hoist
Electric With Trolley
Low Headroom Hoist
Single Phase Hoist
Stage Hoist
Electric Trolley

Quantity:
  • STD
  • FICOM
Overview

Electric-chain-hoist

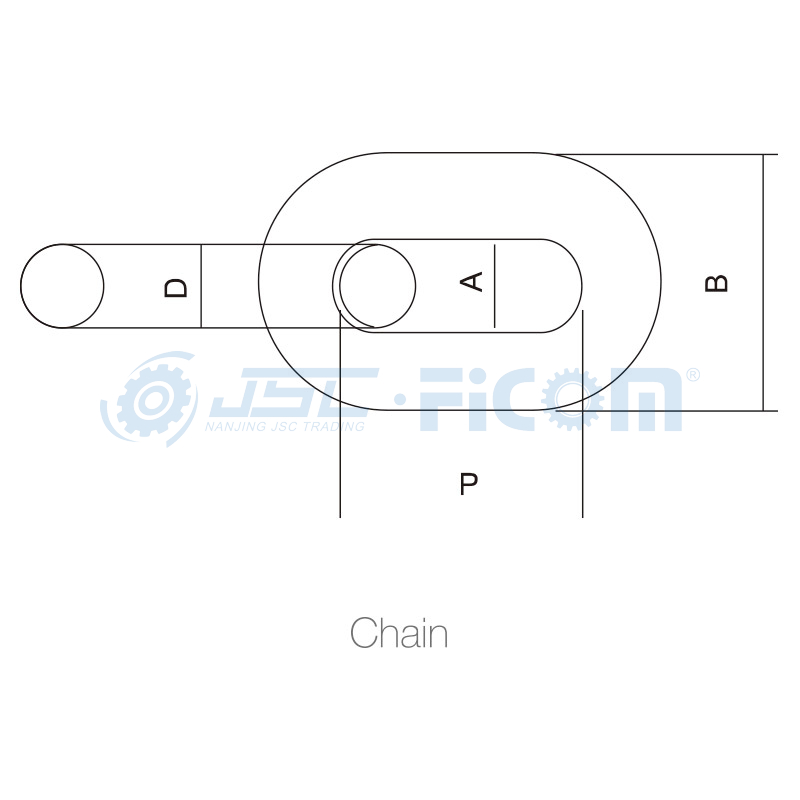

Chain

Electric-chain-hoist-5

Applicable

Type

Diameter

(mm) D

Inside Length

(mm) P

Inside Width

(mm) A

Outside Width

(mm) B

Work Load

(kg)

Guaranteed Load

(KN)

Break Load

(kn)

C005S 6.3 19 7.9 22 1120 27 47
C010L
C010S 7.1 21 8.9 25 1600 37 61.6
C020L
C020S 10.0 30 12.5 35 3200 76 125
C030L
C030S 11.2 34 14 39 3800 92 154
C050S
C075S
C100L
C150S
C200S
C250S
C300S
C350S
C500S


Hook

Electric-chain-hoist-6

Type Load (T) T B A B C D E G
HK 0.5 T B 27 18 25 17 35 28
1 T B 34 24 30 24 42 32
2 T B 46 29 39 30 49 40
3 T B 56 35 49 34 59 48
5 T B 67 43 57 44 60 48
7.5 T B 82 55 80 48 85 80
10 T B 82 55 80 48 85 80
15 T B 110 78 120 80 120 96
20,25 T B 142 95 155 98 150 115

T-uper hool/B-lower hook

Hool:It is forging with perfect strength that is hard to break.The operation safety of the lower hook is ensured by its360 degrees rotation and safety tongue piece.


Standard Fittings With Electric Chain Hoist

未标题-1

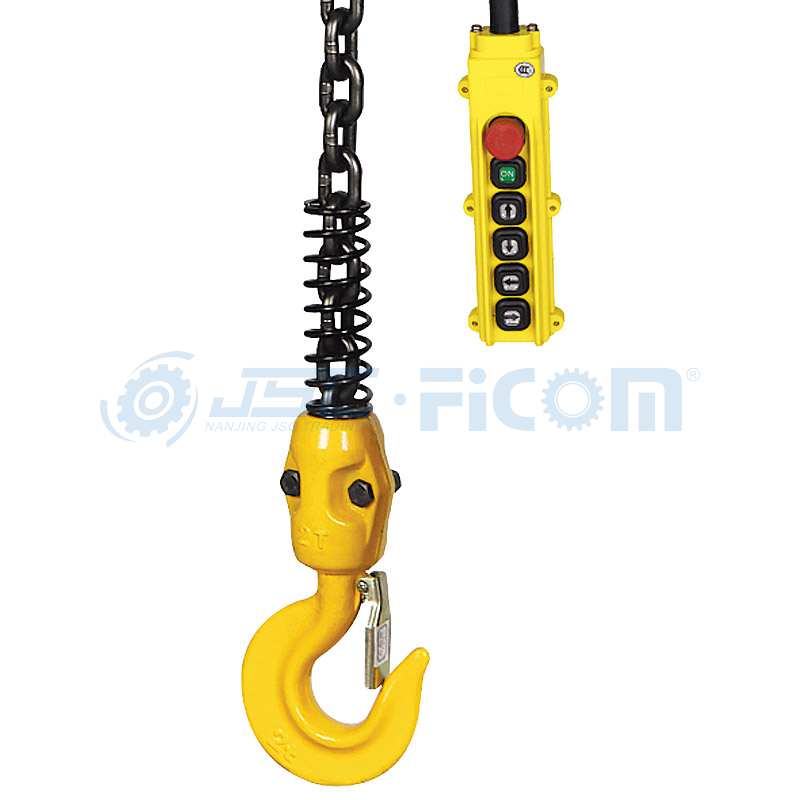

Electric chain hoist model STD (with suspension hook) or STD-T(with integrated trolley)

The STD series is a range of high quality products for professional applications.They are highly efficient and engineered for a long working life.The hoists are composed of three main component parts which makes service easy and inexpensive.


Electric Chain Hoist Outline
Rated Capacity 250kgs to 50t for Single speed & Dual speed
Power Voltage Single voltage 220V-690V, 50/60Hz
Dual voltage-220V/440V, 220V/380V, 230V/460V
Control Voltage 24V, 26V, 48V
Working Group M4, M5 (ISO Standard)/1Am, 2m(FEM Standard)
Motor Insulation Class F
Protection IP54 for Hoist body - IP54, IP54 for Push button control
Suspension Types Hook, manual trolley, electric trolley
Working Temperature -20℃ to 40℃(-4 to 104℉)
Working Humidity 85% RH or less


Features

· Classification 1 Am

· The standard version somes with direct control

· 1 year warranty(excluding wear parts)as well as a lifetime lubricated gear box

· Duty cycle 40% at one operating speed

· The heavy duty squirrel cage mootor has an adjustable spring pressure brake that holds the load secure even is the event of a power failure

· Motor protected toIP 54, insulation class F.

· The 5-pocket load chain sheave,manufactured from wear resistant case hardening steel,is matched perfectly to the load chain to guarantee smooth and chain motion.

· The assembly of component parts result in a low overall height(UP TO 3000kg only one chain fall)

· The standard,oil bath lubricated planetary gearbox is particularly smooth running

· Forged suspension and load hooks,manufactured from non-aging,high alloy tempering steel,yield under overload instead of breaking.

· The standard case hardened and FEC chain is matched perfactly to the load chain to guarantee smooth and precise chain motion

· All requirments of national and international standards and regulations are fulfilled
