Electric Chain Hoist Model: STD-ST/LT (Capacity : 0.5 to 5Ton,Single Speed)

Three meters of control cable as standard accompanies.
Optional length of lift, push button cord and control cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers are available as option if your lift is more than capacity of the standard container volume.

Quantity:
  • STD-ST/LT
  • FICOM
Overview

Capacity: 0.5 to 5Ton,Single Speed

28

Technical Parameters

Capacity

(t)

Model

STD
ST

Lifting

Speed

(m/min)

Motor

Power

(Kw)

No. of

Chai

Chain Size

Travel

Speed

(m/min)

Motor

Power

(Kw)

Beamwideth

(mm)

Min.

Radius

Curve (m)

N.w of

Standard

3m lift

500kg STD-0.5-01ST 7.8 0.8 1 6.3×19 11 or 21 0.4 68-130 0.8 88
1 STD-01-01ST 6.6 1.5 1 7.1×21 11 or 21 0.4 68-130 0.8 103
STD-01-02LT 3.3 0.8 2 6.3×19 93
2
STD-02-01ST 6.6 3.0 1 10×30 11 or 21 0.4 82-153 0.9 164
STD-02-02LT 3.3 1.5 2 7.1×21 122
3
STD-03-01ST 5.4 3.0 1 10×30 11 or 21 0.75 82-153 1 176
STD-03-02LT 4.4 3.0 2 7.1×21 183
STD-03-03LT 2.2 1.5 3 11.2×34 192
5 STD-05-02ST 2.7 3.0 2 11.2×21 11 or 21 0.75 100-178 1.8 234

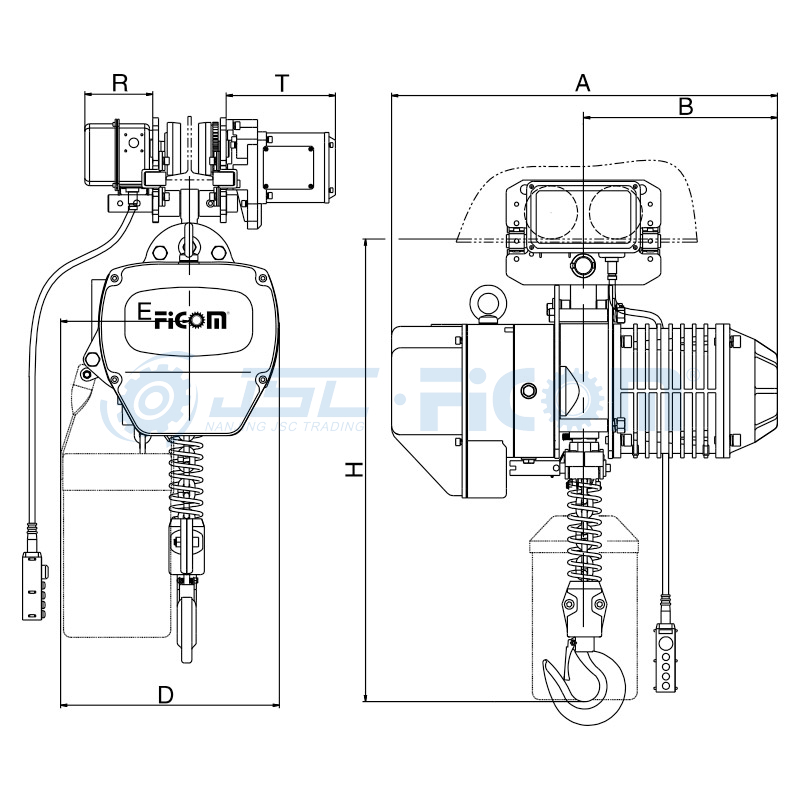

Size Specification (mm)

28-5

Model H A B D E

STD-0.5-01ST

635 460 230 288 178

STD-01-01ST

650 520 260 300 176

STD-01-02LT

695 460 230 288 205

STD-02-01ST

770 615 295 430 265

STD-02-02LT

815 520 260 300 236

STD-03-01ST

830 615 295 430 265

STD-03-02LT

930 615 295 430 320

STD-03-03LT

940 520 260 350 205
STD-05-02ST 1015 615 295 430 325
