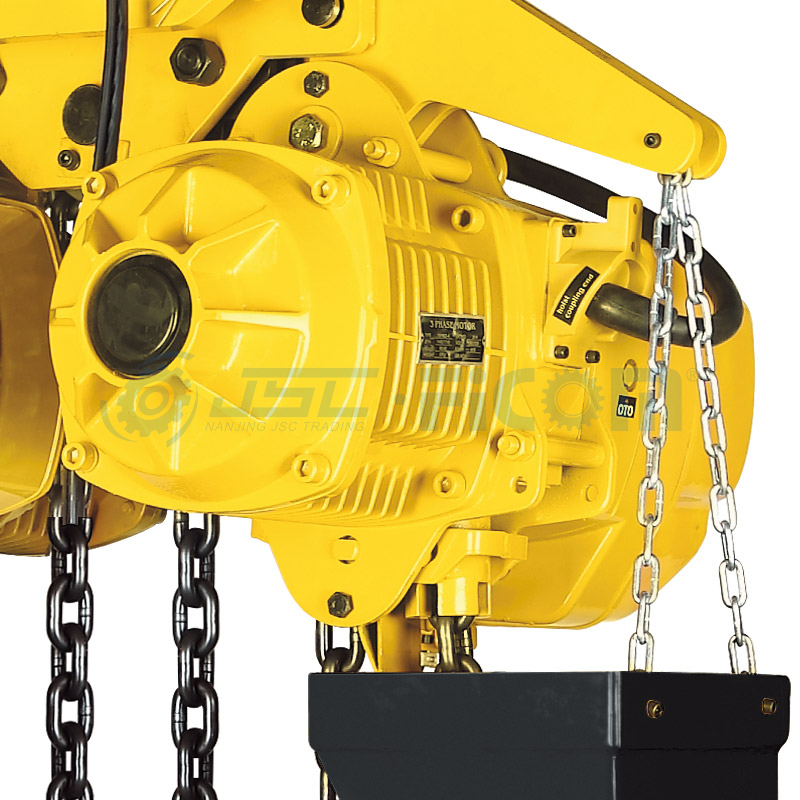

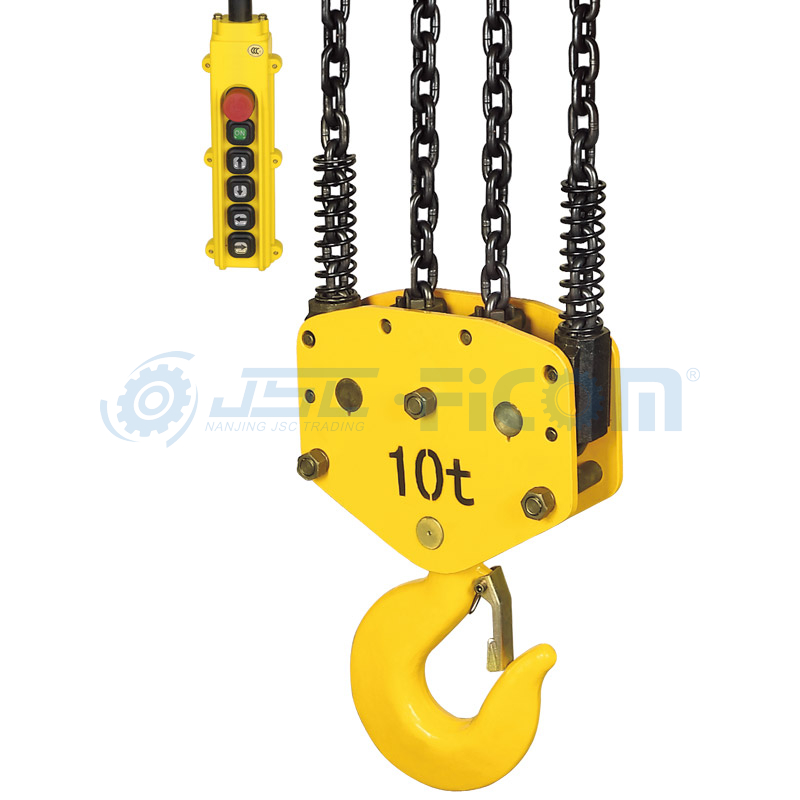

Electric Chain Hoist Model: STD-ST/DT (Large Capacity : 7.5 to 10Ton)

Three meters of control cable as standard accompanies.
Optional length of lift, push button cord and control cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers are available as option if your lift is more than capacity of the standard container volume.

Quantity:
  • STD-ST/DT
  • FICOM
Overview

Large Capacity : 7.5 to 10Ton

32

Technical Parameters

Capacity

(t)

Model

STD
Trolley

Lifting

Speed

(m/min)

Motor

Power

(Kw)

No. of

Chai

Chain Size

Travel

Speed

(m/min)

Motor

Power

(Kw)

Beamwideth

(mm)

Min.

Radius

Curve (m)

N.w of

Standard

3m lift

7.5 STD-7.5-03ST 1.8 3.0 3 11.2×34 11 or 21 0.75 150-220 1.8 280
STD-7.5-03DT 1.8/0.6 3.0/1.0 3 11.2×34 20/5 0.75/0.18 150-220 1.8 319
10
STD-10-4ST 2.7 3.0/×2 4 11.2×34 11 or 21 0.75 150-220 2.5 440
STD-10-4DT 2.7/0.9 3.0×2/1.0×2 4 11.2×34 20/5 0.75/0.18 150-220 2.5 520


Size Specification (mm)

32-6

Model H A B D E

STD-7.5-03ST

1200 615 295 505 320

STD-7.5-03DT

1200 670 313 505 320

STD-10-4ST

1190 630 315 890 445

STD-10-4DT

1190 670 388 890 445
