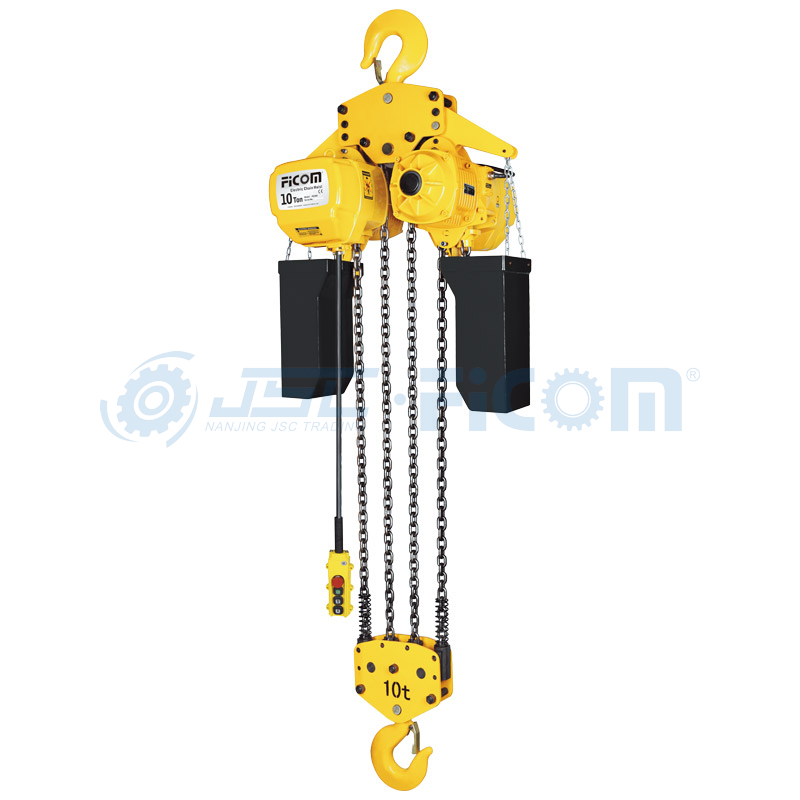

Electric Chain Hoist Model: STD (Large Capacity: 7.5 to 10Ton)

Three meters of control cable as standard accompanies.
Optional length of lift, push button cord and control cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers are available as option if your lift is more than capacity of the standard container volume.

Quantity:
  • STD
  • FICOM
Overview

Large Capacity: 7.5 to 10Ton

31

Technical Parameters

Capacity

(T)

Model


Lifting Speed

(m/min)

Motor Power

(Kw)

No. of Chain


Chain Size


Net Weight

(Kg)

7.5 STD-7.5-03S 1.8 3.0 3 11.2×34 176
STD-7.5-03D 1.8/0.6 3.0/1.0 3 11.2×34 215
10
STD-10-4S 2.7 3.0×2 4 11.2×34 300
STD-10-4D 2.7/0.9 3.0×2/1.0×2 4 11.2×34 380


Size Specification (mm)

31-5

Model H A B D E
STD-7.5-03S 1200 615 295 505 320
STD-7.5-03D 1200 670 313 505 320
STD-10-4S 1400 630 315 890 445
STD-10-4D 1400 670 388 890 445
