Three meters of control cable as standard accompanies.
Optional length of lift, push button cord and control cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers as standard
Dual speed type hoist are avaible,please contact with us if request.
These hoist are recomand to coupled used with a double girder trolley.Please contact with us for details.
Quantity: | |
---|---|

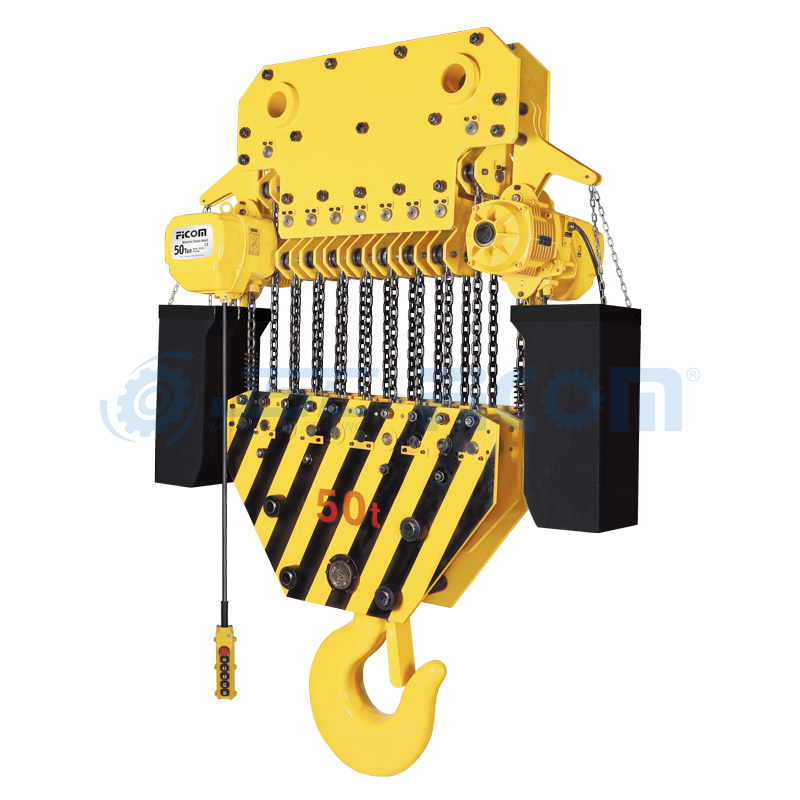

Large Capacity: 30 to 50 Ton
Capacity (t) | Model | Lifting Speed (m/min) | Motor Power (Kw) | No. of Chai | Chain Size |
30 | STD-30-12S | 0.9 | 3.0×2 | 3 | 11.2×34 |
35 | STD-35-14S | 0.75 | 3.0×2 | 3 | 11.2×34 |
50 | STD-50-20S | 0.55 | 3.0×2 | 4 | 11.2×34 |
Model | A | B | C | D | E | F | H | J | U |
STD-30-12S | 630 | 88 | 95 | 1260 | 630 | 115 | 1350 | 70 | 1020 |
STD-35-14S | 630 | 280 | 160 | 1610 | 755 | 100 | 1745 | 80 | 660 |
STD-50-20S | 630 | 280 | 160 | 1815 | 855 | 1610 | 1965 | 95 | 760 |
