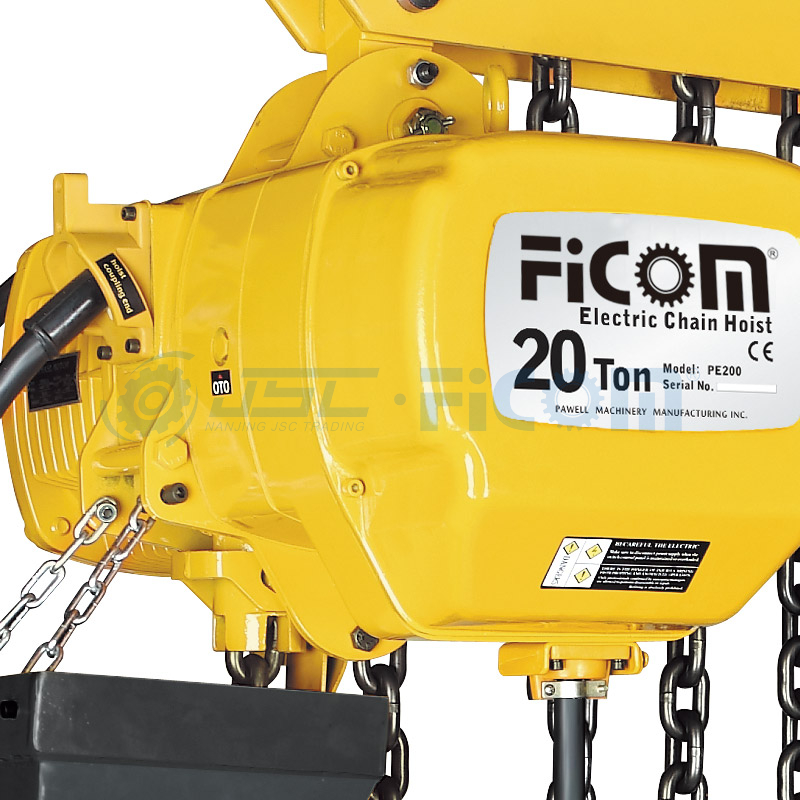

Electric Chain Hoist Model: STD (Large Capacity: 15 to 25 Ton)

Three meters of control cable as standard accompanies.
Optional length of lift, push button cord and control cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.

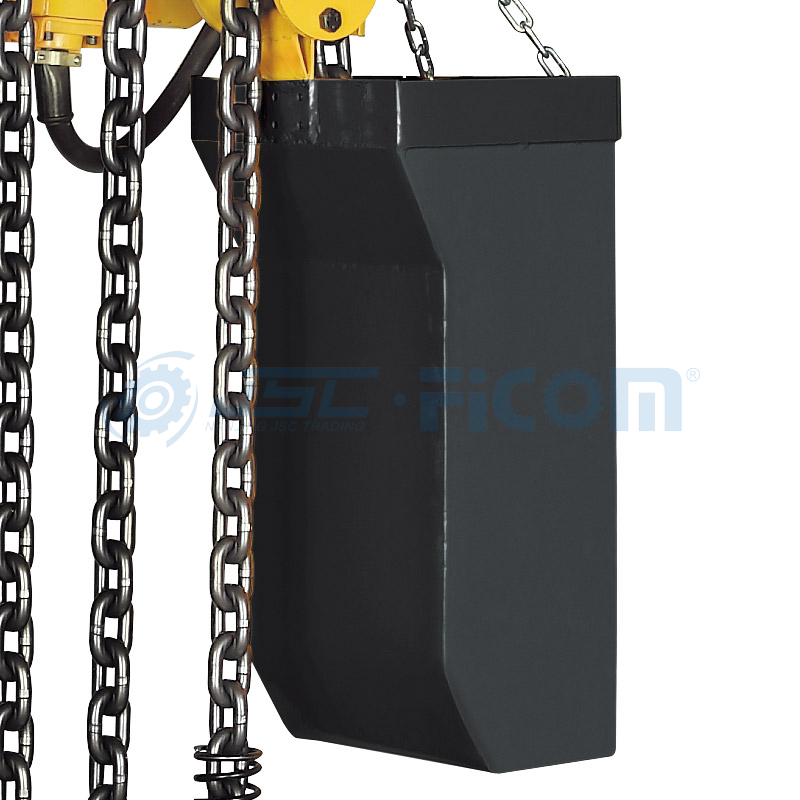

Steel chain containers as standard
Dual speed type hoist are avaible,please contact with us if request.
These hoist are recomand to coupled used with a double girder trolley.Please contact with us for details.

Quantity:
  • STD
  • FICOM
Overview

Large Capacity: 15 to 25 Ton

33

Technical Parameters

Capacity

(T)

Model


Lifting Speed

(m/min)

Motor Power

(Kw)

No. of Chain


Chain Size


Net Weight

(Kg)

15 STD-15-06S 1.8 3.0×2 6 11.2×34 382
20 STD-20-08S 1.4 3.0×2 8 11.2×34 482
25
STD-25-10S 1.1 3.0×2 10 11.2×34 503


Size Specification (mm)

33-6

Model H A B D E F
L
STD-15-06S 1260 560 1070 54 630 88 9
STD-20-08S 1320 740 1260 70 630 88 115
STD-25-08S 1340 930 1460 70 630 88 115
